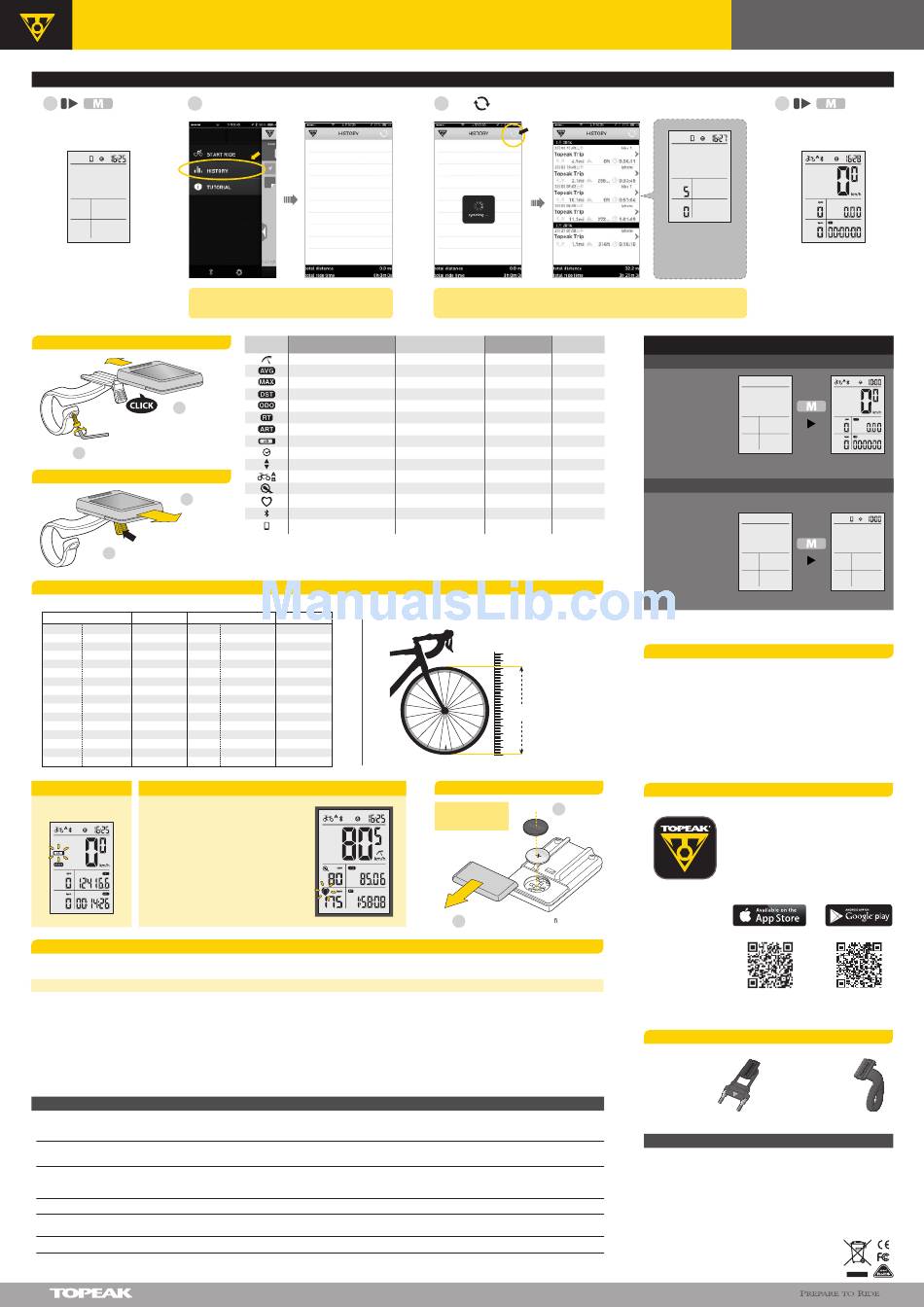

Topeak PanoComputer Wireless User Manual page 2

TRANSMITTING RIDE DATA TO PANOBIKE APP (COMPUTER MODE ONLY)
1 2
On Smart Device, open Topeak PanoBike App and
On computer
tap "History" icon
for 6 sec to enter REMOTE
MONITOR MODE.
The computer is ready to
transmit your riding data.
Turn-on Bluetooth® on your smart device first.
HOW TO INSTALL PANOCOMPUTER
2
Install the
computer
3mm Allen Key
1
Install the bracket on the handlebar.
HOW TO RELEASE PANOCOMPUTER
2
Release the
computer
1
Press the lever
DETERMINE WHEEL CIRCUMFERENCE
METHOD A) CHOOSE FROM WHEEL CIRCUMFERENCE DATA BELOW
Tire Size Designation Wheel Circumference Tire Size Designation
40-305 16x1.50 1185
47-305 16x1.75 1195 20-571
34-305 16x2.00 1245 23-571
40-355 18x1.50 1340 25-571
47-355 18x1.75 1350 57-584
40-406 20x1.50 1490 60-584
47-406 20x1.75 1515
47-507 24x1.75 1890 20-622
50-507 24x2.00 1925 23-622
40-559 26x1.50 2010 25-622
47-559 26x1.75 2023 28-622
26x1.95 30-622
50-559 2050
54-559 26x2.10 2068 32-622
56-559 26x2.20 2083 35-622
38-622 700x38C 2180 54-622
56-622 29x2.00 2272 57-622
LOW BATTERY
Battery < 2.7 V
For your safety, PanoComputer has a Max
Heart Rate Alarm function. When Heart Rate
exceed Max limit, the Heart icon will be shown
in black. Set Max Heart Rate limit in Topeak
PanoBike App.
* "HEART RATE" Requires optional PanoBike
Heart Rate Monitor.
IMPORTANT NOTE
1. CLEAR ALL DATA SETTING will clear all stored data.
2. CLEAR ALL DATA SETTING is required during FIRST SETUP or BATTERY CHANGE.
3. All data will be cleared when replacing the battery. Before changing battery, write down stored data ODO and ART.
4. The TOPEAK PANOCOMPUTER can be used in the rain but should not be intentionally submerged underwater.
5. Do not leave the computer exposed to direct sunlight when not riding the bicycle.
6. Do not disassemble the computer body or its accessories.
7. Check relative positions and gap between sensor and magnet periodically.
8. Do not use harsh chemicals to clean the computer body or its accessories.
9. Remember to pay attention to the road while riding.
10. Check the computer mount before each ride to ensure a secure connection.
11. Dispose of used batteries according to local regulations.
TROUBLE SHOOTING
Check the following before bringing unit in for repair.
PROBLEM CHECK ITEMS
No display
1. Is the battery exhausted?
2. Is the battery installed correctly?
No current
1. Is it in setup mode?
speed or
2. Are the relative positions and gap between sensor and magnet correct?
incorrect data
3. Is the wheel circumference correct?
Irregular display
Did you leave the computer in direct sunlight when
LCD is black
not riding the bicycle for a long while?
Display is slow Is the temperature below -10˚C (14˚F)?
No current 1. Is the chest strap being worn correctly?
heart rate data 2. Is the battery of heart rate monitor exhausted?
PanoComputer
(Using English version as an example)
DISPLAY FUNCTION
Current Speed
Average Speed
Maximum Speed
Trip Distance
Accumulated Distance
Ride Time
Accumulated Ride Time
Low Battery Indicator
12H/ 24H clock
Pace Indicator
Bike A and Bike B
Current Cadence *
Current Heart Rate *
Bluetooth® System
SmartPhone Connected
* "Current Cadence" Requires optional PanoBike Speed & Cadence Sensor.
* "Current Heart Rate" Requires optional PanoBike Heart Rate Monitor.
* Wheel circumference default: 2235 mm
METHOD B) MEASURE WHEEL CIRCUMFERENCE
Wheel Circumference
650C Tubular 1920
650x20C 1938
650x23C 1944
650x25C 1952
27.5x2.25(650B) 2217
27.5x2.35(650B) 2230
700C Tubular 2130
700x20C 2086
700x23C 2096
700x25C
2105
700x28C 2136
700x30C 2146
700x32C 2155
700x35C 2168
29x2.10 2288
29x2.25 2320
MAX HEART RATE ALARM
REMEDY
1. Replace the battery.
2. Make sure that the positive (+) pole of the battery is facing the battery cap.
1. Refer to the data setting procedure and complete the adjustment.
2. Refer to INSTALLATION and re-adjust correctly.
3. Refer to CIRCUMFERENCE SETTING and enter correct value.
Refer to "Clear All Data setting" and initiate the computer again.
Place the computer body in the shade to return to normal state.
The unit will return normal state when the temperature rises.
1. Make sure the position of chest strap is correct.
2. Replace the battery.
Wireless
3
Tap " " to transfer new ride data to Topeak PanoBike App.
NOTE: Any transmitted data deleted from smart device history cannot
be recalled from PanoComputer.
SPECIFICATIONS INCREMENTS ACCURACY
199 km/h, 199 mi/h 0.1 km/h or mi/h ± 1 %
± 0.1 %
199 km/h, 199 mi/h 0.1 km/h or mi/h
199 km/h, 199 mi/h ± 0.1 %
0.1 km/h or mi/h
0.00~9999.99 km or m 0.1 km or m ± 0.1 %
0.00~99999.9 km or m
0.1 km or m ± 0.1 %
0 : 00 : 00~99 : 59 : 59
1 Second ± 0.1 %
0000 : 00~9999 : 59 1 Minute ± 0.1 %
< 2.7 V
1 : 00 ~12 : 59 (12 H)
1 Minute ± 0.003 %
0 : 00 ~23 : 59 (24 H)
0~199 RPM
0~199 BPM
KM/ H:
Wheel Circumference
= mm x 3.14
mm x 3.14
CHANGING BATTERY
2
Change
Operation Time up to
360 the battery
hrs.
+
CR2032
-
1
Remove the Battery Cover rst
After the transmitting,
the current trip record
number will appear on
screen.
SLEEP MODE
in COMPUTER MODE
During non-riding
status, if no button is
touched for 10 minutes,
the computer will go
into Sleep Mode.
Please press "MODE" to
wake up the computer.
in REMOTE MONITOR MODE
During non-riding
status, if no Bluetooth®
signal is connected, the
computer will go into
Sleep Mode after 2
minutes. Please press
"MODE" to wake up
the computer.
SPECIFICATION
Tech: Bluetooth® Smart (BLE 4.0) super low energy technology
Mount: Handlebar Mount (ø 31.8 mm only)
Battery Lifetime (max.): 360 hours (1 hr/ day use) *
Battery: CR2032 x 1 pc (included)
Transmission Range: <10 meter (33 ft)
Waterproof: IPX 7
Operating temperature: -10°C ~ 50°C (14°F~122°F)
Weight: 30 g / 1.06 oz (computer only)
* Overall battery life is dependent on usage profile and battery condition.
TOPEAK PANOBIKE APP
The ultimate cycling performance app that utilizes your
smartphone's powerful Bluetooth® Smart capabilities and
transforms it into your bike computer, personal training
and health management device.
This app combines the functions of phone, cycle computer,
GPS, music player, camera, and heart rate monitor (requires
purchase of separate PanoBike Heart Rate Monitor) into
one program that allows you to have loads of fun on your
bike ride.
PanoComputer Syncs
with PanoBike App
only.
iOS 5 or above
(Download for Free)
OPTIONAL ACCESSORIES
RideCase Mount RX
Art No. TC1022
WARRANTY
2-year Warranty: All electronic and mechanical components against manufacturer defects only.
Batteries are not covered under any implied warranty.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned without a sales
receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if
the product is damaged due to user crash, abuse, system alteration, modification, or used in any way
not intended as described in this manual.
* The specifications and design are subject to change without notice.
Please contact your Topeak dealer with any questions.
For USA customer service, call: 1-800-250-3068
Website: www.topeak.com
Copyright © Topeak, Inc. 2014 M-TPB-C01-GB 04/14
User's Guide
4
for 6 sec to
return to COMPUTER MODE.
Android OS 4.3 or above
(Download for Free)
PanoComputer
Mount
Art No. TPB-CM01
