OPTIONAL ACCESSORIES
RedLite ™ II
Journey Trail TX Yoke
Journey DryBag
with SlideLock
Art No. TMS035B (Black)
TMS035W (White)
WARRANTY
2-year Warranty: All mechanical components against manufacturer defects only.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture.
All warranties will be void if the Journey Trailer or DryBag is damaged due to user abuse, system alteration, modi cation, or used in any way not intended as described in this
user's guide.
* The speci cations and design are subject to change without notice.
Please contact your Topeak dealer with any questions.
For USA customer service, call : 1-800-250-3068
www.topeak.com
Copyright © Topeak, Inc. 2018

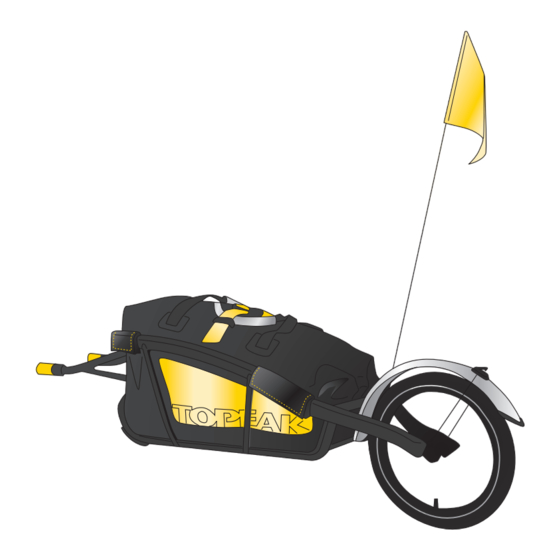

JOURNEY TRAILER TX AND DRYBAG
JOURNEY TRAILER TX AND DRYBAG
32 kgs/ 70 lbs
• Maximum Load:
65.3 L / 3980 ci
• Maximum Capacity:
• Please read all instructions before rst use.
Installation procedures follow in this manual.
Compatible with 12mm rear thru-axles under
180mm in length with 1, 1.5 or 1.75mm thread
pitch and Shimano® ALFINE 11 & 8, NEXUS
INTER-8 internal gear hubs.
(Optional hardware required. Purchase from
Topeak distributors or dealers near you.)
TTR-TX_M_EN_201809
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Topeak JOURNEY TRAILER TX
Summary of Contents for Topeak JOURNEY TRAILER TX
- Page 1 All warranties will be void if the Journey Trailer or DryBag is damaged due to user abuse, system alteration, modi cation, or used in any way not intended as described in this user's guide. * The speci cations and design are subject to change without notice. Please contact your Topeak dealer with any questions. For USA customer service, call : 1-800-250-3068 www.topeak.com Copyright ©...
-
Page 2: Maintenance Schedule
A. TRAILER FENDER AND WHEEL ASSEMBLY Your Journey Trailer should includes the following parts: MAINTENANCE SCHEDULE Optional and required parts Installation of Trailer Fender A1. Trailer Fender Part Service Interval Journey Trail TX Axle Kit-P10 Fender Check: Tightness Monthly Art no. TTR-TXAK-P10 Correct angle Tire clearance 180mm, M12x1.0... - Page 3 B. TRAILER YOKE ASSEMBLY C. MOUNTING TRAILER TO THE BIKE Thru-axle version Included washers Tapered washer 5mm Allen key Compatible with 12mm rear thru-axles under 180mm in length 5mm Allen key Recommended Torque 9-11 1 mm For thru-axle with Three thread pitches available : 1.0, 1.5 and 1.75 mm tapered washer 180mm 180mm, M12 x 1.0...
- Page 4 M12 x 1.5 M12 x 1.75 2. Compare with your thru-axle and choose the proper washers to add on Topeak thru-axle you have purchased as close to the length of your thru-axle as possible. Your thru-axle Allow 0~2 mm margin to t on your bike...
-
Page 5: Important Note
D. JOURNEY DRYBAG ASSEMBLY Internal Gear Hub version Included washers Compatible with Shimano® ALFINE 11, 8 and NEXUS INTER-8 Roll Click 1 mm STEP 1 Remove the Internal gear hub axle nuts from rear wheel and Install the Axle Nut Anchors Axle Nut Anchor Add proper width washers for the proper... -
Page 6: Important Notes
Align the rear wheel and trailer approximately 120 degrees (see inset 2. Topeak Trailer ts on bikes with 26", 700C or 29" wheels which with 12mm rear thru-axles under 180mm in length with 1, 1.5 or 1.75mm thread pitch 2. Make sure to park your bike and trailer on level ground. We do not diagram) and turn the front wheel approximately 90 degrees to the bike and Shimano®...
