DCR-DVD100/DVD100E
SERVICE MANUAL
Ver 1.1 2003. 12
Revision History
Revision History
How to use
How to use
Acrobat Reader
Acrobat Reader
Link
Link
SPECIFICATIONS
SPECIFICATIONS
SERVICE NOTE
SERVICE NOTE
DISASSEMBLY
DISASSEMBLY
• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987627341.pdf).
• Since a service is provided only for the MD-097 BLOCK ASSY (A-7111-651-A) and
not for the single MD-097 board, complete.
• Reference No. search on printed wiring boards is available.
On the MD-097, SS-174T and VC-307 board
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the MD-097, SS-174T and VC-307 board.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the MD-097,
SS-174T and VC-307 board are not shown.
The following pages are not shown.
Disassembly ...................................... Pages 2-24 to 2-26
Schematic diagram ........................... Pages 4-27 to 4-76
Printed wiring board .......................... Pages 4-95 to 4-102
Waveforms .......................................... Pages 4-105 to 4-106

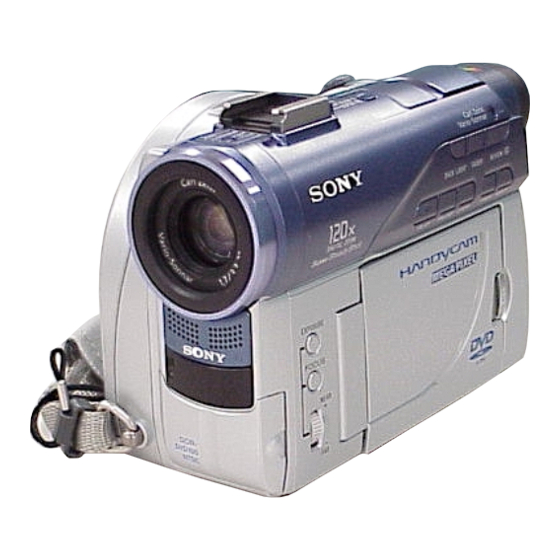

Photo: DCR-DVD100
BLOCK DIAGRAMS
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Mounted parts location ......................... Pages 4-109 to 4-111
Exploded views .................................... Pages 5-11 to 5-12
Electrical parts list ................................ Pages 5-16 to 5-30
Digital Video Camera Recorder
RMT-820
LEVEL
US Model
Canadian Model
DCR-DVD100
AEP Model
UK Model
East European Model
Hong Kong Model
Australian Model
DCR-DVD100E
E Model
DCR-DVD100/DVD100E
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
REPAIR PARTS LIST
2
