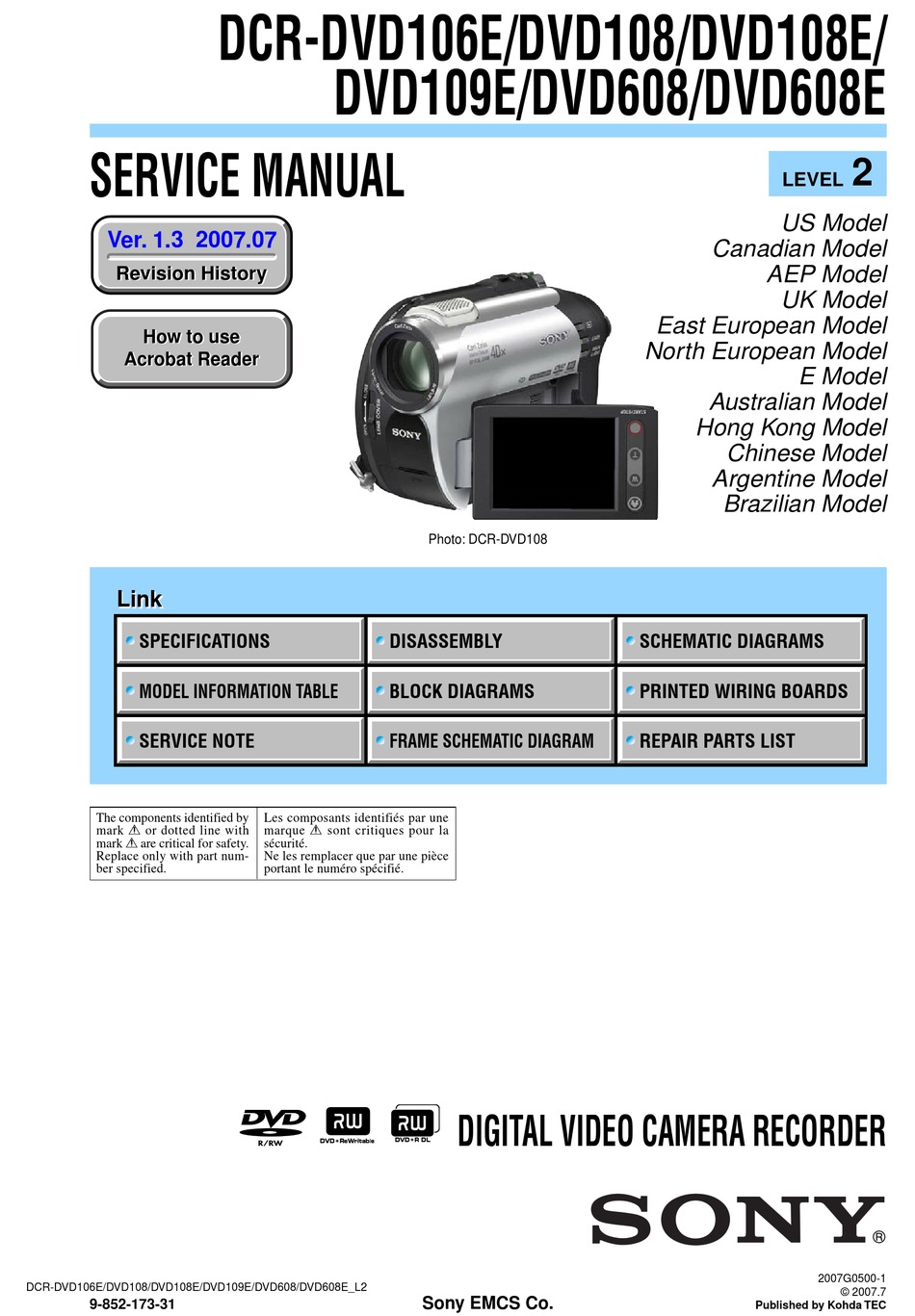

SERVICE MANUAL
Ver. 1.3 2007.07
Revision History
Revision History
How to use
How to use
Acrobat Reader
Acrobat Reader
Link
Link
SPECIFICATIONS
MODEL INFORMATION TABLE
SERVICE NOTE
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2
9-852-173-31
DCR-DVD106E/DVD108/DVD108E/
DVD109E/DVD608/DVD608E
DISASSEMBLY
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAM
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Photo: DCR-DVD108
DIGITAL VIDEO CAMERA RECORDER
Sony EMCS Co.
LEVEL
US Model
Canadian Model
AEP Model
UK Model
East European Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Argentine Model
Brazilian Model
SCHEMATIC DIAGRAMS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
Published by Kohda TEC
2
2007G0500-1
© 2007.7

Advertisement

Table of Contents
loading

Related Manuals for Sony DCR-DVD106E

Summary of Contents for Sony DCR-DVD106E

  • Page 1 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL VIDEO CAMERA RECORDER 2007G0500-1 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 © 2007.7 Sony EMCS Co. 9-852-173-31 Published by Kohda TEC...

  • Page 2: Specifications

    USB jack 0°C to +40°C (32°F to 104°F) DVD-RW/DVD+RW/DVD-R mini-B Storage temperature HQ: Approx. 20 min (DCR-DVD106E/DVD109E: output only) -20°C to +60°C (-4°F to +140°F) SP: Approx. 30 min Dimensions (Approx.) LP: Approx. 60 min LCD screen 48 × 29 × 81 (1 15/16 × 1 3/16 × 3 1/4 in.)

  • Page 3: Model Information Table

    Model information table Model DCR-DVD106E DCR-DVD108 DCR-DVD108E Destination AEP, UK, EE, NE US, CND, E, AR, BR Color system NTSC × × × 5.1ch recording Data CAM → PC copy PC → CAM × Model DCR-DVD109E DCR-DVD608 DCR-DVD608E Destination AEP, UK, EE, NE...
  • Page 4 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.

  • Page 5: Table Of Contents

    4-1. Frame Schematic Diagrams ············································· 4-1 4-2. Schematic Diagrams ························································ 4-3 4-3. Printed Wiring Boards ··················································· 4-29 4-4. Mounted Parts Location ················································ 4-43 REPAIR PARTS LIST 5-1. Exploded Views ······························································· 5-2 5-2. Electrical Parts List ························································· 5-9 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 — 5 —...

  • Page 6: Service Note

    1-2. TO TAKE OUT A DISC WHEN NOT EJECT (FORCE EJECT) 1 Peel off the jack cover assy and remote control window. 2 Insert the wire etc. in the hole and down the eject slider by it. Charge lever Eject slider Remote control window Hole Jack cover assy DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 7: Using Service Jig

    C : Corrected by customer Indicates the appropriate Refer to “1-4-3. Self-diagnosis Code Table”. H : Corrected by dealer step to be taken. E : Corrected by service E.g. engineer 31 ..Reload the tape. 32 ..Turn on power again. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 8 (IC5601 on the VC-483 board). Fault of writing to or erasing the flash Inspect the flash memory (IC2201 on the VC-483 board). (Note) memory Note: Refer to “1-3. DESTINATION DATA WRITE”, ADJ (9-852-173-51). DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 1-3E...

  • Page 9: Disassembly

    • When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped. pieces of gilt may be left inside) • When installing a connector, don’t press down at wire of connector. It is possible that a wire is snapped. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 10 To take out a disk when not eject (force eject)”. 2-7 (#2) 1-12 (#11) 2-4 (#11) 2-5 (#2) 1-11 (#2) 1-16 1 Cabinet (R) 1-13 Section 1-14 1-15 1-7 (#2) 1-17 1-4 (Claw) 1-8 (Pull) 1-3 (#2) 1-2 (Open) 1-6 (#2) 2-3 (#2) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 11 1 Upper Cabinet (1-1 to 1-2) 2 Cabinet L Assy (2-1 to 2-2) 3 Lens Block (3-1 to 3-5) 1-2 (#1) 2 Cabinet L Assy 1 Upper Cabinet HELP (Pull the Switch) 3-5 (#3) 3 Lens Block 2-2 (#11) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 12 Follow the disassembly in the numerical order given. 1 FP-574 Flexible Board (1-1 to 1-2) 2 VC-483 Board (2-1 to 2-3) 3 Mechanism Deck (3-1 to 3-3) 2 VC-483 Board 3 Mechanism Deck (#3) - 4 8 HELP 3-1 (#16) (#3) 1 FP-574 Flexible Board DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 13 2 MS-358 Board (2-1 to 2-5) 3 OC-001/CK-170 Board (3-1 to 3-4) 3-1 (#11) 3 OC-001/CK-170 HELP Board HELP (#11) (#11) - 3 5 3-4 (#11) (Claw) (#3) 2 MS-358 Board 1-2 (#11) 1-1 (#2) 1 Front Panel Block DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 14 Follow the disassembly in the numerical order given. 1 LCD Panel Block (1-1 to 1-6) 2 Hinge Assy (2-1 to 2-2) 2-1 (#11) HELP 2 Hinge Assy - 3 1 HELP 1-3 (Claw) 1 LCD Panel Block 1-1 (Turn) 1-2 (#2) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 2-6E...
  • Page 15 Mechanism deck flexible board Loud speaker Harness arrangement Cabinet (R) section CK-170 board Tape (A) OC-001 board Tape (P) Draw around the harness within this area. PD-314 Board Put neither the harness nor the tape in this area. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 HELP...
  • Page 16 2 Put the FP-573 flexible board on the 3 Fix hinge cover (M) and the panel hinge assy (M) hinge cover (M). with the screw. Screw Hinge cover (M) Hinge cover (M) Panel hinge assy (M) FP-625 flexible board DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 HELP...
  • Page 17 D lid may not to be closed. Screws In case of such discrepancy, loosen the screws on the hinge to eliminate the discrepancy of the D lid block, and then retighten the screws. Cabinet D Eject block block FP-569 flexible complete board M903 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 HELP...

  • Page 18: Block Diagrams

    3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/5) OVERALL BLOCK DIAGRAM (5/5) OVERALL BLOCK DIAGRAM (2/5) POWER BLOCK DIAGRAM (1/3) POWER BLOCK DIAGRAM (2/3) OVERALL BLOCK DIAGRAM (3/5) OVERALL BLOCK DIAGRAM (4/5) POWER BLOCK DIAGRAM (3/3) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 19 DIR1A, DIR1B, EN01 EMC_ADDR [0] - EMC_ADDR [15] MOTOR DRIVE FC_SENSE_OUT FC_RST FOCUS AE32 EMC_XCS [0] SENSOR AF10 EMC_CLK1_OUT ZM_SENSE_OUT ZM_RST XFLASH_RST ZOOM SENSOR THERMO_OUT LENS_TEMP_AD LENS TEMP AL35 SENSOR IR_SWITCH_OUT XNS_SW NIGHTSHOT XFLASH_RST PLUS XSYS_RST OVERALL (5/5) (PAGE 3-5) CAM_DD_ON DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 20: Overall Block Diagram (1/5)

    FGINI DETECT S5694 EJECT_DET EJECT_DET XMUTE0, XMUTE1 IC4401 EJECT DETECT DVD MECHA DRIVE DRV_SEL (10/17) Q1004 D5691 ACCS_LED ACCS_LED ACCESS DRIVE EJECT MOTOR DRIVE EJECT_DRV : VIDEO/AUDIO/SERVO SIGNAL M903 MOTOR UNIT : VIDEO/AUDIO SIGNAL (GEARD MOTOR) : SERVO SIGNAL DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 21: Overall Block Diagram (2/5)

    TP_L AN34 TOUCH TOUCH PANEL TP_SEL1 TP_SEL1 TP_R PANEL TP_BOT Q2101 TP_SEL2 TP SELECT Q6401, Q6402 SWITCH BL_H1 - BL_H3 BACKLIGHT – DRIVE Q3710 - Q3713 D6403 – D6405 (BACKLIGHT) LCD BACKLIGHT IC3702 CONTROL (1/2) (13/17) : VIDEO SIGNAL DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 22: Overall Block Diagram (3/5)

    XMS_IN XMS_IN OVERALL (5/5) (PAGE 3-5) XMS_ACC_LED MEMORY STICK MSX_BIO0 - MSX_BIO3 MSDATA0 - MSDATA3 MSDATA0 - MSDATA3 MSX_BS MS_BS MSBS AM31 MSX_CLK MS_SCLK MS_SCLK AR32 FP-574 FLEXIBLE BOARD CN1014 CN5741 USB_D± USB_D± D± Q1002 (USB) XVBUS_DET USB_VCC DETECT DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 23: Overall Block Diagram (4/5)

    CN6402 EP_4.6V, AU_4.6V, A_4.6V (16/17) Home HOME MT_5.0V, DRV_MT_5.0V EP_2.8V, D_2.8V, AU_2.8V, A_2.8V S001 2ND_S/S_SW DRV_MT_4.3V START/STOP D_2.5V, A_2.5V D_1.2V, A_1.2V S003 2ND_ZOOM (W) DRV_A_3.9V D_1.8V, D_1.8V (SD_1.8V) (ZOOM) 2ND_ZOOM (T) D_3.3V S002 CAM_-7.5V CAM_15V EP_8.5V VOUT LANC_DC EVER_3.0V DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 24: Power Block Diagram (1/3)

    IN7 H10 8.5V REG EP_4.6V XLANC_POWER_ON MT_5.0V P07_INT11 WAKEUP XLANC_ON VCONT5 H7 EP_2.8V XCTL2 POWER (3/3) VOUT5 K7 D_2.8V (PAGE 3-8) BATT_IN D_2.5V P70_INT00 VTR_DD_ON VCONT6 L7 P20_PPG00 F2 STBY6 1.8/3VCTRL P61_PPG11 C11 VOUT6 J6 CLAMP_ON P22 G2 REG6CTL J5 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 25: Power Block Diagram (2/3)

    L4403 DRV_MT_4.3V DRV_MT_4.3V DRV_MT_4.3V DRIVE (10/17) L4404 DRV_MT_5.0V DRV_MT_5.0V DRV_MT_5.0V FB4104 FB4103 CN4101 D_2.5V D_2.5V D_2.5V IC4101 FB4105 LDD_AVDD L4103 RF PROCESS A_2.5V A_2.5V A_2.5V FB4106 LDD_LVDD (9/17) MECHANISM L4102 FB4102 PDIC_VCC DECK (DDX-C2000) FB4101 DRV_A_3.9V DRV_A_3.9V DRV_A_3.9V FPDIC_VCC DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 26: Power Block Diagram (3/3)

    MODE_LED_VDD MOVIE CK-170 BOARD (2/2) CN1010 CN6001 (2/2) (2/2) D_2.5V D1012 D_2.8V (NIGHTSHOT) D6004 (MS ACCESS) MT_5.0V FP-575 MS-358 BOARD IC1001 FLEXIBLE 2.9V REG BOARD CN1003 CN7402 (17/17) CN7401 MEMORY MS_VCC VOUT STICK MS_PWR_ON POWER (2/3) (PAGE 3-7) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 3-8E...

  • Page 27: Printed Wiring Boards And Schematic Diagrams

    (SIDE B) MS-358 BOARD CN6404 CK-170 BOARD LCD901 (SIDE A) CN6401 TOUCH PANEL BH6001 BATTERY BT901 RV-001 HOLDER LITHIUM BATTERY BOARD PD-314 BOARD 2.5 INCH COLOR LCD UNIT HARNESS (HN-024) (Gray) HARNESS (HN-024) (Gray) CONTROL SWITCH BLOCK (SB22100) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 FRAME...

  • Page 28: Schematic Diagrams

    FP-575 FLEXIBLE BOARD FP-569 FLEXIBLE BOARD CONTROL SWITCH BLOCK (SB22100) (EJECT SWITCH/MOTOR) CK-170 BOARD (CONTROL SWITCH) FP-570 FLEXIBLE BOARD (DC IN) CONTROL SWITCH BLOCK (PS22100) OC-001 BOARD (PANEL OPEN/CLOSE) BL-006 BOARD (EVF, EVF BACKLIGHT) COMMON NOTE FOR SCHEMATIC DIAGRAMS DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 29 In addition, ensure that the receiver is not covered with dusts nor exposed to strong light. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifie. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 30 R7103 REG_GND CN1601 Through the CCD_OUT Flexible Flat Cable VSHT (FFC-003) REG_GND CL7101 Page 4-6 of Level 3 CCD_OUT CL7102 C7103 REG_GND 0.01u VSHT R14.7/P0 R11.1/P0 R10.3/P0 Q7101 2SC3931-BCD-TX BUFFER C7105 C7101 C7102 C7104 C7106 C7107 R7101 3300 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 CD-686...
  • Page 31 Schematic diagrams of the VC-483 board are not shown. Pages from 4-6 to 4-22 are not shown. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 32 TP_R UNIT VD6404 N.C. S001 START/STOP REG_GND LND006 LND005 2ND_S/S_SW LND004 S002 2ND_ZOOM(T) LND003 Q6402 2ND_ZOOM(W) LND002 XP411F-TXE (ZOOM) Home LND001 Q6401,Q6402 TOUCH PANEL I/F S003 Q6401 XP421F-TXE S004 HOME LND641 CH_GND R6426 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 RV-001, PD-314, FP-573, SB22100 4-23...
  • Page 33 D6004 BATT_LI_3V CN1010 SML-310LTT86 Through the PANEL_O/C (MS ACCESS) Flexible Flat Cable D_2.8V (FFC-006) Page 4-22 ACCESS_LED of Level 3 N.C. XBATT_VIEW FR_XRESET S6002 VD6005 VD6006 DISP S6003 REG_GND /BATT INFO VD6004 S6001 RESET LN6005 CHASSIS_GND DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 CK-170, OC-001 4-24...
  • Page 34 Flexible Flat Cable FB7306 (FFC-007) AUDIO_L LANC_DC R7302 Page 4-17 REG_GND of Level 3 VIDEO_I/O REG_GND S_Y_I/O S_C_I/O LN7301 VD7304 C7301 VD7301 C7302 470p 470p SH_GND 3_GND 2_LANC_DC J7301 5_JACK_IN 1_SIG 4_232C_TD R7301 D7301 LN7302 SH_GND DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 BL-006, JK-319, FP-574 4-25...
  • Page 35 Level 3 MSDATA1 MSDATA1 MSDATA1 MSDATA1 N.C. R7407 MS_BS MS_BS MS_BS MSBS REG_GND REG_GND REG_GND REG_GND REG_GND REG_GND LN7401 REG_GND REG_GND REG_GND REG_GND N.C. N.C. N.C. LN7405 N.C. N.C. N.C. SIRCS_SIG LN7404 REG_GND LN7403 D_2.8V DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 MS-358, FP-575 4-26...
  • Page 36 Level 3 D001 S001 ACV_UNREG SML-512WWT86 N.C. STARAT/STOP ACV_UNREG CHARGE_LED_VDD 2 HOT ACV_UNREG J001 3 SW XCHARGE_LED COLD DC IN N.C. XCAM_LED ACV_GND XPHOTO_LED ACV_GND D002 MODE_LED_VDD SML-412MWT86 ACV_GND MOVIE ACV_GND ACV_GND D003 SML-412MWT86 STILL DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 FP-569, FP-570, PS22100 4-27...

  • Page 37: Printed Wiring Boards

    CD-686 BOARD BL-006 BOARD RV-001 BOARD JK-319 BOARD PD-314 BOARD (SIDE A) FP-574 FLEXIBLE BOARD PD-314 BOARD (SIDE B) MS-358 BOARD CK-170 BOARD FP-569 FLEXIBLE BOARD OC-001 BOARD FP-570 FLXIBLE BOARD COMMON NOTE FOR PRINTED WIRING BOARDS MOUNTED PARTS LOCATION DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 38 : pattern of the rear side (The other layers’ patterns are not indicated) • Through hole is omitted. • There are a few cases that the part printed on diagram isn’t mounted in this model. • C: panel designation DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 4-29...
  • Page 39 CD-686 (2 layers) : Uses unleaded solder. CD-686 BOARD (SIDE A) CD-686 BOARD (SIDE B) R7101 C7107 C7105 C7104 Note: IC7101 is not included in IC7101 CD-686 complete board. C7101 CL7101 CL7102 CN7101 1-871-269- 11 21 1-871-269- 11 21 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 CD-686 4-31...
  • Page 40 Printed wiring boards of the VC-483 board are not shown. Pages 4-32 and 4-33 are not shown. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 41 R6426 VD6401 CN6401 CL6402 R6404 CL6404 D6408 D6406 R6431 D6407 R6429 RV-001 BOARD R6430 R6406 C6401 S7502 Q6403 S7502 (PANEL REVERSE) C6406 HARNESS (HN-024) (Gray) HARNESS (HN-024) (Gray) 1-871-271- 11 21 1-871-270- 11 21 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 RV-001, PD-314 (SIDE A) 4-34...
  • Page 42 PD-314 (2 layers) : Uses unleaded solder. PD-314 BOARD (SIDE B) D6403 – D6405 (BACKLIGHT) 1-871-270- 11 21 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 PD-314 (SIDE B) 4-35...
  • Page 43 CK-170 board. (The battery holder removed once cannot be used again.) OC-001 BOARD (SIDE B) 1-871-376- 11 21 When mounting these parts, mount new bat- S7601 tery holder first and attach new lithium battery (PANEL OPEN/CLOSE) next. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 CK-170, OC-001 4-36...
  • Page 44 LN5741 1-871-288- JK-319 BOARD (SIDE A) JK-319 BOARD (SIDE B) A/V OUT FB7305 VD7303 C7301 FB7306 VD7305 C7302 R7303 R7301 R7304 R7302 J7301 FB7303 VD7302 R7305 VD7301 R7306 VD7304 1-871-292- 11 21 1-871-292- 11 21 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 BL-006, JK-319, FP-574 4-37...
  • Page 45 MS-358 (2 layers) : Uses unleaded solder. MS-358 BOARD (SIDE A) MS-358 BOARD (SIDE B) FB7401 R7404 FB7402 MEMORY R7405 STICK R7406 FB7403 R7407 FB7404 LN7405 LN7403 LN7404 1-871-585- 11 21 CN7402 LN7402 1-871-585- 11 21 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 MS-358 4-38...
  • Page 46 FP-569 FLEXIBLE BOARD (LID OPEN DETECT) FP-570 FLEXIBLE BOARD J001 M903 MOTOR UNIT DC IN (GEARD MOTOR) LND001 LND002 S5694 (EJECT DETECT) 1-871-283- BH001 BATTERY TERMINAL Note: BH001 and J001 are not included in FP-570 flexible board. 1-871-284- DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 FP-569, FP-570 4-39...
  • Page 47 Mounted parts location of the VC-483 board are not shown. Pages 4-41 to 4-42 are not shown. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 48: Mounted Parts Location

    PD-314 BOARD C6402 C6403 C6405 C6406 CN6401 A-2 CN6402 B-4 CN6404 A-4 CN6405 C-5 D6402 B-4 * D6403 B-5 * D6404 C-5 * D6405 A-5 Q6401 A-4 Q6402 A-4 R6401 A-3 R6402 A-3 R6403 B-3 R6407 B-4 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 PD-314 4-43E...

  • Page 49: Repair Parts List

    CABINET (R) SECTION LCD BLOCK BT-EVF BLOCK ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST Link Link ACCESSORIES OC-001 BOARD BL-006 BOARD FP-570 FLEXIBLE BOARD CD-686 BOARD PD-314 BOARD FP-574 FLEXIBLE BOARD CK-170 BOARD RV-001 BOARD JK-319 BOARD FP-569 FLEXIBLE BOARD MS-358 BOARD DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 50 : Argentine model AUS : Australian model : Brazilian model : Chinese model CND : Canadian model : East European model HK : Hong Kong model : Japanese model : Tourist model : Korea model : North European model DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 51: Exploded Views

    Part No. Description Ref. No. Part No. Description 2-699-266-01 LIGHT, ACCESS GUIDE 2-699-512-01 WINDOW, REMOTE CONTROL 2-699-257-01 CABINET (L (UPPER)) 2-635-562-31 SCREW (M1.7) (Black) 1-833-677-11 CABLE, FLEXIBLE FLAT (FFC-006) 3-078-890-11 SCREW, TAPPING (Silver) 2-699-442-01 COVER, R 1-871-289-11 FP-575 FLEXIBLE BOARD DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 52 1-787-237-11 MOTOR UNIT (GEARD MOTOR) 2-699-449-01 CABINET (UPPER (221)) 2-635-562-11 SCREW (M1.7) (Black) 2-635-562-31 SCREW (M1.7) (Black) 1-833-675-21 CABLE, FLEXIBLE FLAT (FFC-003) 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red) A-1246-113-A CABINET (L) ASSY (2) (SERVICE) (DVD106E/ 3-078-890-11 SCREW, TAPPING (Silver) DVD108/DVD108E/DVD608/DVD608E) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 53 A-1234-141-A VC-483 BOARD, COMPLETE (SERVICE) 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red) (DVD109E) A-1234-142-A VC-483 BOARD, COMPLETE (SERVICE) 2-586-337-01 SCREW, MD (Silver) (DVD608E: E (Saudi Arabia, Kuwait model)) A-1234-144-A VC-483 BOARD, COMPLETE (SERVICE) (DVD108/DVD108E/DVD608/DVD608E: Except E (Saudi Arabia, Kuwait model)) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 54 2-699-276-01 FRAME, LENS DVD608/DVD608E: Except E (Saudi Arabia, Kuwait model)) A-1228-487-A CD-686 BOARD, COMPLETE 2-318-138-01 RUBBER, SEAL 1070 2-635-562-11 SCREW (M1.7) (Black) 1-788-242-11 OPTICAL FILTER BLOCK 3-078-890-11 SCREW, TAPPING (Silver) 1-788-514-11 OPTICAL UNIT (EG05A) 3-080-204-21 SCREW, TAPPING, P2 (Black) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 55 1-825-260-41 LOUD SPEAKER (1.6CM) 1-833-678-11 CABLE, FLEXIBLE FLAT (FFC-007) 2-635-562-31 SCREW (M1.7) (Black) A-1228-485-A JK-319 BOARD, COMPLETE (DVD106E/ 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red) DVD108/DVD108E/DVD608/DVD608E) A-1228-486-A JK-319 BOARD, COMPLETE (DVD109E) 3-078-890-11 SCREW, TAPPING (Silver) * 210 2-886-110-01 FRAME, JACK DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 56 2-694-511-01 FRONT FRAME (2.5) LCD901 A-1149-654-A TP BLOCK ASSY (25STMG06) 2-694-507-01 PRISM SHEET V (2.5) 2-635-562-11 SCREW (M1.7) (Black) 2-694-508-01 PRISM SHEET H (2.5) 2-635-562-31 SCREW (M1.7) (Black) 2-694-509-01 DIFFUSION SHEET (2.5) 3-078-890-11 SCREW, TAPPING (Silver) 2-666-791-01 LIGHT GUIDE (2.5) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...
  • Page 57 1-815-792-11 CONNECTOR, DC-IN (7.2V) * 311 2-638-816-01 PLATE (TFT), DEFLECTION LCD902 8-753-245-09 LCX059CKK-1 * 312 2-638-818-01 ILLUMINATOR 2-635-562-11 SCREW (M1.7) (Black) * 313 2-638-819-01 CUSHION, LCD 3-078-890-11 SCREW, TAPPING (Silver) * 314 2-638-820-01 GUIDE, LAMP A-1228-495-A BL-006 BOARD, COMPLETE DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

  • Page 58: Electrical Parts List

    • Refer to page 5-1 for mark 0. • Refer to page 5-1 for mark 0. board. (The battery holder removed once cannot be used again.) When mounting these parts, mount new battery DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 holder first and attach new lithium battery next.
  • Page 59 * S7601 1-786-545-41 SWITCH, PUSH LEVER (S) (PANEL OPEN/CLOSE) A-1228-489-A PD-314 BOARD, COMPLETE *********************** < CAPACITOR > C6402 1-100-581-81 CERAMIC CHIP 0.0047uF 10% C6403 1-100-581-81 CERAMIC CHIP 0.0047uF 10% C6405 1-165-908-11 CERAMIC CHIP C6406 1-125-777-11 CERAMIC CHIP 0.1uF DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 5-10...
  • Page 60 3-093-691-61 (E, HK, AUS, CH) ENGLISH / FRENCH / SIMPLIFIED CHINESE for CHINA / TRADITIONAL CHINESE for HONG KONG 3-093-691-71 (E) ENGLISH / TRADITIONAL CHINESE for TAIWAN / SPANISH / PORTUGUESE • Refer to page 5-1 for mark 0. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 5-18E...
  • Page 61 0 101 0 101 A-1212-602-A SERVICE (DDX-C20000) BLOCK ASSY A-1212-602-A SERVICE (DDX-C2000) BLOCK ASSY * 165 3-083-393-01 TAPE (P) SP901 1-825-260-41 LOUD SPEAKER (1.6CM) SP901 1-825-262-51 SPEAKER (1.6CM) 2007G0500-1 DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 © 2007.7 Sony EMCS Co. 9-852-173-84 Published by Kohda TEC...
  • Page 62 Part No. Description * 273 3-083-393-01 TAPE (P) J001 J001 BH001 BH001 * 321 2-699-244-01 PLATE (UPPER), BT PANEL * 321 2-699-244-02 PLATE (UPPER), BT PANEL * 323 3-208-237-01 SHEET (BT) * 324 3-083-393-01 TAPE (P) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 — 2 —...
  • Page 63 0 or dotted line with marque 0 sont critiques pour la mark 0 are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une pièce specified. portant le numéro spécifié. DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2 — 3 —...
  • Page 64 HARDWARE LIST (1/4) #1: M1.7 X 2.5 #2: M1.7 X 4.0 #3: M1.7 X 2.5 #4: M1.4 X 2.5 (Tapping) (Black) (Black) (Red) (Dark Silver) 2-635-562-11 2-635-562-31 2-660-401-01 3-348-998-81 #5: M1.7 X 3.5 (Tapping) #6: M1.4 X 1.7 #7: M1.7 X 1.6 #8: M1.7 X 3.5 (Tapping) (Black) (Silver)
  • Page 65 HARDWARE LIST (2/4) #21: M1.4 X 3.0 #22: M1.7 X 5.0 (Tapping) #23: M1.7 X 4.0 (Tapping) #24: B1.7 X 5.5 (Tapping) (Black) (Silver) (Black) (Black) 2-662-396-21 3-083-261-01 3-080-204-11 4-679-805-11 #25: M1.7 X 3.0 #26: M1.4 X 2.0 #27: M1.4 X 2.0 #28: M1.4 X 4.0 (Tapping) (Black) (Silver)
  • Page 66 HARDWARE LIST (3/4) #41: M3.0 X 8.0 (Tapping) #42: M2.0 X 4.0 (Tapping) #43: M1.7 X 4.0 #44: M1.7 X 3.0 (Tapping) (Silver) (Silver) (Red) (Silver) 3-065-748-01 7-628-253-00 2-660-401-31 3-078-890-61 #45: M1.4 X 2.5 #46: M1.7 X 3.0 #47: M1.4 X 3.0 (Tapping) #48: M1.7 X 2.5 (Silver) (Red)
  • Page 67 HARDWARE LIST (4/4) #64: M1.7 X 5.0 (Tapping) #61: M3.0 X 10.0 #62: M2.0 X 3.0 #63: M5.0 X 12.5 (Silver) (Black) (Silver) (Black) 2-666-551-21 7-682-549-09 3-080-202-21 3-060-811-21 12.5 10.0 #65: M1.4 X 3.5 #66: M1.4 X 1.4 #67: M1.4 X 2.0 (Silver) (Silver) (Silver)
  • Page 68 [Description of main button functions on toolbar of the Adobe Acrobat Reader Ver5.0 (for Windows)] Toolbar Printing a text Reversing the screens displayed once • To reverse the previous screens (operation) one by one, click 1. Click the Print button 2.
  • Page 69 • Correction of Repair Parts (C1) S.M. correction: Page 5-18 2007.05 Correction-2 • Correction of Repair Parts (C2) S.M. correction: Page 5-4, Page 5-5, Page 5-6, Page 5-7, Page 5-8 2007.07 Supplement-1 • Change of Repair Parts (S1 DI07-043) DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2...

This manual is also suitable for:
