Related Manuals for Proline PF120WD
Summary of Contents for Proline PF120WD

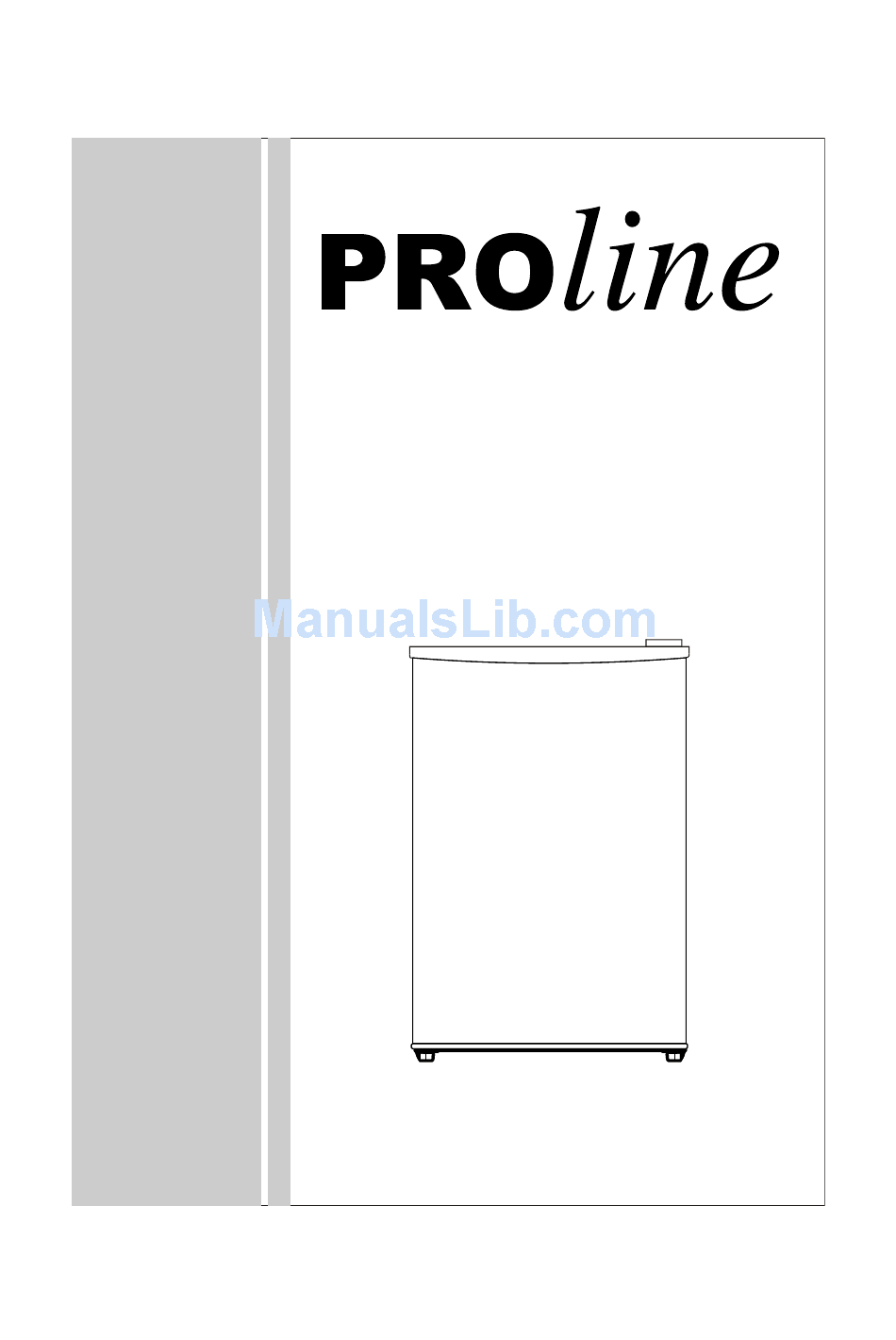

- Page 1 48cm UNDER COUNTER FRIDGE INSTRUCTION MANUAL MODEL No.: PF120WD...
-
Page 2: Table Of Contents
Please read this instruction manual carefully before operation Keep these instructions in a safe place for future reference CONTENTS Part Identification Safety Information Installation Electrical Connection Operating your refrigerator Setting the Thermostat Control Defrosting Cleaning your refrigerator Reversing the door Maintenance Trouble shooting Do’s and Don’ts... -
Page 3: Part Identification
Name of parts PARTS AND FEATURES Cabinet Ice Box Room Door Drip Tray Wire Shelf Glass cover Compressor(back) Crisper box Leveling Legs Bottle Racks Recessed Handle Door switch Temperature Control Knob... -
Page 4: Safety Information
Dear Customer Thank you for buying a Proline Refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this manual. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. -
Page 5: Electrical Connection
ELECTRICAL CONNECTION For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug. -
Page 6: Operating Your Refrigerator
Operating your refrigerator Before plugging in your refrigerator for the first time remove all packing, clean the refrigerator with warm water and bicarbonate of soda. Wipe dry with a soft cloth. Plug the refrigerator into the mains power supply ensuring that the voltage is the same as the rating label and then turn the thermostat control knob that is situated at the right hand side of the unit to the midway position. -
Page 7: Cleaning Your Refrigerator
Cleaning your refrigerator Turn the Thermostat control to “OFF” position then remove the mains plug from the wall socket, open the door and remove all the contents to a cool place remove the shelf. Wipe the inside surface with a warm water and bicarbonate of soda solution. The solution should be about 2 tablespoon of bicarbonate of soda to 2 pints of water. -
Page 8: Reversing The Door
C hanging the revers ible door T his refrigerator has been built with the door hinges on the right. If you wis h to change the opening direction, follow the ins tructions below: 1. R emove the upper hinge cover (6) firs t 2. -
Page 9: Maintenance
Maintenance Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette. -
Page 10: Troubleshooting
Troubleshooting 1. When the refrigerator does not work. Check if there is a power failure. Check if the power plug is plugged into the power outlet. Check that the fuse has not blown. 2. When the refrigerator is cooling excessively. The temperature control dial may be set too high. - Page 11 Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug.
-
Page 12: Do's And Don'ts
Do’s and don’ts Do- Clean and defrost your appliance regularly (See “Defrosting”) Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap raw meat and poultry loosely in polythene Do- Wrap fish and offal in polythene bags. -
Page 13: Technical Data
Technical data Brand Proline Appliance type Refrigerator Star rating Total gross volume (L) Total storage volume (L) Ice box room storage volume(L) Refrigerator storage volume(L) Maximum bulb power (W) Climate Class +Ambient Range N (+16C to +32C) Energy class (1) -
Page 14: Helpline
Service If you have any questions regarding the installation or operation of your new appliance please contact our help line on 0113 2793520 during normal office hours.(Please note: you can not book a service call through this number). If you require a Service Engineer to call The number is on your sales receipt. Environmental Notes: Do not dispose of your packaging materials with normal household waste. - Page 15 CKPRL-L01...
