MUTOH ValueJet VJ-1624 Operation Manual page 90

3 Before using
NOTE
• The torque of Roll media holder at the factory shipment (when Damper stopper is not fixed) is 0kg.
Follow the procedure below to change the torque of Media holder.

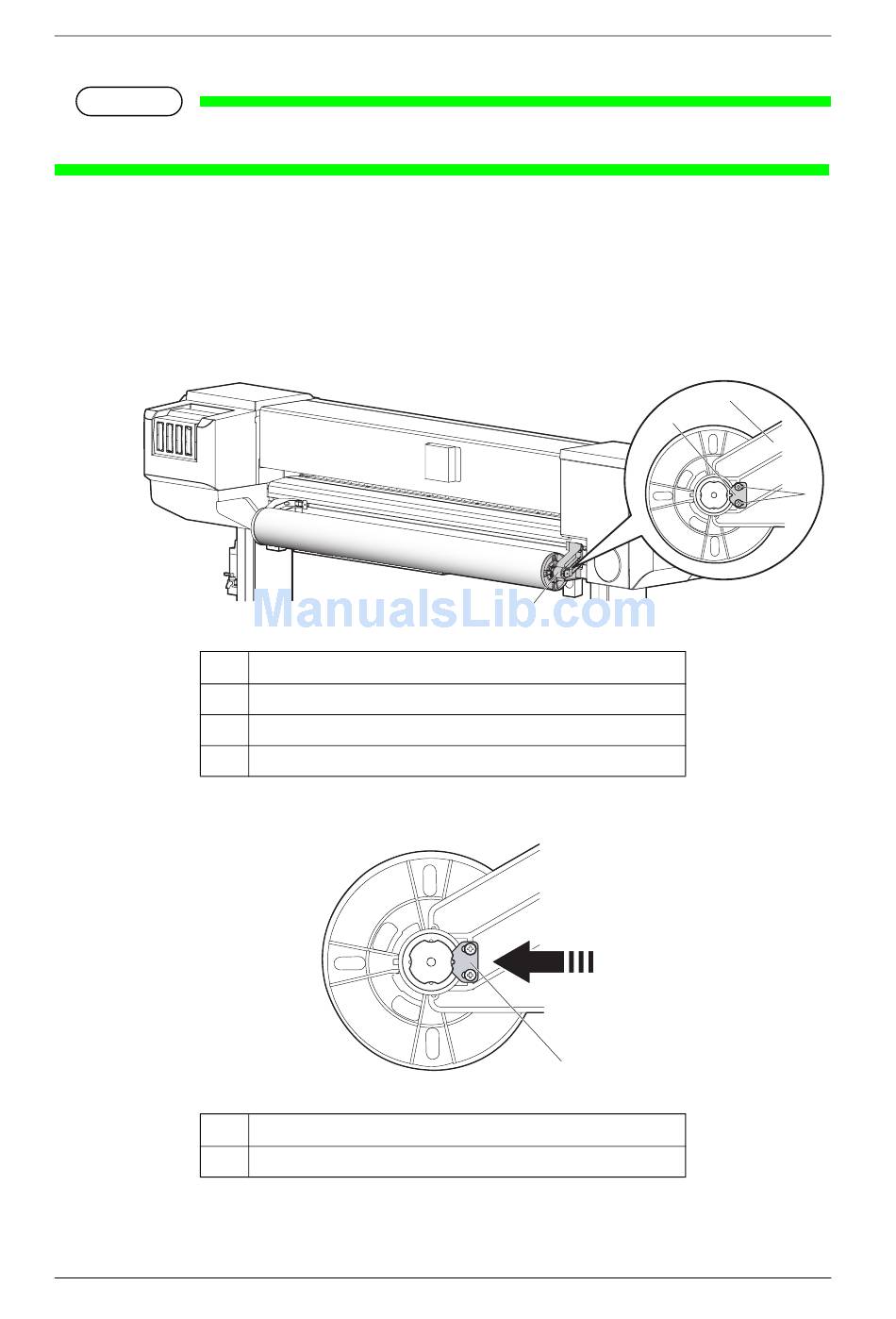

1. Change the locations of Damper drive switching plate of Media holder L and R, and fix Damper
stopper.
a. Use a Phillips screwdriver to loosen the screws (2 pieces) retaining Damper drive switching plate
on the right side of Roll media holder.
No.
1
2
3
b. Slide Damper drive switching plate fully in the direction of the arrow in the illustration below.
No.
1
Roll media holder (Right)
Damper drive switching plate
Screw
Damper drive switching plate
VJ-1624/1624W OPERATION MANUAL
1
Name
1
Name
3-54
1
2
3
