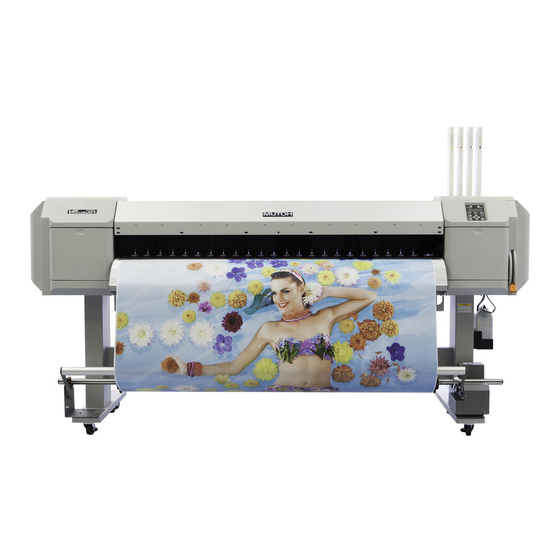

MUTOH VJ-1624 Operation Manual

Hide thumbs Also See for VJ-1624:

Advertisement

Quick Links

Download this manual

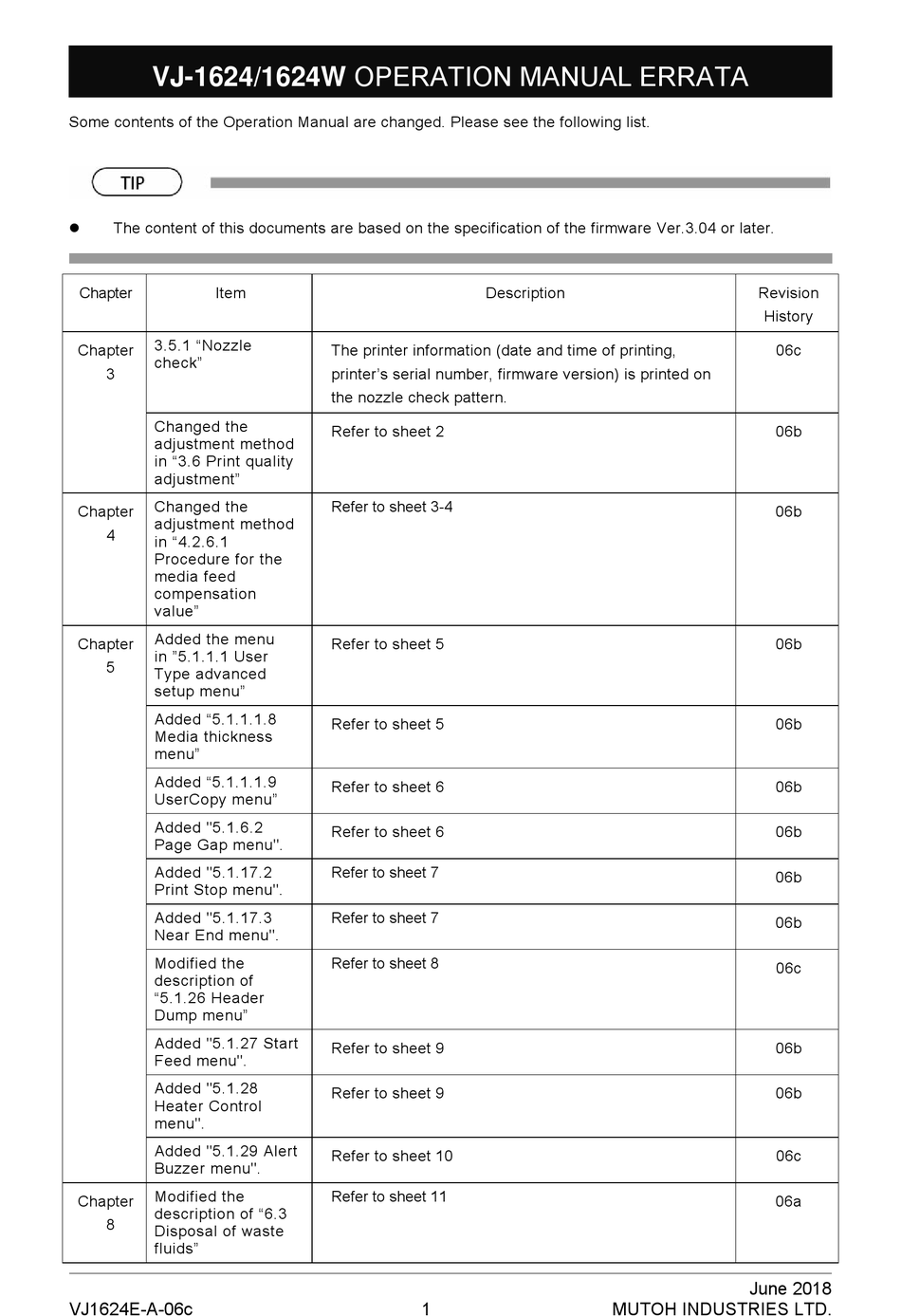

VJ-1624/1624W OPERATION MANUAL ERRATA
Some contents of the Operation Manual are changed. Please see the following list.
The content of this documents are based on the specification of the firmware Ver.3.04 or later.
Chapter
Item
3.5.1 "Nozzle
Chapter
check"
3
Changed the
adjustment method
in "3.6 Print quality
adjustment"
Changed the
Chapter
adjustment method
4
in "4.2.6.1
Procedure for the
media feed
compensation
value"
Added the menu
Chapter
in "5.1.1.1 User
5
Type advanced
setup menu"
Added "5.1.1.1.8
Media thickness
menu"
Added "5.1.1.1.9
UserCopy menu"
Added "5.1.6.2
Page Gap menu".
Added "5.1.17.2
Print Stop menu".
Added "5.1.17.3
Near End menu".
Modified the
description of
"5.1.26 Header
Dump menu"
Added "5.1.27 Start
Feed menu".
Added "5.1.28
Heater Control
menu".
Added "5.1.29 Alert
Buzzer menu".
Modified the
Chapter
description of "6.3
8
Disposal of waste
fluids"
VJ1624E-A-06c
Description
The printer information (date and time of printing,
printer's serial number, firmware version) is printed on
the nozzle check pattern.
Refer to sheet 2
Refer to sheet 3-4
Refer to sheet 5
Refer to sheet 5
Refer to sheet 6
Refer to sheet 6
Refer to sheet 7
Refer to sheet 7
Refer to sheet 8
Refer to sheet 9
Refer to sheet 9
Refer to sheet 10
Refer to sheet 11
1
Revision
History
06c
06b
06b
06b
06b
06b
06b
06b
06b
06c
06b
06b
06c
06a
June 2018
MUTOH INDUSTRIES LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VJ-1624 and is the answer not in the manual?

Questions and answers

Related Manuals for MUTOH VJ-1624

Summary of Contents for MUTOH VJ-1624

  • Page 1 VJ-1624/1624W OPERATION MANUAL ERRATA Some contents of the Operation Manual are changed. Please see the following list.  The content of this documents are based on the specification of the firmware Ver.3.04 or later. Chapter Item Description Revision History 3.5.1 “Nozzle...

  • Page 2: Print Quality Adjustment

    ERRATA VJ-1624/1624W OPERATION MANUAL Modified the Chapter Refer to sheet 12-15 diagram in “9 Setup menu diagram” 3.6 Print quality adjustment See the following changes. The function to enter the media thickness is added. ・ Select “ **>2: Adjust Print>” and press the [>] key. “Thickness 170µm” will be displayed.
  • Page 3 Press the [+] key or [–] key on Operation panel to select "PF4: Micro Print". Press the [Enter] key on Operation panel. ・ For VJ-1624, "Warming up Skip ->E" is displayed on Operation panel. (This is not displayed for VJ-1624W since it does not perform warming up.) ・...
  • Page 4 ERRATA VJ-1624/1624W OPERATION MANUAL ・ After the micro adjustment printing is completed, “Micro Change: 0.00%” is displayed on Operation panel. 8. Sets up Micro Adjustment Change. Press the [+] key or [–] key and enter the micro adjustment value according to the printing result in Step 7.
  • Page 5 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.1.1 User Type advanced setup menu The following menu is added to the list after “Vacuum Fan”. Setup item Setting Description Type 1 - Type 15 Media Thickness Set the media thickness that you use. [Enter] key: shifts to the sub menu.
  • Page 6 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.1.1.9 UserCopy menu Copies the setting values of the user type currently selected to a different user type collectively. The following setting values are copied. ・ Print mode ・ Effect ・ Adjustment value for the adjustment print Feed compensation (initial adjustment printing length, initial adjustment value, micro adjustment value) ・...
  • Page 7 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.17.2 Print Stop menu You can set whether or not to display “Roll Remain Error” and pause printing when the length of the roll media that is counted inside the printer becomes 0.  Normally you can set this as “Off” as the rear sensor detects when the roll paper is finished.
  • Page 8 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.26 Header Dump menu This function is to specify whether to print the following information (dump data) of print data. Data Header ・ Number of Dot in Data (Printed only when the header dump setting is "On".) ・...
  • Page 9 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.27 Start Feed Menu When Start Feed is set, before printing, the printer rewinds or feeds the media the amount specified by the set value. Setup Item Setting Description Start Feed -10mm to <0mm> to 500mm Sets the amount to rewind or feed the media before printing starts.
  • Page 10 ERRATA VJ-1624/1624W OPERATION MANUAL 5.1.29 Alert Buzzer Menu Selects how to turn off the printer beep sound when an error occurs. For unattended printing, you can select Off setting to avoid continuous buzzer beep. Setup Item Setting Description Alert Buzzer <On>...

  • Page 11: Disposal Of Waste Fluids

    ERRATA VJ-1624/1624W OPERATION MANUAL 6.3 Disposal of waste fluids * Revised the picture of step 3 and 4 3. Open the waste fluid valve, and transfer the waste fluid to the container. ・When transferring the waste fluid to the empty container, the waste fluid may spatter.
  • Page 12 ERRATA VJ-1624/1624W OPERATION MANUAL Setup menu diagram (Ready to Print)（1/4） June 2018 VJ1624E-A-06c MUTOH INDUSTRIES LTD.
  • Page 13 ERRATA VJ-1624/1624W OPERATION MANUAL Setup menu diagram (Ready to Print)（2/4） June 2018 VJ1624E-A-06c MUTOH INDUSTRIES LTD.
  • Page 14 ERRATA VJ-1624/1624W OPERATION MANUAL Setup menu diagram (Ready to Print)（3/4） June 2018 VJ1624E-A-06c MUTOH INDUSTRIES LTD.
  • Page 15 ERRATA VJ-1624/1624W OPERATION MANUAL Setup menu diagram (Ready to Print)（4/4） June 2018 VJ1624E-A-06c MUTOH INDUSTRIES LTD.
