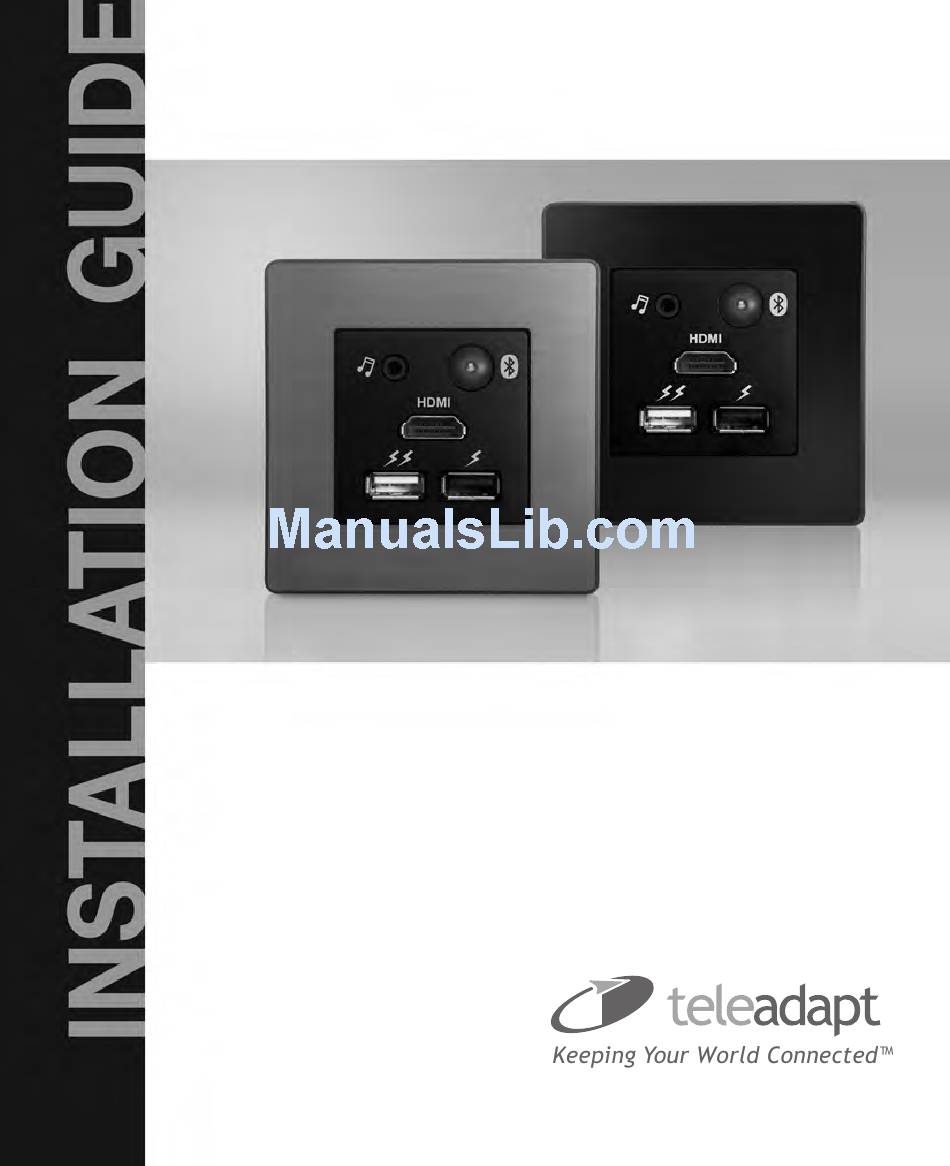

- Page 1 MediaHub Mini ™ TA-3350...
-
Page 2: Table Of Contents
Table of Contents Products Covered By This Installation Guide Important Safety Instructions Certifications What Is Included In The Box Preparation For Installation Installation Additional Information Frequently Asked Questions Trouble Shooting Warranty Specifications Contact Details... -
Page 3: Products Covered By This Installation Guide
Products Covered By This Installation Guide The TA-3350 MediaHub Mini is a compact media panel which is compatible with a wide range of hospitality TV entertainment systems. The TA-3350 provides an HDMI input, a 3.5mm audio input, Bluetooth for audio and two USB sockets at the front, one of which is high power (2.1A) and the other standard USB power or passthrough. -
Page 4: Important Safety Instructions
Important Safety Instructions Read these instructions carefully before attempting any installation. Follow all instructions and heed all warnings. These instructions should be kept for future reference. This equipment must be securely attached to furniture in strict accordance with these installation instructions. This equipment is designed for indoor use only. -
Page 5: Certifications
Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, for example if the power supply plug or cord is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been exposed to rain or moisture, does not operate normally or has been dropped or damaged. -
Page 6: What Is Included In The Box
What Is Included In The Box 1X Yellow Mini-USB Charging 1X MediaHub Mini Main Unit. Converter (already plugged 1X Black Trim. into rear USB of Main Unit). 1X Metallic Trim. 2X M3 15mm Wood Screws. 1X Power Adaptor (mains cable 2X M3, 25mm Bolts, Washers not included in box, see and Nuts. -
Page 7: Preparation For Installation
MediaHub Mini and that all necessary control mechanisms (CEC or serial) and cabling are defined and in place. You can find more information about this in the “Additional Information” section (page 12), or contact TeleAdapt for help and advice (see contact details on page 21 of this guide). - Page 8 HDMI Cables It is recommended to use TeleAdapt supplied HDMI cables that are fully compatible with the MediaHub Mini (CAB-42683D5). If however, you choose to supply your own HDMI cable, then it must meet the following specifications in order to be compatible with the MediaHub Mini: •...
-
Page 9: Serial Cables
This adaptor fits into the rear HDMI socket and provides a floating HDMI socket. USB Cables It is recommended to use TeleAdapt supplied USB cables that are fully compatible with the MediaHub Mini. If however, you choose to supply your own USB cable, then you should ensure that the total length (including any cabling from the front of the MediaHub Mini to a guest device) does not exceed 5 metres. -
Page 10: Installation
In addition if the furniture is constructed using material greater than 18mm (0.71 in) in depth then the use of a flexible HDMI cable adaptor (available from TeleAdapt) may be necessary. MediaHub Mini - Furniture Cutout Dimensions Continued on page 10... - Page 11 Step 2 Ensure all cabling required (HDMI, USB Mini-B plug (if used), serial RJ45 (if used) and DC power are presented at the cutout and that you have sufficient slack to allow connection to the rear connectors on MediaHub Mini main unit. Ensure the PSU is NOT plugged into the mains at this point.
- Page 12 Step 6 (applies only if serial control is used) If using serial control then connect the RJ45 end of the serial cable to the RJ45 socket on the rear of the MediaHub Mini. Step 7 Ensure that the PSU is NOT plugged into the mains. Next plug the right-angled DC connector from the PSU into the matching connector on the rear of the MediaHub Mini.
-
Page 13: Additional Information
Guides for direct connection to a range of TVs as well as integration guides for various content providers will be posted on the TeleAdapt website as and when they are available. Go to: http://www.teleadapt.com/support/mediahubs/mediahub-mini) Configuring Serial Communication... - Page 14 If a suitable serial protocol cannot be enabled then the TeleAdapt Serial Protocol will be enabled by default. If using serial communication then CEC operation should be disabled on the TV configuration. HDMI Input The HDMI input on the MediaHub Mini is suitable for connecting a range of HDMI sources.
- Page 15 Select the music you wish to hear and and play it. The MediaHub Mini will generate an auto-switch event and the button will ‘blip’ every 3 or 4 seconds. Audio Input Connect an audio source and select play. The MediaHub Mini detects audio using a sampling algorithm to ensure the volume is set high enough on the source device.
- Page 16 Checking the Firmware Revision By using a suitable serial cable and a laptop equipped with a serial port (usually requires a separate serial to USB converter) it is possible to display the firmware revision of the MediaHub Mini. Use a terminal emulation program configured to access the serial port at 9600, 8, N 1.
-
Page 17: Frequently Asked Questions
My laptop does not have an HDMI port. How do I connect? Adapters are available to convert VGA to HDMI, Displayport to HDMI, and Mini Displayport to HDMI. Contact TeleAdapt to purchase one of these adapters if you do not already have one. - Page 18 Connecting Mobile Devices for Charging Which devices can I charge on the MediaHub Mini? Any mobile device or accessory that charges from a “standard” USB port will charge on the USB port marked with a single lightning bolt. How much power does the USB port with a single lightning bolt supply? 0.5amps at 5 volts, although with the yellow Mini-USB dongle inserted this may increase.
- Page 19 This will require an additional control cable which is sold separately. Contact TeleAdapt to find out the control options available for your TV model. What if my TV does not have ANY control options (No CEC, no RS232, no RJP, etc.)?
-
Page 20: Troubleshooting
CEC is a feature that can be turned on, or off, in the TVs configuration. Please contact your TV company or TeleAdapt for help for accessing the feature in the menu. The MediaHub Mini does not seem to be responding. -
Page 21: Specifications
Specifications Dimensions Unit External (H x W x D): 86.0mm x 86.0mm x 33.4mm Mounting Depth (minimum): 45.00mm from furniture face PSU (H x W x D): 90mm x 50mm x 32mm PSU DC Cable Length: 1.8m PSU AC Cable Length: 2.0m Packaging (H x W x D): 180.0mm x 180.0mm x 40.0mm... -
Page 22: Contact Details
Contact Details Europe Asia TeleAdapt Limited TeleAdapt HK, Ltd Axis 5 Unit G, 15/F , Block 2 Rhodes Way Leader Industrial Center Watford No. 188-202 Texaco Road WD24 4YW Tseun Wan United Kingdom Hong Kong Tel: +44 (0)1923 810200 Tel: +852 2780 9020... - Page 23 Visit our website at: www.teleadapt.com MediaHub Mini Installation Guide_05 / 2014_REV-0...
