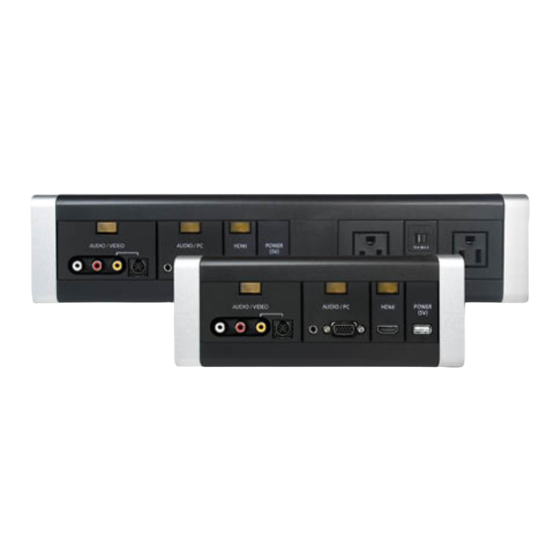

Summary of Contents for TeleAdapt TA-7630

  • Page 2: Table Of Contents

    MediaHub Active Troubleshooting …........26 Protocol Converter Dongle Troubleshooting ......27 Flush-Mount Cut Measurements ..........28 Assemble Flush Mount MediaHub Active with Power/Data.. 29 Assemble Desktop Housing (DTH-S01, DTH-R01, DTH-EXT)30 Technical Support..............32 TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 3: Product Introduction

    Product Introduction Thank you for choosing the TeleAdapt MediaHub for your in-room entertainment or conference room connectivity needs. MediaHub allows business and leisure travellers to use the in-room TV display as their personal entertainment or projection screen for enjoying their personal standard- and high-definition (HD) video games, music playlists, movies, TV shows, photos, business presentations and more from their portable electronic devices.

  • Page 4: Safety Precaution Information

    (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 5 filled with liquids, such as vases, shall be placed on the apparatus. The mains plug used as disconnect device shall remain readily operable. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 6: Definitions

    RS232 – MediaHub Active uses an RS232 serial control protocol for implementing the TV auto-switching feature. Most hospitality TVs support RS232 protocol through their RS232 Serial Port (circular port with nine pins) or through their 3.5mm Serial Control port. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 7: Electrical Requirements

    Electrical Requirements A 120-volt, 60Hz, 15-Amp electrical supply is required for the TA-7630. A standard duplex (2) 120-volt, 60Hz, 15-Amp electrical supply is required for the TA-7630 plus TA-7500L. Care and Maintenance Though TeleAdapt MediaHubs are designed for durability, they still remain complex electronic devices.

  • Page 8: Features And Usage

    LED/buttons located above the sockets. 3.3” (84.0 mm) POWER 10A MAX (5V) 2.7” (68.0 mm) .375” (9.5 mm) 2.2” (55.8 mm) 2.5” (63.5 mm) TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 9 H RJ45 Internet Jack: The MediaHub Active Extender model includes wired Internet access point. Using a CAT5 cable, guest can connect their computers to the Internet. If this port will remain inactive, you may purchase an optional cover piece (Part # COV-RJ45S01). TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 10: Packing List(S)

    K Optional 2RCA to 3.5mm Y-Adapter CAB-4066D12 TA-7500L-US-x03 (PowerHub Extender) also includes: L TA-7500 PowerHub unit (Power/Data Panel) with connected Power Supply Cable M Extender Trim N Cat5 Ethernet Cable Additional Flat-Head Mounting Screws x4 TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 11 DTH-S01 for Oval MediaHub Trim DTH-R01 for Rectangle MediaHub Trim DTH-EXT for Rectangle MediaHub plus PowerHub Extender B Rear Door Screws C Rubber Tabs See Assemble Desktop Housing section for assembly instructions TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 12: Installation Instructions

    #2 Priority – Connect to RJP port (on most LG TVs) #3 Priority – Connect to VOD STB Serial Control port (such as Enseo) #4 Priority – Connect to TV Serial Control port TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 13: Lodgenet Ppv System

    LodgeNet PPV Systems (with ANY TV) Installing MediaHub Active to auto-switch a TV in a LodgeNet environment requires a TeleAdapt Protocol Converter Dongle (PCD), part number TA-8700-A01. What You Will Need: - TA-7630 or TA-7630/TA-7500L MediaHub Active Connectivity Panel Mini Connector - HDMI cable CAB-40543D5...

  • Page 14: Enseo Set Top Box

    STB) - Enseo STB and TV Remote Control For HD3000 STB firmware v.2.12.04+ / HD2000 STB firmware v.2.10.29.17+ Special note: Enseo HD2000 installation requires the TeleAdapt CAB-40583D58 Control Cable Figure 1: Cable connection diagram for MediaHub Active DIP Mode 01: DWN-UP installing MediaHub Active with Hospitality TV MediaHub Active Firmware Version: EN0.2T4...
  • Page 15 Music Mode (PC) is ON RJP Priority AV, PC and HDMI is 1, 2, and 3, respectively RJP AV Option is AV1 RJP HDMI Option is HDMI2 Set SI Vendor to ENSEO TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 16: Samsung North America

    For Samsung 2009 Series 5 LNnnB550K1H models with EXLINK serial port (TV firmware v. 1007+). For Samsung 2010 LED Series 4, LED Series 5, LCD Series 3, LED Series 4, LED Series 5 models with EXLINK serial port (factory-level firmware) TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 17 Samsung display. OR, you may install MediaHub Active’s serial control connection to the Enseo STB. See instructions below for installing the serial control connection to the Enseo HD3000 and Enseo HD2000 STB models. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 18: Panasonic North America

    BUTTON LOCK is OFF, TA CONTROL=OFF. For Series 30, also set CP MODE=YES. Note: For Panasonic Series 20 displays + Legacy OnCommand (OCV) STB system, TV requires firmware version 1.09. Follow instructions above but set TAControl=External. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 19 AUX panel. Set BAUD Rate to 9600. Go to Service Options, verify the HDMI Terminal Card is assigned to Slot 1. Figure 1: Cable connection diagram for installing MediaHub Active with Panasonic TV and an IMP tuner card. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 20: Philips North America

    Configure TV: Using guest remote control, enter the set-up menu by pressing <3>, <1>, <9>, <7>, <5>, <3>, <MUTE>. Ensure following is set: - Under PPV/VOD, set SerialXpress = YES - Under GUEST SETTINGS, set VGA = NO TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 21 Configure TV: Using guest remote control, enter the set-up menu by pressing <3>, <1>, <9>, <7>, <5>, <3>, <MUTE>. Under Communications, set SP-SP1 to RS232 Serial port. Select SAVE and Baud Rate will default to 9600. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 22: Lg North America

    LG North America Direct-to-TV installations with LG displays requires a TeleAdapt Protocol Converter Dongle (PCD), part number COT-MHDONGLE01. What You Will Need: - TA-7630 or TA-7630/TA-7500L MediaHub Active Connectivity Panel Mini Connector - HDMI cable CAB-40543D5 Mini Connector - PC Audio cable CAB-40633D5...
  • Page 23 Figure 1: Cable connection diagram for installing MediaHub Active to LG Serial Control using the PCD. Note: Dotted cables in diagram are packaged with the PCD, solid black cables are packaged with the MediaHub Active. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 24: Manual Switch Mode - With Any Hospitality Tv

    VOD/PPV/FTG channel roster. Using the guest remote control, guests simply change the channel to the number assigned to the MediaHub’s AV port they wish to use. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 25 Using the guest remote control, guests simply follow the on-screen prompts to play content from the HDMI, Composite AV or PC/Paired Audio inputs of the MediaHub panel. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 26: Troubleshooting

    4 Ensure the proper TV configuration was set between the MediaHub Active and TV/STB (baud rate, control settings, etc.) 5 Ensure the proper firmware versions and video driver versions are those that are integrated with your TV brand. Contact TeleAdapt technical support. TA-7630 and TA-7730 Installation Manual...

  • Page 27: Protocol Converter Dongle Troubleshooting

    Toll-Free 1 877 835 3232 x319 (in US and Canada) Main 1 775 232 5044 Email ric.jones@us.teleadapt.com For EMEA Technical Support Main +44 1923 810235 Email info@teleadapt.com For APAC Technical Support Main +82 10 8566 0809 Email dg.hong@teleadapt.com TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 28: Flush-Mount Cut Measurements

    3.622” (92 mm) min 7.244” (184 mm) min 3.661” (93 mm) max 7.322” (186 mm) max TA-7630 + TA-7500L | MediaHub Active with PowerHub Extender Drawing below is not to scale. Click here to download 100% scale cut sheets. TA-7630 and TA-7730 Installation Manual...

  • Page 29: Assemble Flush Mount Mediahub Active With Power/Data

    7 | Secure four outer screws. 8 | Slide end caps onto MediaHub Extender Figure 3: Secure panels with four CENTER screws first, then snap on trim and secure outer screws. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
  • Page 30 K Cat5 Ethernet Cable D Desktop Housing E Housing rear door screws F 4 Rubber Tabs G Mounting Screws (4 TA-7630, 8 TA-7630/TA-7500L) H Cable Ties Ensure DIP Switches on back of MediaHub Active are set according to your installation instructions.
  • Page 31 MediaHub Active uses four (4) screws. MediaHub Active with PowerHub Extender uses eight (8). 9 | Secure Desktop Housing rear door(s) with screws provided. 10 | Slide end caps back onto trim. Figure 2: Secure rear housing doors. TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...

  • Page 32: Technical Support

    Toll-Free: 1 877 835 3232 x319 (in US and Canada) Main: 1 775 232 5044 Email: ric.jones@us.teleadapt.com For EMEA Technical Support Main: +44 1923 810235 Email: info@teleadapt.com For APAC Technical Support Main: +82 10 8566 0809 Email: dg.hong@teleadapt.com TA-7630 and TA-7730 Installation Manual Last Revised: 9/30/11 10:47 AM...
