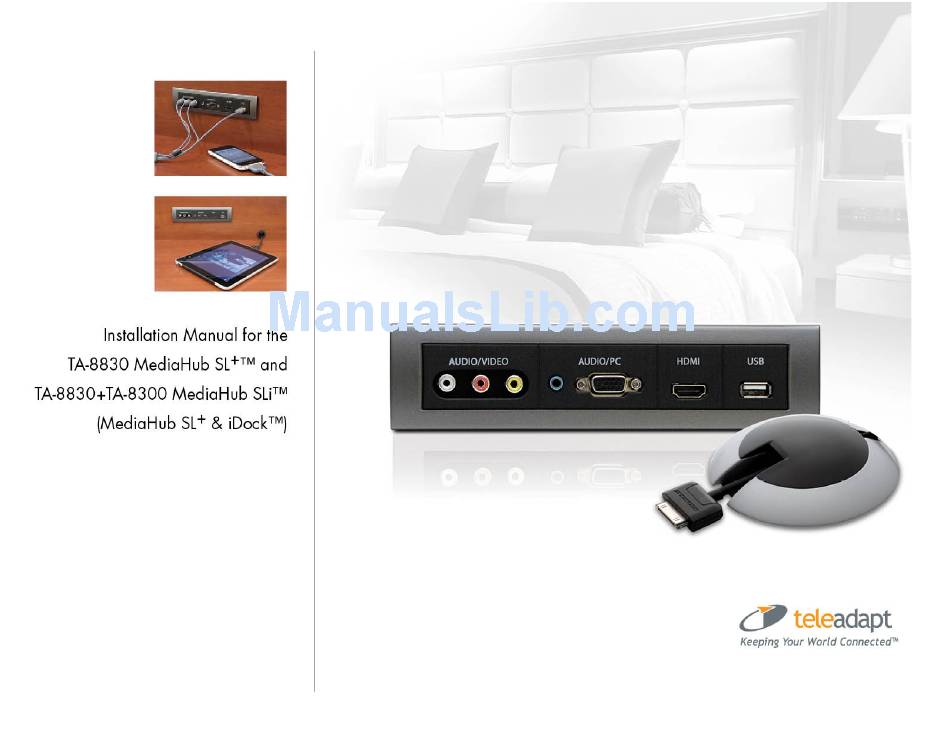

TeleAdapt TA-8830 MediaHub SL+ Installation Manual

Mediahub sl+ & idock
Hide thumbs Also See for TA-8830 MediaHub SL+:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-8830 MediaHub SL+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TeleAdapt TA-8830 MediaHub SL+

  • Page 2: Table Of Contents

    Table of Contents Product Introduction ............3 Safety Precaution Information ..........4 Definitions ................6 Electrical Requirements............7 Care and Maintenance ............7 Features and Usage ............9 Standard Auto-Sensing/Auto-Switching Feature ......9 Using MediaHub SL ..............9 Packing List(s)..............11 Installation Instructions ............12 LG North America ..............13 LodgeNet PPV ................15 Enseo Set Top Box ..............16 Samsung North America............18 Panasonic North America ............21...
  • Page 3: Product Introduction

    Product Introduction Thank you for choosing the TeleAdapt MediaHub™ for your in-room entertainment or conference room connectivity needs. MediaHub allows business and leisure travellers to use the in-room TV display as their personal entertainment or projection screen for enjoying their personal standard- and high-definition (HD) video games, music playlists, movies, TV shows, photos, business presentations and more from their portable electronic devices.
  • Page 4: Safety Precaution Information

    Safety Precaution Information When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use.
  • Page 5 prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
  • Page 6: Definitions

    Definitions Auto-sensing – the automatic detection of a device plugged into an audio/video port of the MediaHub. For example, MediaHub will auto-sense a Composite AV source when a device is connected to the 3RCA ports and begin playing the Composite AV Out content.
  • Page 7: Electrical Requirements

    5-volt power source, which can be achieved through the USB port on most hospitality TVs. Care and Maintenance Though TeleAdapt MediaHubs are designed for durability, they still remain complex electronic devices. As such, care needs to be taken with how they are handled. The following are tips to care for your system: ...
  • Page 8 Disposal The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the European Union all electrical and electronic products must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste.
  • Page 9: Features And Usage

    Features and Usage Standard Auto-Sensing / Auto-Switching Feature MediaHub SL has been engineered to work in tandem with an Auto-Switching Model (ASM) for the auto-sensing and input switching function. Hotel guests can plug in their personal media devices such as a game console, camera, laptop, etc.
  • Page 10 D HDMI: Using an HDMI cable, provides high definition video and audio playback through the in-room TV. Compatible with newer generation laptops, smartphones, or digital video cameras that have an HDMI-out, mini-HDMI out or micro-HDMI out. Also compatible with non-HDMI devices using an HDMI converter cable such as VGA-to-HDMI or MDP-to-HDMI.
  • Page 11: Packing List(S)

    Packing List(s) Note: To ensure proper installation, you will need the TV/STB remote control. TA-8830 MediaHub SL Connectivity Panel MediaHub SL Installation Kit (3.5m cables) HDMI Cable VGA PC Video Cable CAT5 Cable USB Power Cable AV-to-USB Power Supply Adapter (includes Interchangeable Tips for US, EU, UK, AUS) ASM Installation Kit (2 ft.
  • Page 12: Installation Instructions

    Installation Instructions The ASM Installation Kit facilitates the auto-switching functionality for MediaHub SL+. Please refer to the following pages for installing MediaHub SL with specific brands of TV and STB that support control protocols for auto-switching communication. For all noted TV model numbers, “nn” denotes the screen size. Refer to the ASM DIP Switch Chart below for settings required for your specific TV/VOD environment.
  • Page 13: Lg North America

    LG North America Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation choices below. Connect the cables between the MediaHub SL, ASM and LG display according to schematic shown for your installation choice. Plug the power supply into a wall power socket using the correct plug for your country.
  • Page 14 Follow cable connection diagram below. ASM DIP Mode: UP-UP-DWN-DWN Configure TV Menu Settings: None required. Special Notes: TeleAdapt recommends using the RJP connection for all LG TVs. However, some recent LG TV models (2011 and newer) may not support auto-switching to the Composite AV In, VGA and PC Audio sources.
  • Page 15: Lodgenet Ppv

    LodgeNet PPV Systems (with ANY TV) Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation choices below. Connect the cables between the MediaHub SL, ASM and TV and STB according to schematic shown for your installation choice. Plug the power supply into a wall power socket using the correct plug for your country.
  • Page 16: Enseo Set Top Box

    Enseo Set Top Box (with ANY TV) Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation choices below. Connect the cables between the MediaHub SL, ASM and TV and STB according to schematic shown for your installation choice.
  • Page 17 Panasonic North America Series 20/12 + Enseo HD2000/3000 Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>), set MODE=ON, TA Control=EXTERNAL, BUTTON LOCK is OFF. LG North America + Enseo HD2000/3000 Configure TV: Plug in DATA jack to TV’s DATA port. TV will automatically power off and enter Enseo Mode after 3 minutes of inactivity.
  • Page 18: Samsung North America

    Samsung North America Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation choices below. Connect the cables between the MediaHub SL, ASM and Samsung display according to schematic shown below. Plug the power supply into a wall power socket using the correct plug for your country. Power ON the TV and configure the TV settings according to the model-specific requirements listed.
  • Page 19 For Samsung 2011-2013 North America Models For Samsung 2011 LED and LCD Hospitality Series displays with EXLINK serial port (factory-level firmware). Configure TV: Turn power ON. With Samsung remote control, enter the menu by pressing <MUTE>, <1>, <1>, <9>, <ENTER> in order. Ensure the following is selected: Hospitality Mode is INTERACTIVE SI Vendor is SAMSUNG...
  • Page 20 Enseo Installation Instructions. For Samsung North America Models and an External Enseo STB In this environment, TeleAdapt recommends connecting the MediaHub SL control cable to the Enseo STB. See instructions below for installing the serial control connection to the Enseo HD3000 and Enseo HD2000 STB models.
  • Page 21: Panasonic North America

    Panasonic North America Special Notes: The ASM Installation Kit contains an RS232 Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation 3.5mm control cable. Use this cable for the choices below. TV’s Control connection. Connect the cables between the MediaHub SL, ASM and Samsung display according to schematic The TV’s Control port does not draw any power shown below.
  • Page 22 These models require an Enseo IMP- or DTB- Tuner Card in Slot 2/3 as well as the Panasonic TY-FB10HMD Dual HDMI Terminal Card in Slot 1. Audio 2RCA to 3.5mm Y-Adapters (TeleAdapt CAB-4066D12 ) are also required for this application.
  • Page 23: Philips North America

    Philips North America Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the installation choices below. Connect the cables between the MediaHub SL, ASM and Samsung display according to schematic Special Notes: shown below. The ASM Installation Kit contains an RS232 Plug the power supply into a wall power socket using the correct plug for your country.
  • Page 24 Philips HFL 2011 Models For nnHFLL/F7, nnHFLD/F7, nnHFLF/F7, and nnHFLH/F7 models. This installation requires Philips TV firmware version 1.13. Be sure to connect cables accordingly: - MediaHub HDMI cable to TV’s REAR HDMI1 port - CVBS to TV’s REAR AVIN ports - PC Video to TV’s SIDE VGA - PC Audio to TV’s SIDE PC Audio 3.5mm jack (using adapter) Configure TV: Using guest remote control, enter the set-up menu by pressing...
  • Page 25 2008 and Other Legacy Philips HFL/HF Models Legacy Philips HFL/HF models use a 3.5mm jack for the AVIN input as well as the PCAudioIN input. Connect MediaHub SLi to these Philips TVs require a 2RCA-to-3.5mm adapter for PCAudio connection and a 3RCA-to-3.5mm adapter for the CVBS connection.
  • Page 26: Troubleshooting

    Technical Support For North and South American 24/7 Technical Support Toll-Free: 1 877 835 3232 x319 (in US and Canada) Main: 1 775 232 5044 Email: ric.jones@us.teleadapt.com For EMEA Technical Support Main: +44 1923 810253 Email: info@teleadapt.com For APAC Technical Support Main: +82 10 8566 0809 Email: dg.hong@teleadapt.com...
  • Page 27: Flush-Mount Measurements

    MediaHub SL Measurements TA-8830 | MediaHub SL Drawing below is NOT to scale. For a 100% scale cut sheet, please contact TeleAdapt. TA-8830+TA8300 Installation Manual Last Revised: 3/26/12...
  • Page 28: Add-On Accessories

    flat panel TV or sound system. TeleAdapt's Made for iPod/iPhone/iPad licensed cable provides a simple "one size fits all" docking station for any model iDevice. Installation kit includes Auto-Sensing Module for automatic TV- switching feature with hospitality's most popular TV/VOD brands as well as a USB-to-AC power adapter for convenient device charging.
  • Page 29 If problem persists, please contact one of our regional technical support teams: For North and South American 24/7 Technical Support Toll-Free: 1 877 835 3232 x319 (in US and Canada) Main: 1 775 232 5044 Email: ric.jones@us.teleadapt.com TA-8830+TA8300 Installation Manual Last Revised: 3/26/12...
