Special Notes:
LG TVs RJP protocol shares the PC Audio input
with the AV1 input. Therefore, no need to
connect the PC Audio cable connection to the
TV.
Use the RJ45 male-to-male cable for the RJP
connection.
The RJP port draws enough power for the ASM.
Therefore, no need to connect the ASM's USB
Power In.
Be sure the ASM DIP Switches are set to the
appropriate positions:
13
LG North America
|
1
Ensure the DIP Switch Settings on ASM are in the appropriate positions according to the
installation choices below.
2
|
Connect the cables between the MediaHub SL, ASM and LG display according to schematic
shown for your installation choice.
|
3
Plug the power supply into a wall power socket using the correct plug for your country.
|
4
Power ON the TV and configure the TV settings according to the
model-specific requirements below.
|
5
After all menu settings and AV connections are done, power cycle the TV to lock
in settings.

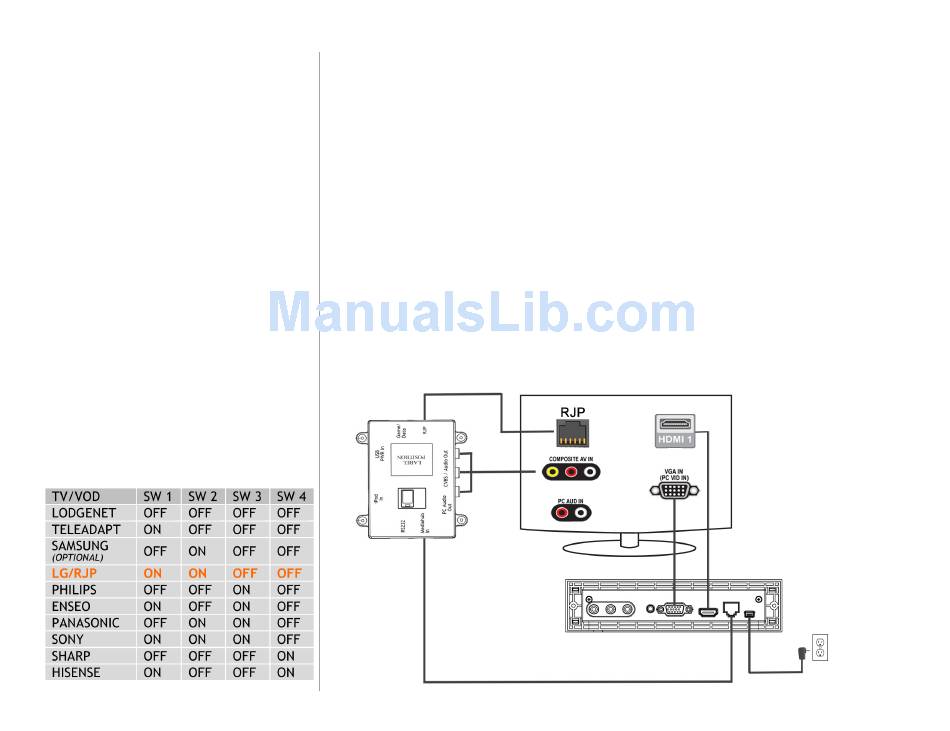

For LG hospitality displays implementing legacy RJP protocol (recommended)
Follow cable connection diagram below.
ASM DIP Mode: Not Applicable, ASM supports RJP protocol in any DIP setting
Configure TV Menu Settings: With LG remote control, enter the menu by
pressing <MENU> at least five times, until TV no longer responds, then press
<9>, <8>, <7>, <6>, <ENTER>. Ensure the following is selected:
Item 040 CAMPORT = 00
Item 093 RJP AVAIL = 1
TA-8830+TA8300 Installation Manual
Last Revised: 3/26/12

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA8300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TeleAdapt TA8300

  • Page 1 Use the RJ45 male-to-male cable for the RJP connection. The RJP port draws enough power for the ASM. Therefore, no need to connect the ASM’s USB Power In. Be sure the ASM DIP Switches are set to the appropriate positions: TA-8830+TA8300 Installation Manual Last Revised: 3/26/12...
  • Page 2 ASM DIP Mode: UP-UP-DWN-DWN Configure TV Menu Settings: None required. Special Notes: TeleAdapt recommends using the RJP connection for all LG TVs. However, some recent LG TV models (2011 and newer) may not support auto-switching to the Composite AV In, VGA and PC Audio sources.
