TeleAdapt TA-7650 Manual

EXLINK
Adapter

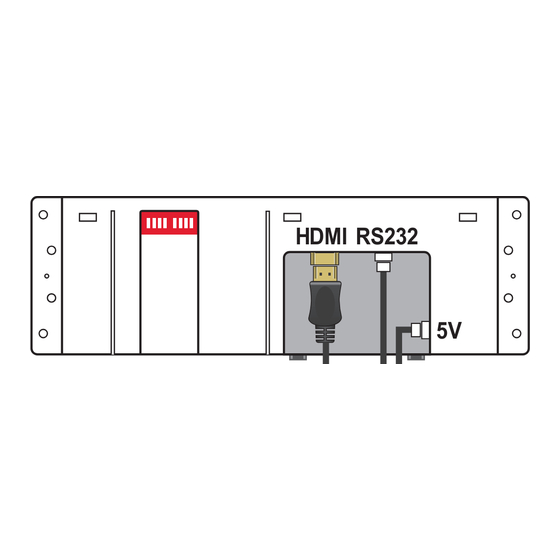

HDMI RS232
5V

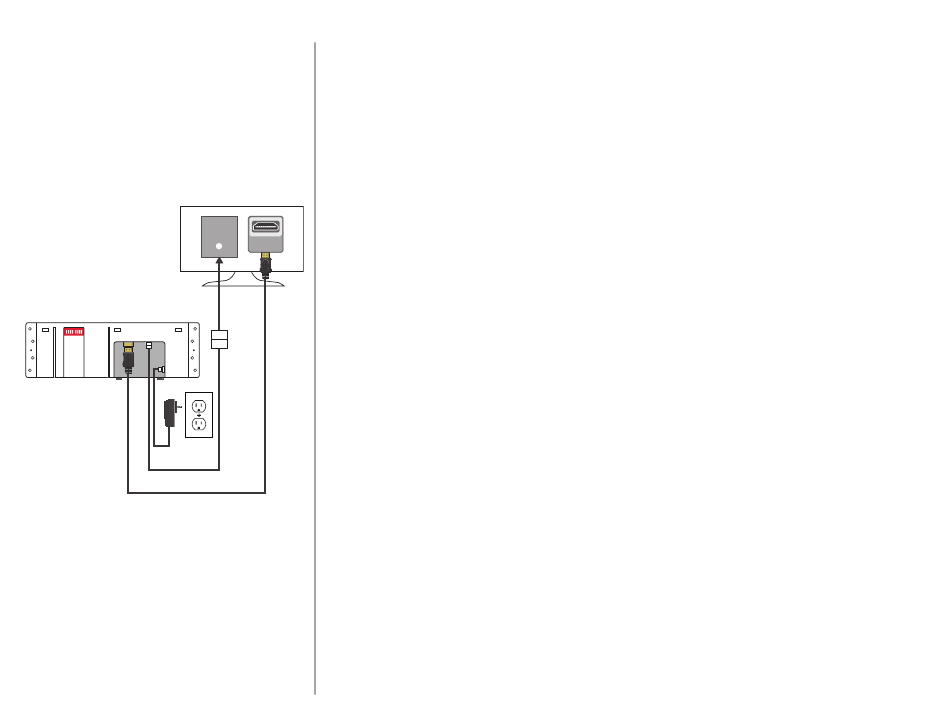

Figure 1: Samsung direct-to-TV cable
connection diagram.
14
Samsung North America

What You Will Need:

- TA-7650 or TA-7650/TA-7500L
MediaHub HD Connectivity Panel
Power Supply Cable (Note: MediaHub with Power/Data Extender model includes
TWO power supplies – one for media panel and one for power panel)
Ethernet Cable (for MediaHub with Power/Data Extender model only)
- MediaHub Cable Kit
HDMI Cable (3m)
RS-232 Cable
DB9-3.5mm Adapter
HDMI 2
-
Samsung Hospitality Display & Remote Control

Samsung Direct-to-TV Installation Instructions

Follow cable connection instructions illustrated in Figure 1. Then configure the TV and
MediaHub HD according to the model-specific requirements on the following page.

For Samsung 2011 North America Models

For Samsung LED and LCD Hospitality Series displays with EXLINK serial port (factory-
level firmware)
MediaHub HD DIP Mode B7: UP-DWN-UP-UP -- DWN-UP-UP-UP
MediaHub HD Firmware Version: 1.23+
MediaHub HD Video Driver Firmware: 3.26+
Configure TV: Using Samsung remote control, enter the menu by pressing
<MUTE>, <1>, <1>, <9>, <ENTER>. Ensure the following is selected:
Hotel Mode = ON, RJP HDMI Option = HDMI2 and set appropriate SI Vendor.
*If using SI Vendor = ENSEO, please refer to Enseo Installation Instructions section.

For Samsung 2009/2010 North America Models

For Samsung Series 4 LN nn B450C4H and LN nn B457C6H models with EXLINK serial port
(TV firmware v.1011.1+)
For Samsung Series 5 LN nn B550K1H models with EXLINK serial port
(TV firmware v. 1007+)
TA-7650 and TA-7750 Installation Manual
Last Revision: 9/30/11 11:16 AM
