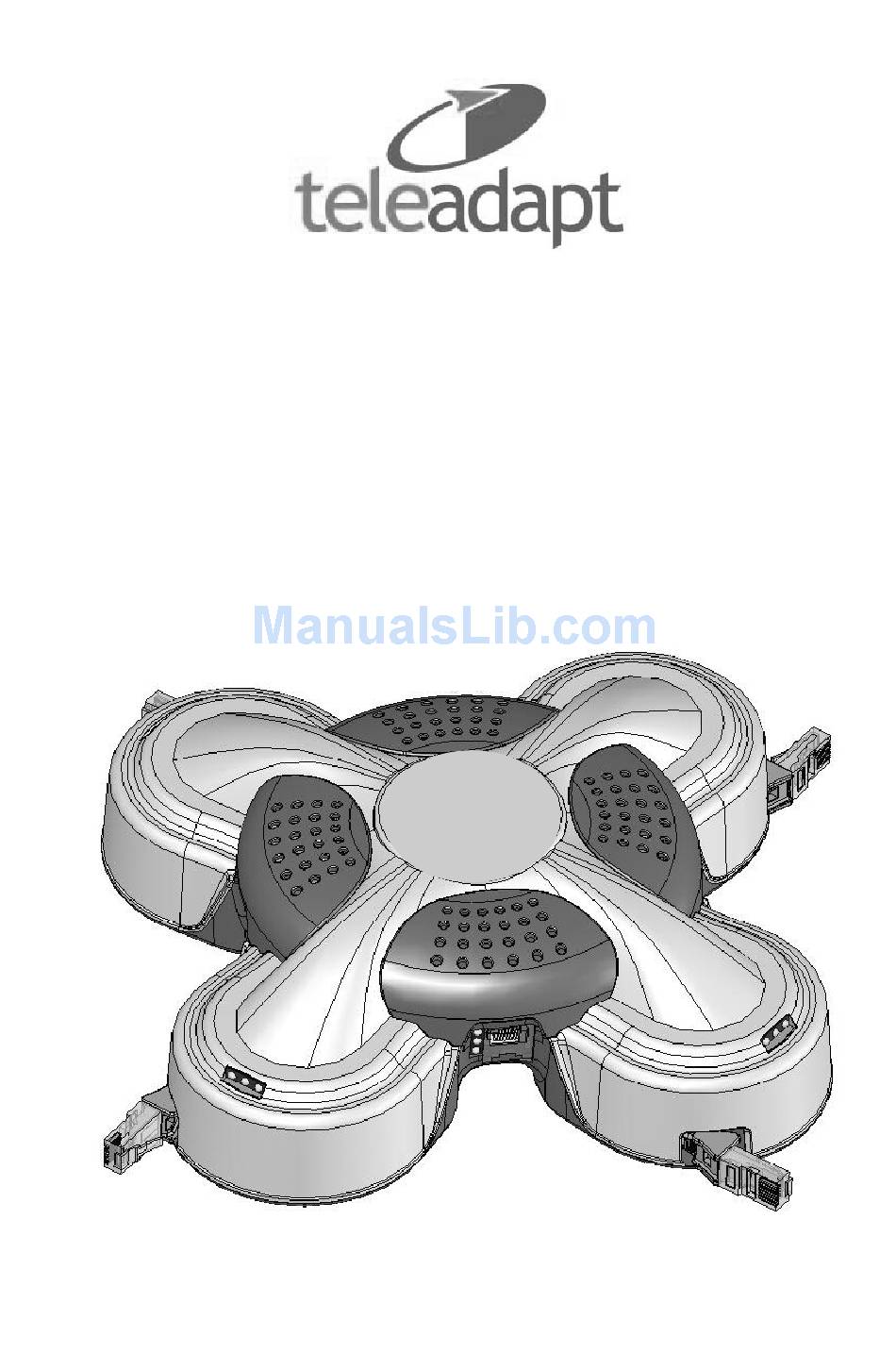

- Page 1 TA-6500 ConferenceHub™ 4-Port Networking Switch User’s Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 Thank you for purchasing the TA-6500 ConferenceHub™ 4-Port Conference Networking Switch by TeleAdapt. TA-6500 ConferenceHub™ 4-Port Conference Networking Switch Introduction The TA-6500 ConferenceHub™ 4-Port Conference Networking Switch provides 4 10/100Mbps ports with fully retractable LAN cables. The TA-6500 ConferenceHub™ was designed for easy installation and high...
-
Page 4: Key Features
Key Features 4 retractable 10/100Base CAT5 compliant LAN cables with RJ45 connectors. Auto-learning of networking MAC address-based security configurations Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 100Mbps bandwidth on each port Store & Forward switching methods IEEE 802.3x flow control for Full-duplex Zero-Packet Loss Back-pressure flow control for Half-duplex... -
Page 5: Package Contents
Package Contents Before you start to install the TA-6500 ConferenceHub™, please verify your package contains the following items: One TA-6500 ConferenceHub™ One Power Adapter One LAN Patch Cord One User’s Manual ConferenceHub™ Note: If any of these items is found missing or damaged, please contact TeleAdapt for replacement. -
Page 6: Bottom Layout
LED Indicators of the TA-6500 ConferenceHub™ Color Power Yellow LINK/ACT. Yellow 10/100M Green Green Status Description Power on Power off 10/100Mbps port for connection 10/100Mbps port link fail Flashing 10/100Mbps for data activating Port is on the 100M status Port is on the 10M... - Page 7 One is to connect to the main LAN line. The other is used for daisy- chaining or as a fifth 10/100Mbps port. Power DC 7.5V Connect the power supply to both the wall and to the base of the TA-6500 ConferenceHub™ unit.
- Page 8 RJ45 jack on each unit. Instructions for Installation Upon removing TA-6500 ConferenceHub™ from the box, place the TA-6500 on a flat, tabletop surface. Connect the power adapter to the TA-6500 and to the power source (frequently found on the wall).
- Page 9 Plug the network connection into one of the two female RJ45 connectors on the base of the TA-6500. When the LEDs of the network connection and power light, you may connect any computer to the TA-6500 by pulling the retractable cable and connecting it to the network port on the computer.
-
Page 10: Technical Specifications
Technical Specifications Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX Number Of Retractable Cables 4 x CAT5 compliant (10/100Mbps) spooled cables at extended length of 167 cm (5.5 feet) Network Transmission Media 10Base–T CAT 3, 4, 5 UTP/STP 100Base–TX CAT 5 UTP/STP Network Status Monitoring LEDs Per port: LINK/ACT, 10/100M, FDX System: POWER... - Page 11 21.3 cm _ 21.3 cm _ 6.9 cm 8.4 inches _ 8.4 inches _ 2.7 inches 13. Weight 0.84 Kg 1.86 lbs 14. Safety & EMI Certificates CE & FCC-B Support and Service For Customer Support, please visit http://www.teleadapt.com or e-mail: info@teleadapt.com...
- Page 12 TeleAdapt. The customer shall be responsible for all costs of shipping, handling, and insurance, both to and from the factory of TeleAdapt, and shall be required to prepay such costs. TeleAdapt shall use reasonable efforts to repair or replace any TA-6500 ConferenceHub™...
- Page 13 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and/or country to country. TeleAdapt reserves the right to modify or discontinue, without prior notice to you, any model or style of TA-6500.
- Page 16 Part number: PRJ-17-010 ConferenceHub™ Ver.1.0, User Manual © 2007 TeleAdapt Group All rights reserved.
