CDVI Krypto K3 Quick Start Installation Manual

K3
DESFire EV2 High-Security
®
Keypad and card reader
Radio equipment for access control applications.

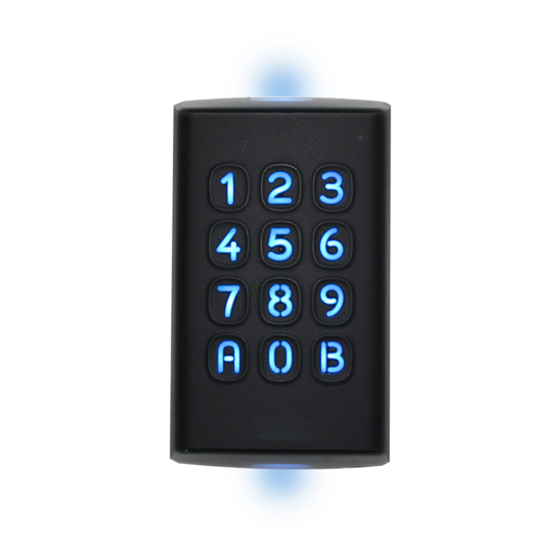

CDVI's KRYPTO K3 card reader/keypad makes
high security easy!
KRYPTO K3 Mifare
®
combined with CDVI EV2 credentials work right
out of the box. No fastidious and complicated
programming required!
Factory-programmed,
CDVI protocol and encryption keys ensure
end-to-end encryption between the card, read-
er/keypad and A22K door controller.
• Bi-technology, keypad and reader
• Easy to use & FULLY secure CDVI protocol
using authentication with diversified keys.
• Reads 13.56 MHz Mifare
DESFire EV2 credentials
• OSDP-2 compatible
• Bluetooth
• Up to 4 in. (10cm) read range
• Power requirements: 12VDC
• Current consumption : 200mA
RFID Frequency band : 13,553-13,567 MHz / Bluetooth Frequency band: 2,402 - 2,480 GHz
Maximum transmitted power <60dBμA/m
DESFire EV2 readers
® ®
industry-unique secure
Classic and
®
w w w . c d v i g r o u p . c o m
QUICK START
INSTALLATION GUIDE
RED Certification
CE Certification
-40°C to +70°C
IP65
IK10
WEEE
We, CDVI, declare that the K3 radio equipment complies with
directive 2014/53/UE. The full text of the EU declaration is
available at www.cdvi.com
80
10
YEAR
WARRANTY
22,6
