4-3 PLL CIRCUITS (RF UNIT)
A PLL circuit provides stable oscillation of the transmit
frequency and receive 1st LO frequency. The PLL output
compares the phase of the divided VCO frequency to the
reference frequency. The PLL output frequency is controlled
by the divided ratio (N-data) of a programmable divider.
The PLL circuit contains the TX VCO circuit (Q58, D38,
D48) and RX VCO circuit (Q59, D39, D45–D47). The oscil-
lated signal is amplified at the buffer-amplifiers (Q60, Q29)
and then applied to the PLL IC (IC3, pin 8).
The PLL IC contains a prescaler, programmable counter,
programmable divider and phase detector, etc. The entered
signal is divided at the prescaler and programmable counter
section by the N-data ratio from the CPU. The divided signal
is detected on phase at the phase detector using the refer-
ence frequency.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.
A portion of the VCO signal is amplified at the buffer-ampli-
fier (Q28) and is then applied to the receive 1st mixer (Q12)
or transmit buffer-amplifier circuit (Q6) via the T/R switches
(D6, D17).

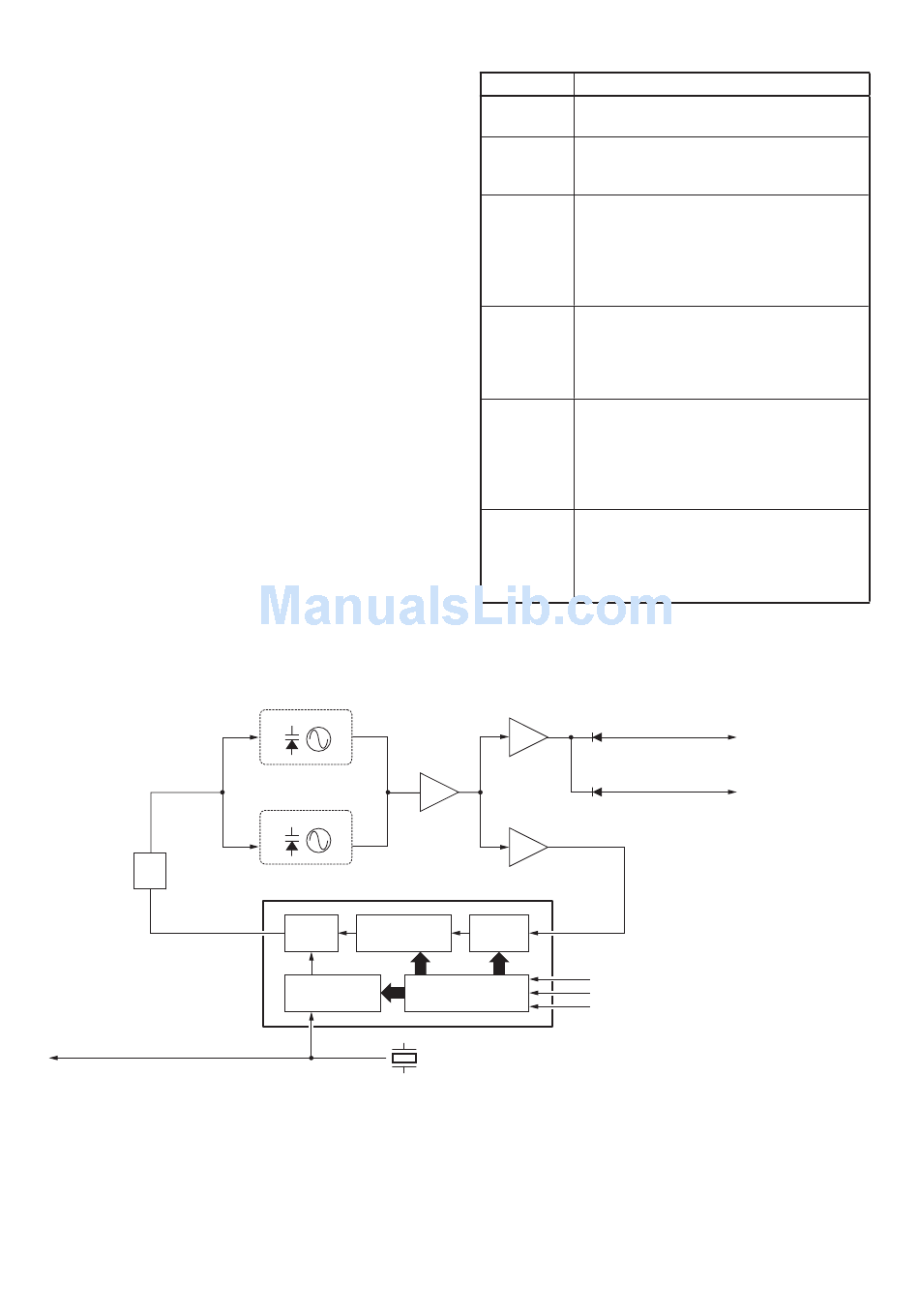

• PLL CIRCUIT

Loop
filter
"2nd LO" signal
to the FM IF IC
RX VCO
Q59, D39, D45–D47
TX VCO
Q58, D38, D48
Phase Programable
9
detector counter
Programable
divider
14

4-4 POWER SUPPLY CIRCUITS

VOLTAGE LINES (MAIN UNIT)
LINE
The voltage from the connected DC power
HV
supply.
The same voltage as the HV line or battery
VCC voltage through the power switch (Q24, D19,
D22).
Common 5 V converted from the HV line at
the CPU5V regulator circuit (LOGIC unit;
IC3). The output voltage is applied to the
CPU 5
CPU (LOGIC unit; IC1), reset IC (LOGIC
unit; IC2) and EEPROM (LOGIC unit; IC7),
etc.
Common 5 V converted from the VCC line
by the +5 V regulator circuit (LOGIC unit;
+5V IC16, Q4, Q6, Q7, D10). The output voltage
is applied to the PLL IC (RF unit; IC3) and
D/A convertor IC (RF unit; IC17), etc.
Transmit 5 V controlled by the T5V regula-
tor circuit (RF unit; Q7, Q8, D8) using TXC
signal from the CPU (LOGIC unit; IC1). The
T5V
output voltage is applied to the buffer ampli-
fier (RF unit; Q6) and pre-driver (RF unit;
Q4), etc.
Receive 5 V controlled by the R5S regulator
circuit (Q20) using R5C signal from the CPU
R5S (LOGIC unit; IC1). The output voltage is ap-
plied to the RF amplifi er (RF unit; Q12) and
1st IF amplifi er (RF unit; Q13), etc.
Buffer
D6
Q28
Buffer
Q60
D17
Buffer
Q29
IC3 (TB31207)
8
Prescaler
3
PLST
4
Shift register SO
5
SCK
X2
29.6 MHz
