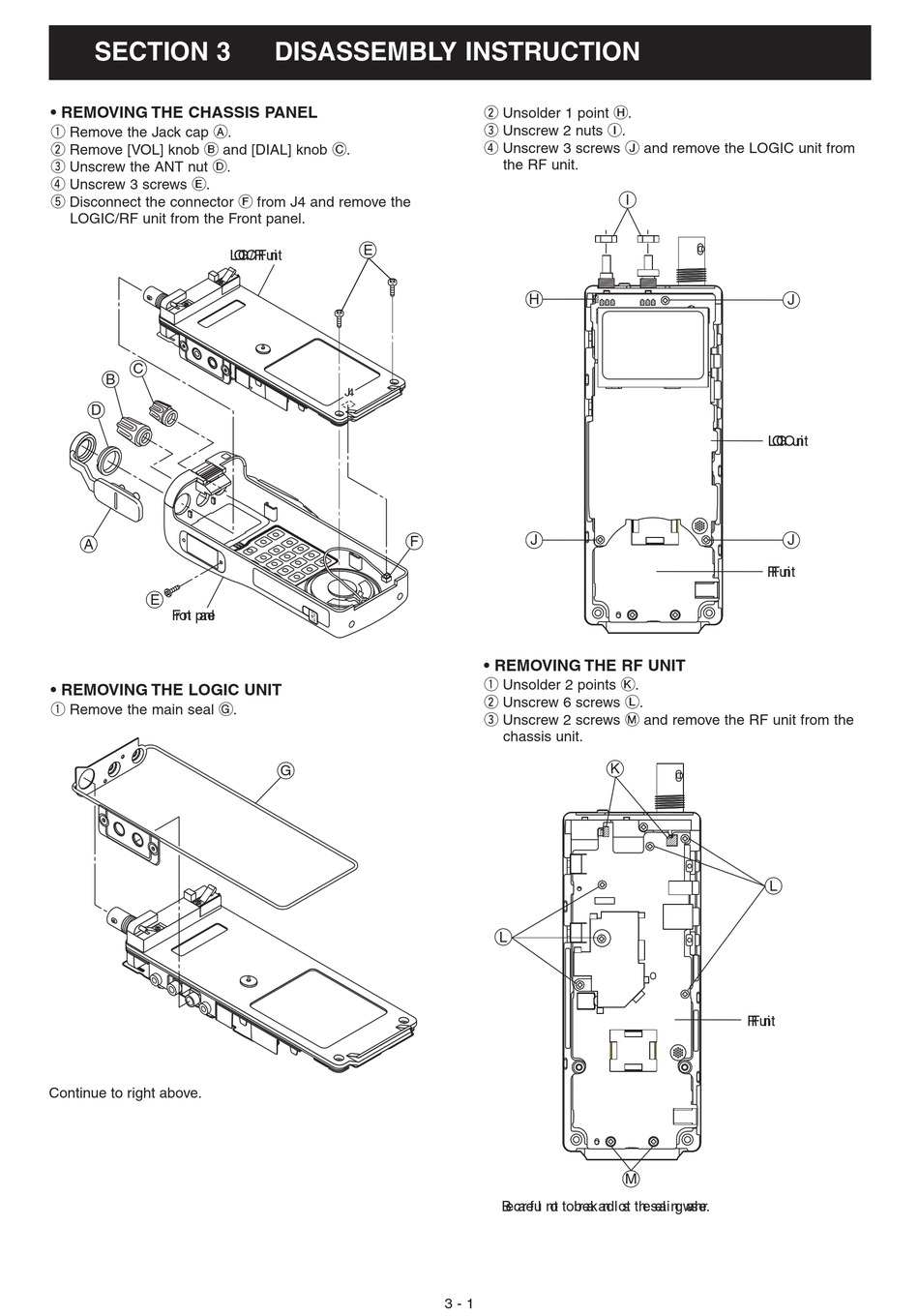

SECTION 3
• REMOVING THE CHASSIS PANEL
1 Remove the Jack cap A.
2 Remove [VOL] knob B and [DIAL] knob C.
3 Unscrew the ANT nut D.
4 Unscrew 3 screws E.
5 Disconnect the connector F from J4 and remove the
LOGIC/RF unit from the Front panel.
C
B
D
A
E
F ro n t p a n e l
• REMOVING THE LOGIC UNIT
1 Remove the main seal G.
Continue to right above.
DISASSEMBLY INSTRUCTION
E
L O G IC /R F u n it
J 4 J 4
G
2 Unsolder 1 point H.
3 Unscrew 2 nuts I.
4 Unscrew 3 screws J and remove the LOGIC unit from
the RF unit.
H
J
F
• REMOVING THE RF UNIT
1 Unsolder 2 points K.
2 Unscrew 6 screws L.
3 Unscrew 2 screws M and remove the RF unit from the
chassis unit.
L
B e c a re fu l n o t to b re a k a n d lo s t th e s e a lin g w a s h e r.
3 - 1
I
L O G IC u n it
R F u n it
K
L
R F u n it
M
J
J
