Panel Explanation; For Vigor2912 - Draytek Vigor2912 Series Quick Start Manual

1 . 1 P a n e l E x
1 . 1 P a n e l E x
1 . 1 . 1 F o r V i g
1 . 1 . 1 F o r V i g

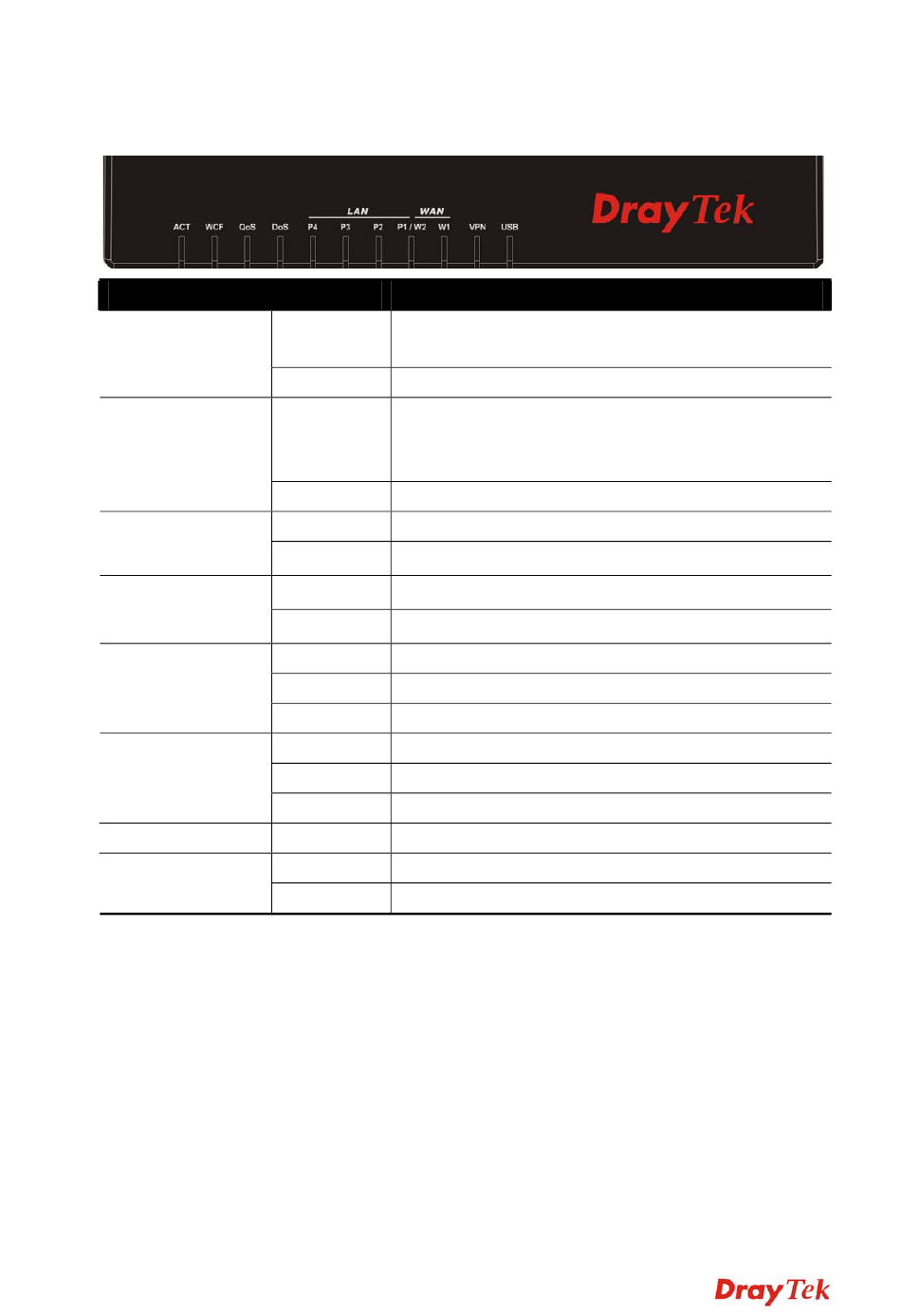

LED
ACT (Activity)
WCF
QoS
DoS
LAN (P4~P1)
WAN(W2~W1)
VPN
USB
Vigor2912 Series Quick Start Guide
p l a n a t i o n
p l a n a t i o n
o r 2 9 1 2
o r 2 9 1 2
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On The Web Content Filter is active. (It is
enabled from Firewall >> General
Setup).
Off The Web Content Filter is inactive.
On The QoS function is active.
Off The QoS function is inactive.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
Blinking The data is transmitting.
On The VPN tunnel is active.
On USB device is connected and ready for use.
Blinking The data is transmitting.
2
