Fill Tires; Fold The Power Wheelchair - Excel X-power 10 User Manual

TIRE INFLATION

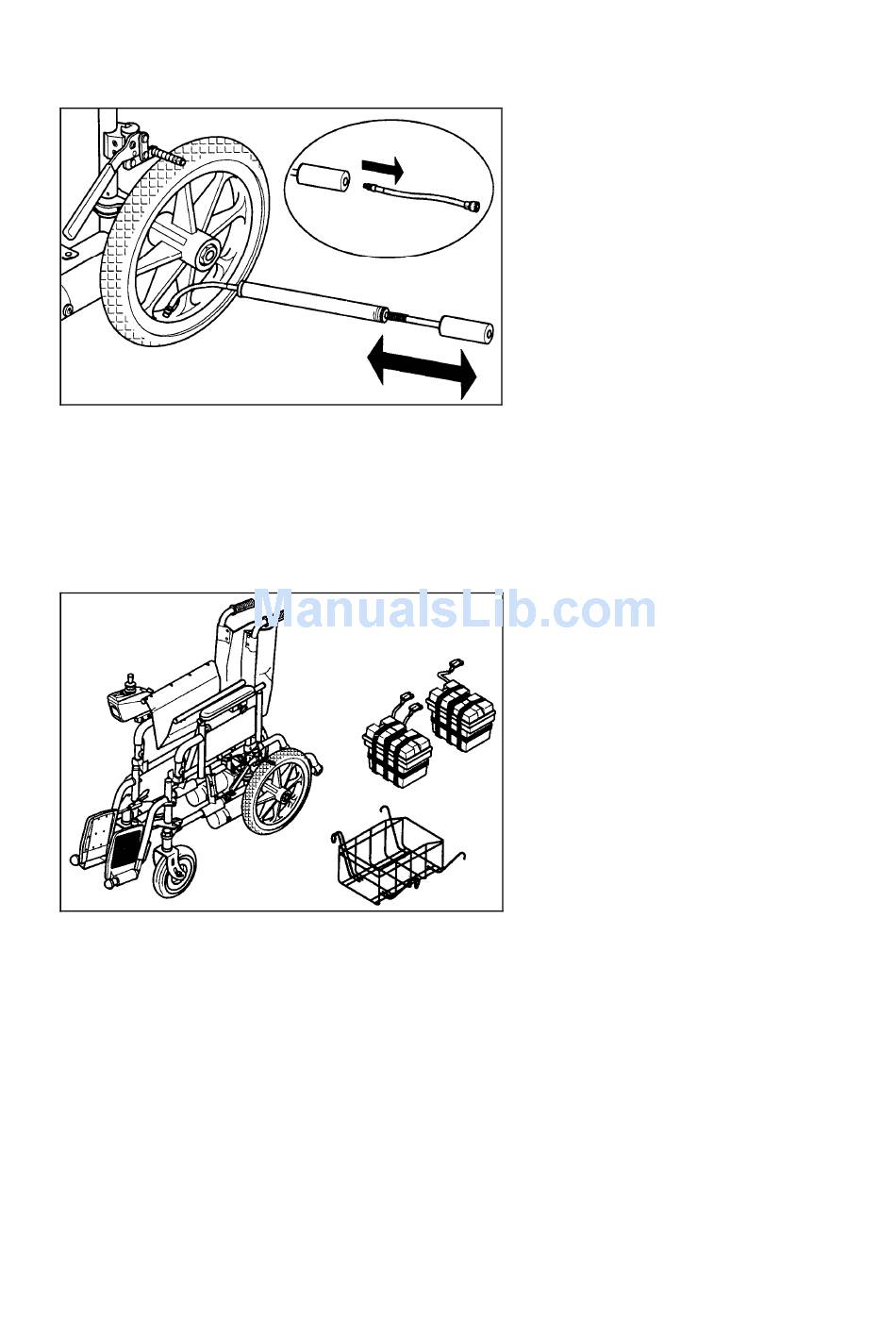

Picture 18
1. Take out the connection adaptor from the air pump (picture 18)
2. Insert the adaptor to the pump
3. Start to inflate the tire to your desired (30~60 psi) pressure
FOLDING THE POWERCHAIR
Picture 19
The powerchair can be folded to a neat and compact size within minutes.
1. Ensure that the master socket is disconnected
2. Fold the two footrest plates upward
3. Loosen the star knob for adjustment of the controller position and slide the
controller bak as far as it will go. Tighten the star knob
4. Disconnect the battery cable connector from the controller
5. Remove battery boxes, then remove basket
6. Take a firm hold of the seat support tubes on each side of the seat and pull
upward. The two sides will accore together to a compact stowing size
7. If the folded power powerchair is stowed of transported in a horizontal position,
place it so that the side with controller is uppermost to prevent damage to the
controller
15
