Summary of Contents for Kicker KICKER LivinLoud SX Series Class D SX1250.1
- Page 2 Kicker to vali- This installation manual contains valuable infor- date your warranty.
-

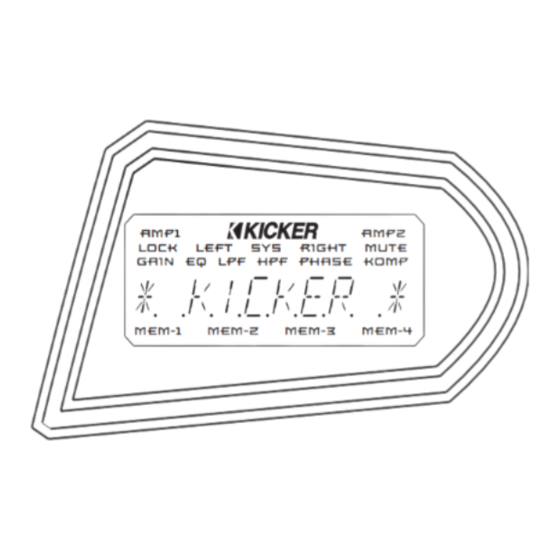

Page 3: Vfd Display
AMP1 AMP2 LOCK LEFT RIGHT MUTE GAIN EQ LPF HPF PHASE KOMP kicker AMP2 MEM-1 MEM-2 MEM-3 MEM-4 Only available in four channel amps. - Indicates the amplifier controls are locked out and LOCK not usable. - Page 4 SX .1 Series Amplifiers Mounting Remove When selecting a location to mount your Kicker amplifier be sure it is structurally sound and that there are no items behind the area that could be damaged by the screws. Check for wiring, brake lines, fuel lines, gas tanks, etc.
-
Page 5: System Diagrams
Hi-Lo level signal power connection to the battery. Adding an additional ground adapter. See your Kicker dealer for more details on this. wire between the car battery’s negative post and the car chas- sis of this same gauge (or larger) is also recommended. - Page 6 BATTERY HOME These are just a few of the many ways you can use your SX.1 series Kicker amplifier. These system diagrams are designed to give you a basic understanding of the most com- mon uses for this amplifier. For more complex systems please visit your local authorized Kicker dealer.
- Page 7 BACK VIEW Mounting Surface The Output (Pre Amp Signal Transfer) RCA jacks allow you to send the incoming signal from one Kicker SX series amplifier SIDE VIEW to another amplifier or processor without the need for Y cables. The signal from the PAST jacks is identical to the signal fed to the amplifier via its RCA input jacks and is not affected by any of the amplifier’s built-in digital signal processing.
-
Page 8: Navigation
BLAST input jack of the next amplifier. SX .1 Series Amplifiers BACK VIEW Mounting Surface Your KICKER SX series amplifier uses the latest in Digital DSP control and provides you with valuable operational informa- SIDE VIEW tion about your amplifier, real-time diagnostics and a full multi-level menu-driven operating system to access and adjust your amplifier. -
Page 9: Up And Down
This information scrolls through the display one after the other and then repeats. - Hey, we needed a brand plug for us since this KICKER amp is sooooo cool! - Displays the current voltage at the XX.X Volts amplifier’s + 12 volt battery input terminal. - Page 10 HOME Amp Name - Here you can assign a unique name to your KICKER SX amplifier. This name will replace the model 7c.) PINK NOISE is a built in pink noise generator name in the DEFAULT screen. If you change your mind and...
- Page 11 10.) Mem Name - Here you can change the names of the Remote Adr memory locations. The factory defaults are reserved for future expansion. 11.) Memory-1 Gain Range UltraMatch gain control. Possible choices are: Memory-2 Memory-3 HOME Memory-4 Select the one closest to the maximum RCA input voltage you expect to send to the amplifier.
- Page 12 16.) MENU - Here is where you adjust your amplifier’s gain Reset Amp - This option resets all adjustable Gain settings back to their original factory defaults. control settings. Use the keys to Press the DOWN select SKIP RESET DO RESET adjustment menu.
- Page 13 MENU - Here is where you adjust the low pass The KICKER SX amplifier monitors and prevents any low pass Lo-Pass crossover point from being any closer than 1/3 octave from crossover. Your options are frequency SLOPE the high pass crossover point. If you cannot set the low pass...
- Page 14 MENU - Here you can switch the polarity of the ampli- Phase Mute fier’s output between 0 or 180 degrees. Your options are setup or testing purposes. Your options are 0 degree 180 degree. MUTE OFF. Press the key to enter the Press the HOME PHASE adjustment menu.
- Page 15 You will need to call KICKER directly at (405) 624-8583 to handle this situation. You will need your amplifier’s serial number AND your receipt as the guys and gals answering the and then return you to screen.
-
Page 16: Memory Presets
AMP2 LOCK LEFT RIGHT MUTE Each preset stores GAIN EQ LPF HPF PHASE KOMP STORED kicker all the values for The indicator which matches the preset each of the MEM-1 MEM-2 MEM-3 MEM-4 you used will illuminate. following amplifier controls:... -
Page 17: Troubleshooting
Other S S ymptoms: Amp is very hot, no output. There are two LEDs on the end panel of your KICKER SX series amplifier, one green and one red. The green LED indi- verify. Check for proper impedance at speaker cates the amplifier is turned on. - Page 18 Kompressor Here is a brief explanation of each KOMPRESSOR setting. - This preset applies expansion below the threshold Contour point to provide a fuller sound at lower volume levels. Effect decreases at higher volume levels. Nice effect for someone wanting a fuller sound at low to moderate listening levels. - This preset applies expansion above the threshold ATTACK point to provide a nice quick punch or attack to the music.
-
Page 19: What Is Not Covered
“B B S S t t o o c c k k ” it is warranted for 9 9 0 0 D D A A Y Y S S from date of original purchase with receipt. If labeled “B B S S t t o o c c k k ” and purchased from an Authorized KICKER Dealer, it is warranted for O O N N E E ( ( 1 1 ) ) Y Y E E A A R R from date of purchase with receipt. - Page 20 Notes Pizza Delivery Chic’s Numbers Hook Ups SX .1 Series Amplifiers SX .1 Series Amplifiers...
