Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com.
Warning:
Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance

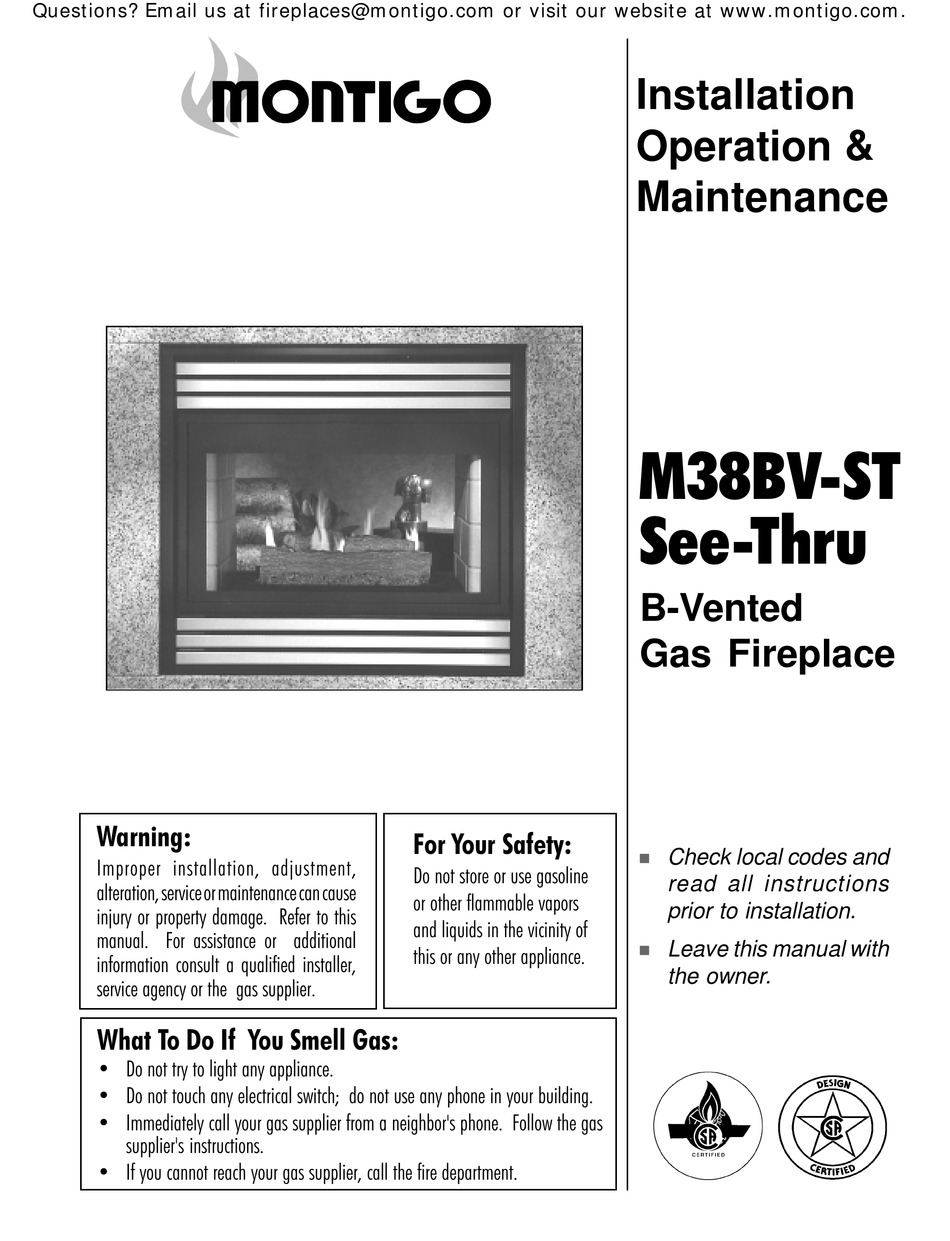

M38BV-ST
See-Thru
B-Vented
Gas Fireplace
Check local codes and
n
read all instructions
prior to installation.
Leave this manual with
n
the owner.
Advertisement
Table of Contents
Related Manuals for Montigo M38BV-ST See-Thru
Summary of Contents for Montigo M38BV-ST See-Thru
- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance M38BV-ST See-Thru B-Vented Gas Fireplace Warning: For Your Safety: Check local codes and Improper installation, adjustment, Do not store or use gasoline read all instructions...
-
Page 2: Table Of Contents
Removing and Installing the Door ....... 7 is turned off Operation The Montigo warranty will be voided by, and Montigo disclaims any responsibility for, the following actions: Adjusting the Center Burner ........7 Modification of the fireplace and/or components including glass Lighting Instructions - Model M38BV-ST .... -
Page 3: Installation
M38BV-ST B-Vented Fireplace Installation For protection against freezing temperatures, it is recommended that Installing The Fireplace Shell outer walls of the chase be insulated with a vapour barrier. This will The fireplace may be installed in any location that maintains clearances reduce the possibility of a cold-air convection current on the fireplace. -
Page 4: Installing The Gasline
M38BV-ST B-Vented Fireplace Installation Installing The Gas Line B-Vent Installation The gas line must be installed before finishing the M38BV-ST The M38BV-ST is certified for use with standard 4" B-Vent and fireplace. Natural Gas requires a minimum inlet gas supply pressure requires no B-Vent appliance connector. -
Page 5: Finishing Around The Fireplace
M38BV-ST B-Vented Fireplace Installation Finishing Around the Fireplace Mantels & Surrounds Combustible mantels and mouldings may be safely installed over the top and on the front of the fireplace provided that they do not project NOTE: Mantel clearances shown are for fire hazard prevention. beyond shaded area shown in Figure 4a. -
Page 6: Installing The Logset
M38BV-ST B-Vented Fireplace Installation Wiring Gas Control and Pilot Wiring M38BV-ST-I 115/1/60 Supply L1 L2 Honeywell (Q3450) Pilot Assembly Pilot Electrical Harness Connector Honeywell Gas Control (SV9501M) Figure 6b. Wiring schematic for fans. Gas Control Junction Box Cover Connector Fuse Installing the Log Set The M38BV-ST is supplied with five (5) fibre logs. -
Page 7: Removing And Installing The Door
M38BV-ST B-Vented Fireplace Installation Operation Removing and Installing the Lighting Instructions Door See Pages 8-9. Removing the door surround: Burner Adjustment The door surround is held in place by two metal clips at the top, and one magnet on each side. To remove the surround, pull the bottom The M38BV-ST is equipped with an adjustable burner, allowing you to outwards and lift upwards until the slots "A"... -
Page 8: Lighting Instructions - Model M38Bv-St
M38BV-ST B-Vented Fireplace Operation - Model M38BV-ST M38BV-ST with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by If you cannot reach your gas supplier, call the Fire hand. -
Page 9: Lighting Instructions - Model M38Bv-St-I
M38BV-ST B-Vented Fireplace Operation - Model M38BV-ST-I M38BV-ST-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. -
Page 10: Maintenance
M38BV-ST B-Vented Fireplace Maintenance Gas Control Valve CAUTION • Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with Secondary Limit T h e rm o co u p le P o w e r Ve n t S a fe ty S w itch a vacuum. -
Page 11: Troubleshooting
M38BV-ST B-Vented Fireplace Maintenance Troubleshooting Troubleshooting M38BV-ST-I M38BV-ST The following is a troubleshooting chart of possible problems: HONEYWELL SV 9500 /SV9600 PROBLEM CORRECTIVE ACTION Troubleshooting Sequence Noisy Pilot Flame Locate Pilot Adjustment Screw. NOTE: Before Troubleshooting, Familiarize Yourself With Flame is decreased by turning The Startup And Checkout Procedure. -
Page 12: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. -
Page 13: Appendices A - Spare Parts
