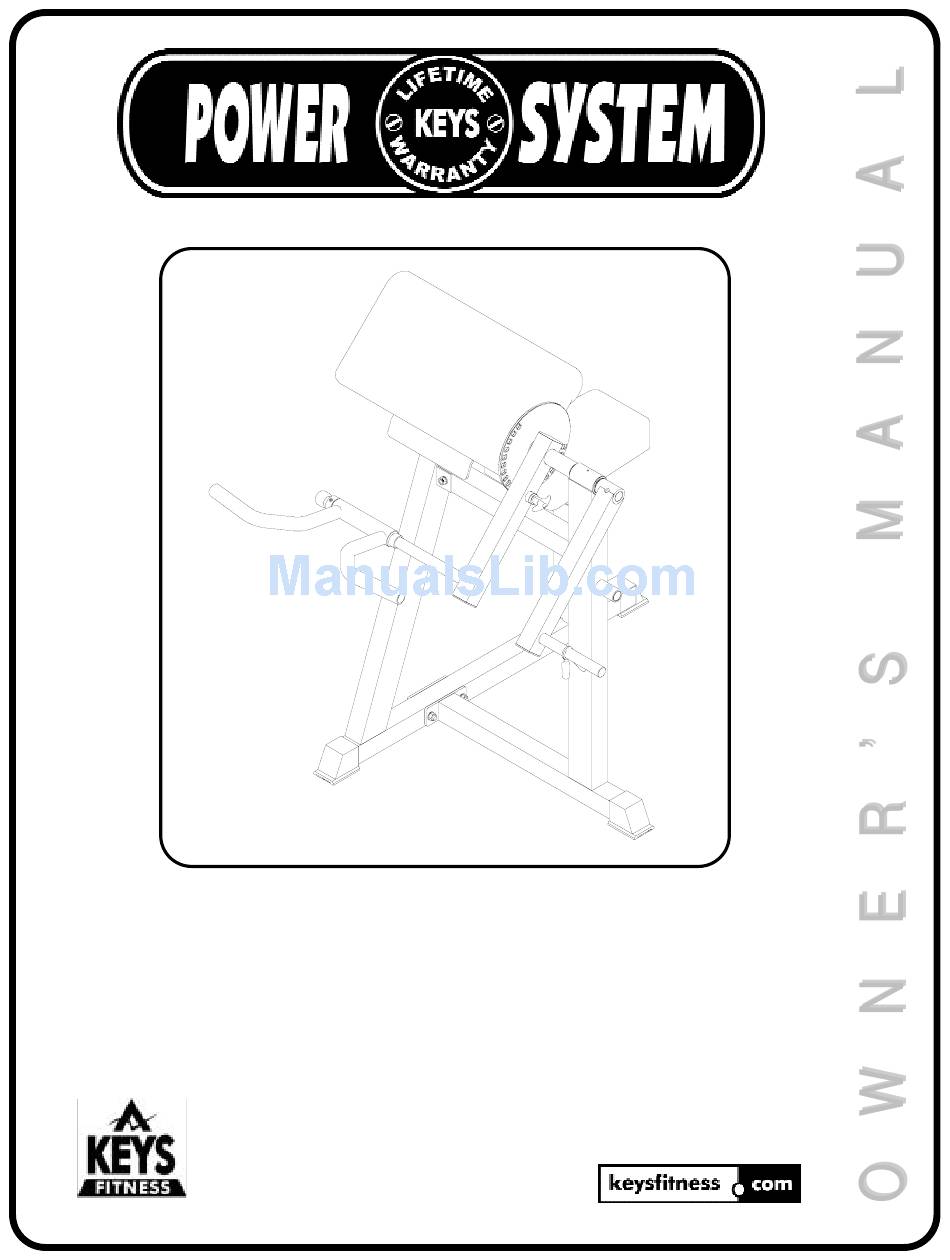

- Page 1 KPS-BTM ICEP RICEP ACHINE Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
- Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
-
Page 3: Before You Start
• This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 4 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect the Side Frame (4) to the Main Frame (3) using: 1 x (1) U Bracket 1 x (21) Bolt 7 x (25) Washer 4 x (24) Nylon Lock Nut 2 x (32) Bolt...
- Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Slide Seat Tube (9) into Main Frame. Secure with Pop Pin.
- Page 6 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Slide Handle (8) onto Pivot Arm as shown above with: 2 x (27) Plastic Bushing 1 x (2) Collar 1 x (16) End Cap for Shaft Secure Collar (2) with Allen Bolt (23).
- Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Attach Arm Curl Pad (12) and Seat Pad (11) using: 4 x (22) Bolt 4 x (25) Washer...
-
Page 8: Parts List
PARTS LIST DESCRIPTION U bracket collar main frame side frame weight holder circular plate w/axle pivot arm handle seat tube stopper prone seat pad arm curl pad plug 44.5 end cap 50.8 plastic washer end cap for shalft hard grip pop pin long pop pin bronze bushing... -
Page 9: Exploded View
EXPLODED VIEW... - Page 10 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
- Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
