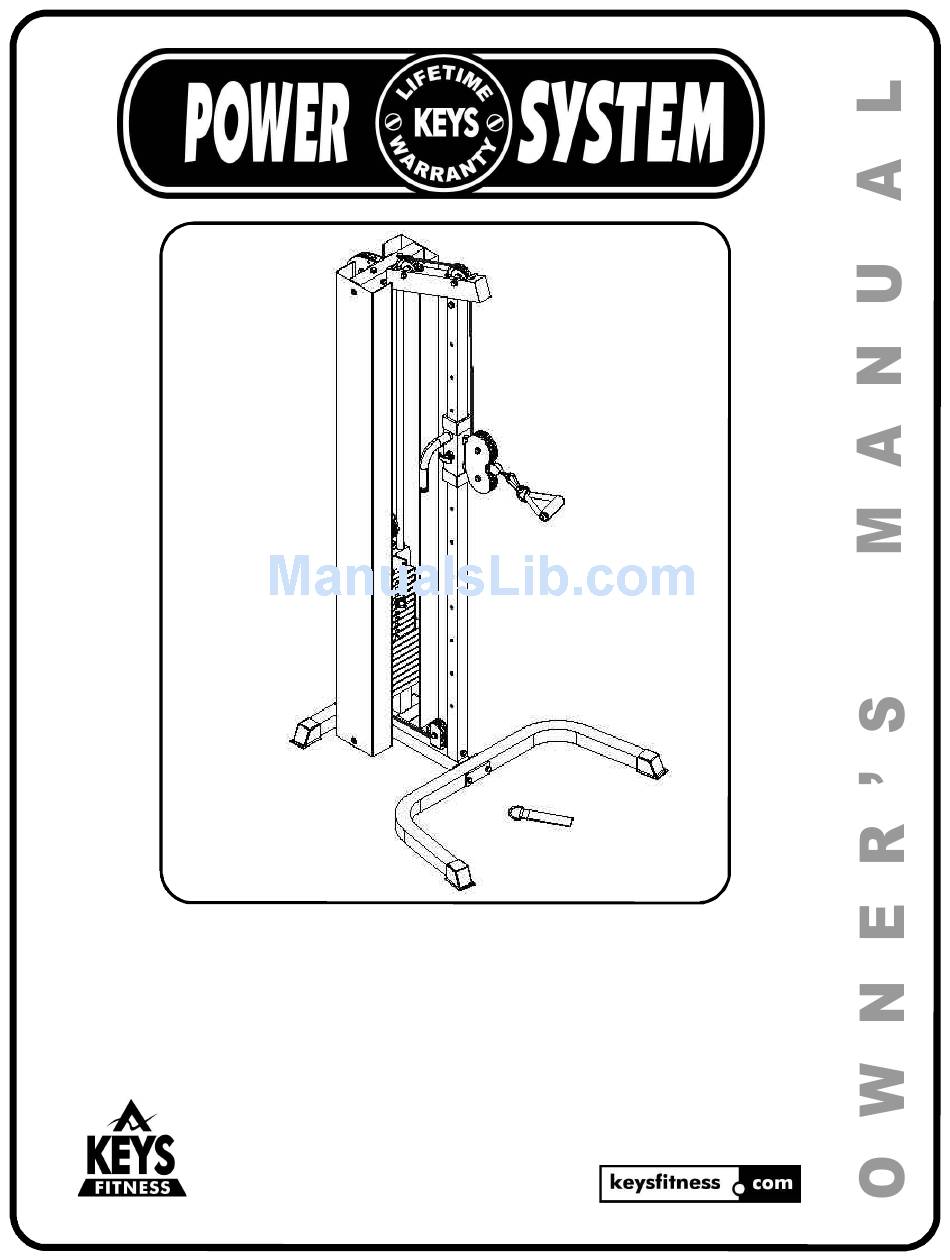

- Page 1 KPS-SCC INGLE ABLE OLUMN Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
- Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
-
Page 3: Before You Start
• This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 4 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect the U Base (1) to the Middle Base (2) with Bolts (32), Washers (41) and Nylon Lock Nuts (42). ASSEMBLY STEP 2 Attach the Rear Upright (4) to the Rear Base (3) with bolts (31), Washers (41) and Nylon Lock Nuts (42).
- Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Attach Middle Base (2) to Rear Base (3) with Bolts (32), Washers (41) and Nylon Lock Nuts (42). Insert Guide Rods (8) into Middle Base (2).
- Page 6 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Attach Slide Frame (6) onto Middle Base (2) with bolt (31), Washers (41) and Nylon Lock Nut (42). Place Slide Frame (6) over Guide Upright (5) and secure with Pop Pin. Attach Top Frame (7) to Guide Upright (5), Guide Rods (8) and Rear Upright (4) as shown.
- Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Complete Cable (11) and Pulley assembly as shown.
- Page 8 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 6 Attach Shrouds to frame using Allen Bolts (38) and Washers (40).
-
Page 9: Parts List
DESCRIPTION "U" base middle base rear base rear upright guide upright slide frame top frame guide rod weight shroud double pulley block cable swing pulley block select rod jam nut pop Pin big pulley 114 small pulley 89 lat strap ankle strap end cap 50.8 guide sleeve 63.5x?50.8... -
Page 10: Exploded View
EXPLODED VIEW “... - Page 11 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
- Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
