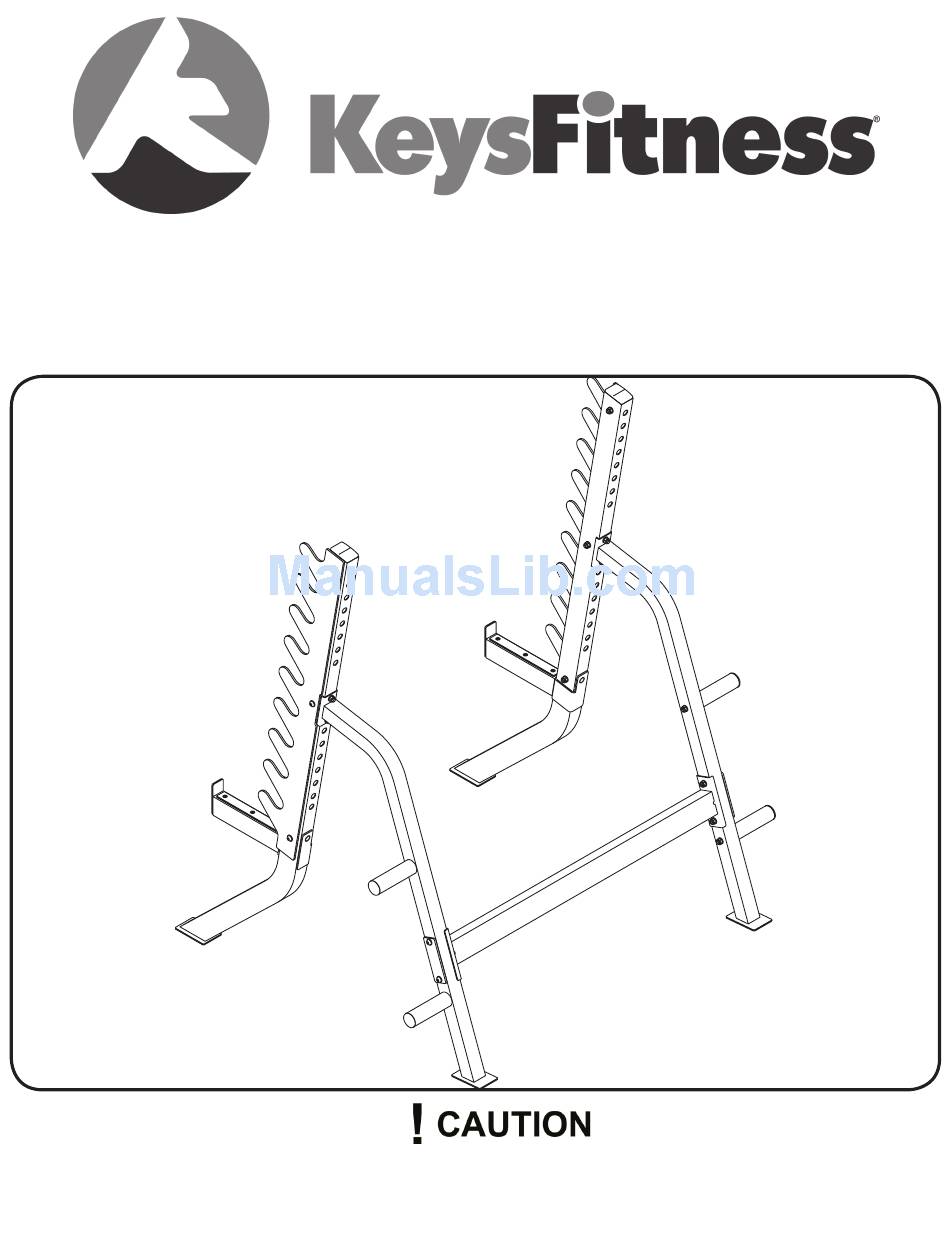

- Page 1 Owner’s Manual 215-000102 10/06 Rev A KF-SS quat Read all precautions and instructions in this manual before using this equipment. tand...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information... -
Page 3: Important Safety Information
Owner’s Manual and are familiar with safety information and precautions. • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 4: Before You Start
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service techni- cians on site to take care of you, our valued customer. -
Page 5: Assembly
Assembly... - Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Cross Frame (3) to Rear Supports () with Bolts (14), Washers (1), Plates (8) and Nylon Nuts (15).
- Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Bar Rack (6) to both Upright Frames (1) with Bolts (14), Washers (1) and Nylon Nuts (15).
- Page 8 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Secure Main Uprights to each Rear Support Frame with Carriage Bolts (13), Washers (1) and Nylon Nuts (15).
-
Page 9: Assembly
Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Attach Right and Left Safety Bars (4,5) to each Upright Frame. Connect Weight Storage Posts (7) to Rear Support Frames with Washers (1) and Nylon Nuts (15). -
Page 10: Parts List
3-00893 06-00016 06-00394 06-00460 0-0035 0-00646 0-00647 0-00091 0-00649 KF-SS Parts list Rev B description UPRIGHT FRAME, KF-SS REAR SUPPORT FRAME, KF-SS CROSS FRAME, KF-SS RIGHT SAFETY BAR, KF-SS LEFT SAFETY BAR, KF-SS BAR RACK, KF-SS WEIGHT STORAGE POST, KF-SS... -
Page 11: Exploded View
Exploded View... - Page 12 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
- Page 13 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 1-888-340-0482...
