Summary of Contents for Keys Fitness KF-HC

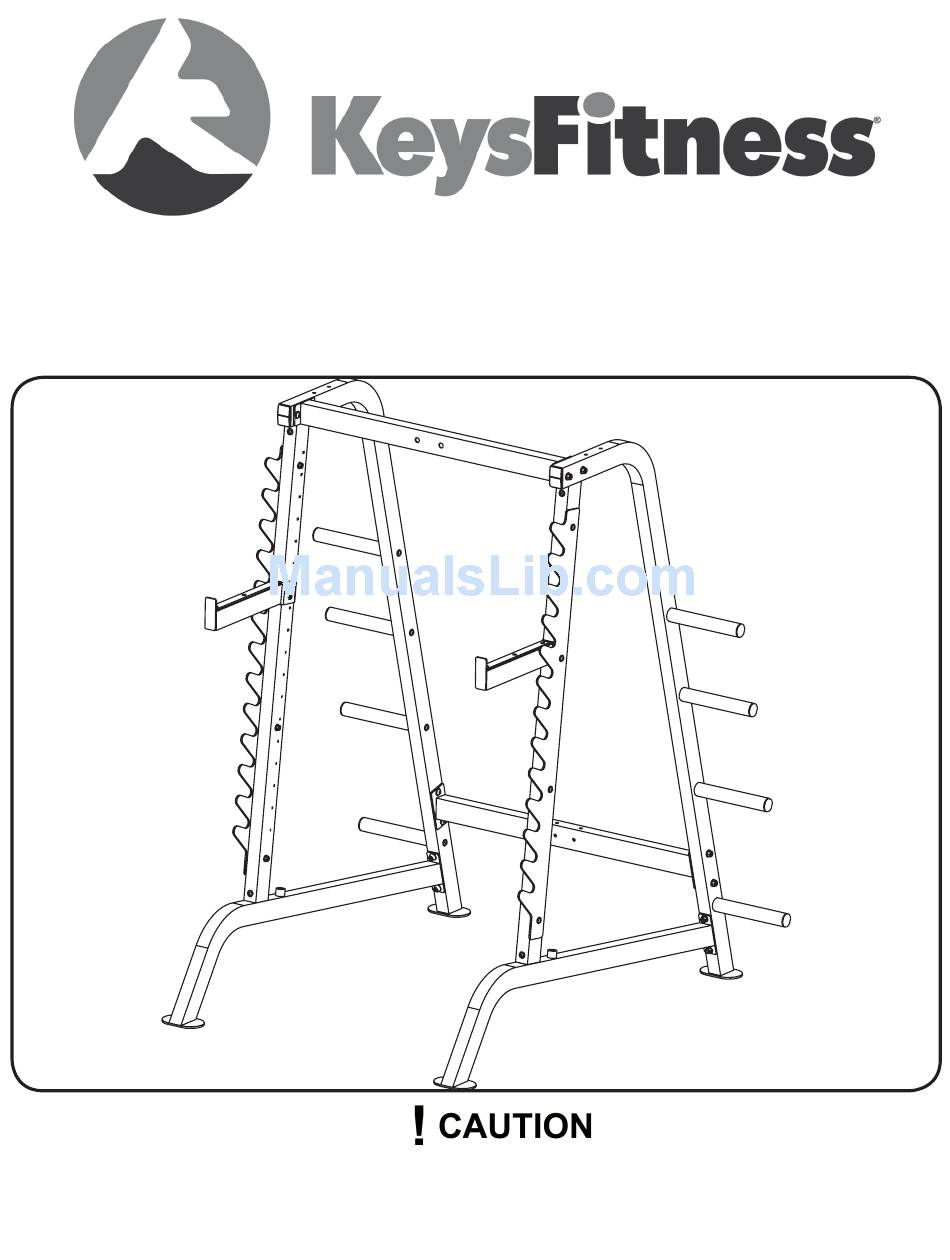

- Page 1 Owner’s Manual 215-00096 09/06 Rev A KF-HC Read all precautions and instructions in this manual before using this equipment.
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information... -
Page 3: Important Safety Information
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service techni- cians on site to take care of you, our valued customer. -
Page 4: Before You Start
Owner’s Manual and are familiar with safety information and precautions. • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 5: Assembly
Assembly... - Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Right Front Support (8) to Base Frame (3) using Bolts (15) and Washers (16). Make sure that the printed numbers on the Front Supports (8) are facing inward for proper viewing.
- Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Secure Right Rear Support (1) to Base Frame (3) with Bolts (10), Washers (11) and Nylon Lock Nuts (12). Secure Right Rear Support to Right Front Support with Bolt (15) and Washer (16).
- Page 8 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Lower Cross Frame (4) and Upper Cross Frame (5) to Left and Right Rear Supports from using Bolts (13), Washers (11) and Nylon Lock Nuts (12). NOTE: T WO PEO PLE WILL BE NEEDED TO SAFELY COMPLETE THIS STEP...
-
Page 9: Assembly
Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Connect Gun Racks (9) to the outside of both Front Supports (8) using Bolts (14), Washers (16) and Nylon Lock Nuts (17). Connect Weight Holders (20) to Left and Right Rear Supports (1,2) with Bolts (15) and Washers (16). -
Page 10: Parts List
202-00643 202-00644 202-00645 202-00091 206-00394 223-00894 223-00895 206-00016 KF-HC Parts List Rev A Description RIGHT REAR SUPPORT, KF-HC LEFT REAR SUPPORT, KF-HC BASE FRAME, KF-HC LOWER CROSS FRAME, KF-HC UPPER CROSS FRAME, KF-HC RIGHT SAFETY BAR, KF-HC LEFT SAFETY BAR, KF-HC... -
Page 11: Exploded View
Exploded View... -
Page 12: Warranty Information
Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product. - Page 13 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
