3.1 、

Keypad

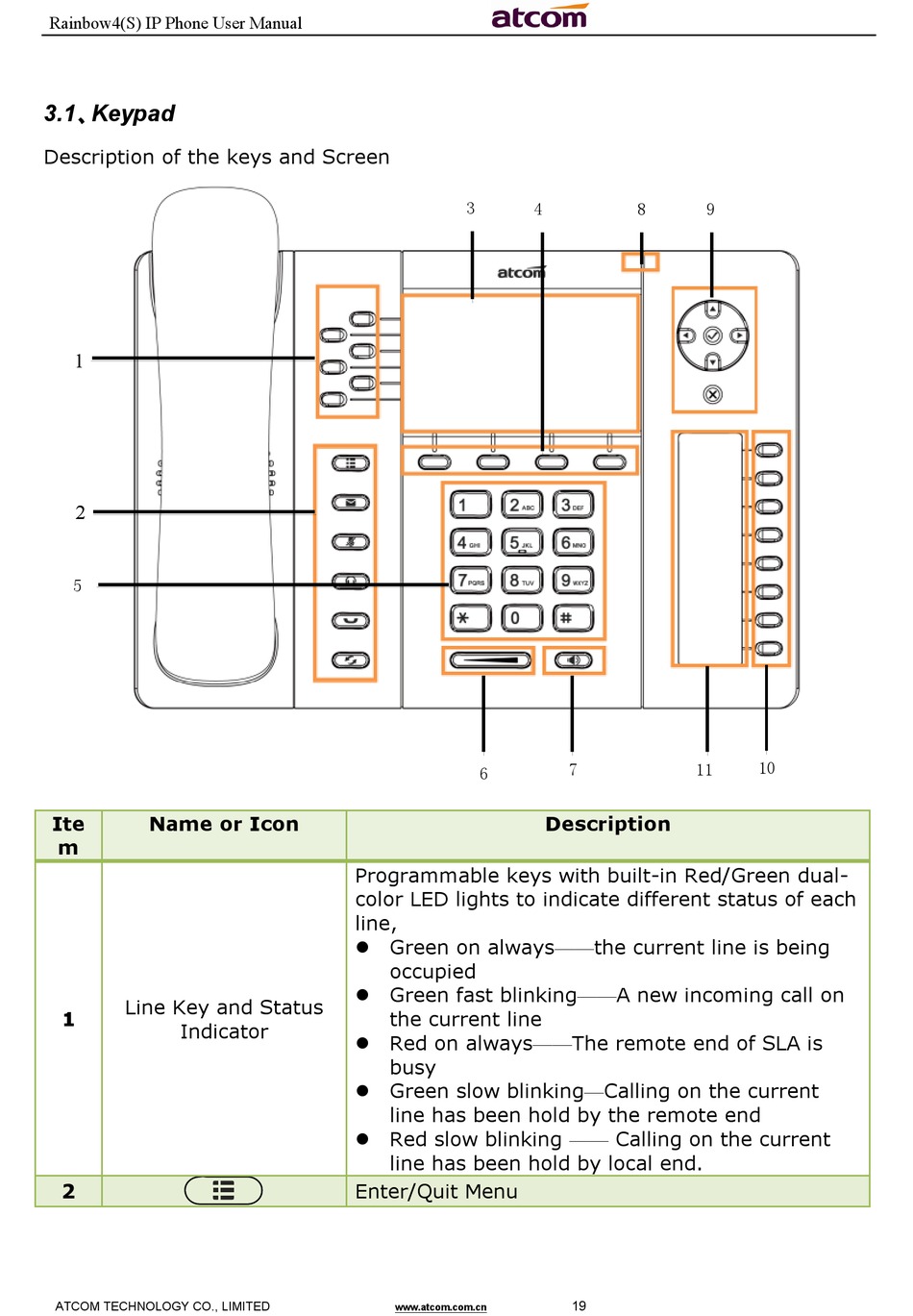

Description of the keys and Screen
1
2
5
Ite Name or Icon
m
Line Key and Status
1
Indicator
2
ATCOM TECHNOLOGY CO., LIMITED
3
6
Programmable keys with built-in Red/Green dual-
color LED lights to indicate different status of each
line,
 Green on always——the current line is being
occupied
 Green fast blinking——A new incoming call on
the current line
 Red on always——The remote end of SLA is
busy
 Green slow blinking—Calling on the current
line has been hold by the remote end
 Red slow blinking —— Calling on the current
line has been hold by local end.
