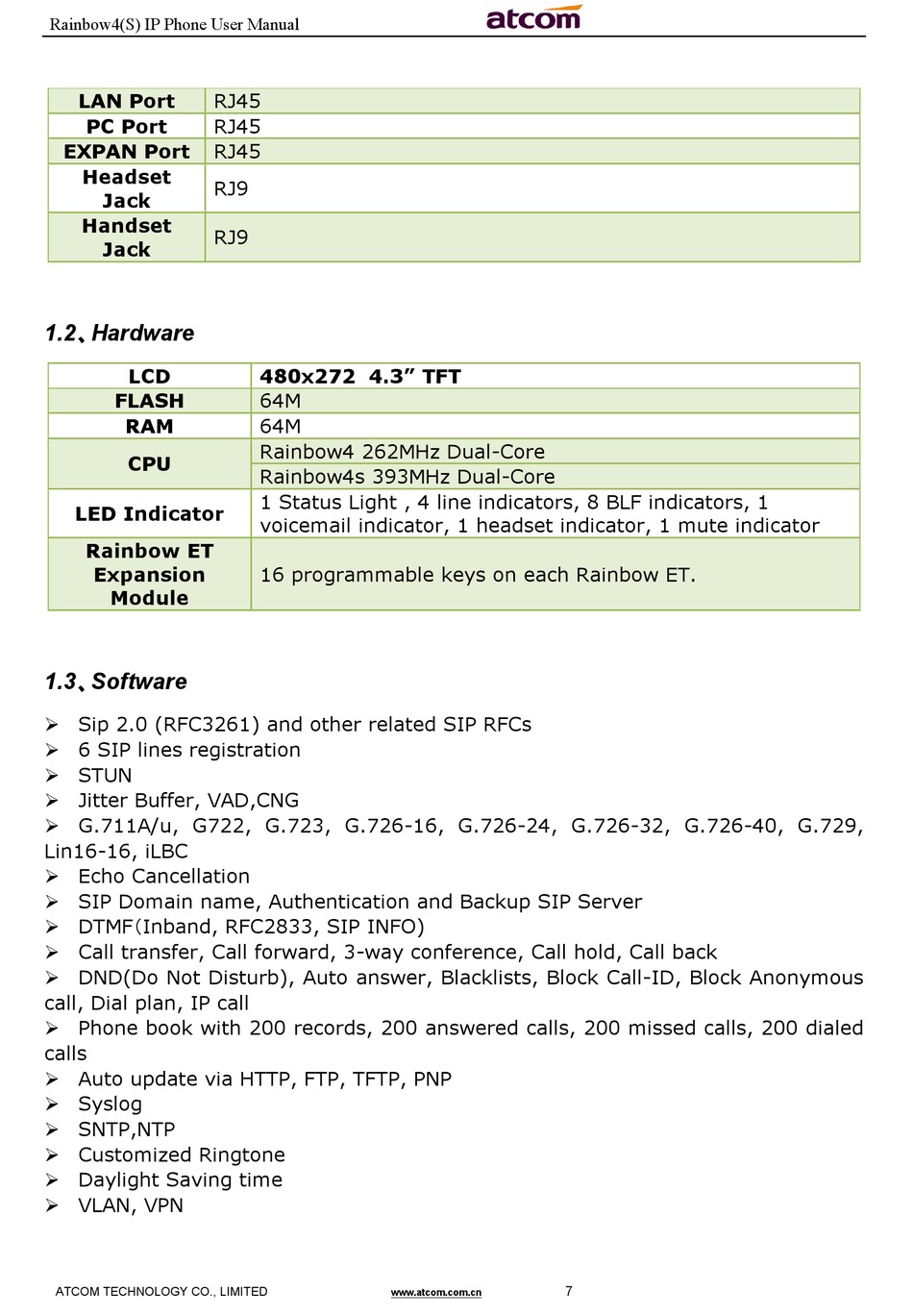

Rainbow4(S) IP Phone User Manual
LAN Port RJ45
PC Port RJ45
EXPAN Port RJ45
Headset
RJ9
Jack
Handset
RJ9
Jack
1.2 、

Hardware

LCD
FLASH
RAM
CPU
LED Indicator
Rainbow ET
Expansion
Module
1.3 、

Software

 Sip 2.0 (RFC3261) and other related SIP RFCs
 6 SIP lines registration
 STUN
 Jitter Buffer, VAD,CNG
 G.711A/u, G722, G.723, G.726-16, G.726-24, G.726-32, G.726-40, G.729,
Lin16-16, iLBC
 Echo Cancellation
 SIP Domain name, Authentication and Backup SIP Server
 DTMF（Inband, RFC2833, SIP INFO)
 Call transfer, Call forward, 3-way conference, Call hold, Call back
 DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous
call, Dial plan, IP call
 Phone book with 200 records, 200 answered calls, 200 missed calls, 200 dialed
calls
 Auto update via HTTP, FTP, TFTP, PNP
 Syslog
 SNTP,NTP
 Customized Ringtone
 Daylight Saving time
 VLAN, VPN
ATCOM TECHNOLOGY CO., LIMITED
480x272 4.3" TFT
64M
64M
Rainbow4 262MHz Dual-Core
Rainbow4s 393MHz Dual-Core
1 Status Light , 4 line indicators, 8 BLF indicators, 1
voicemail indicator, 1 headset indicator, 1 mute indicator
16 programmable keys on each Rainbow ET.
