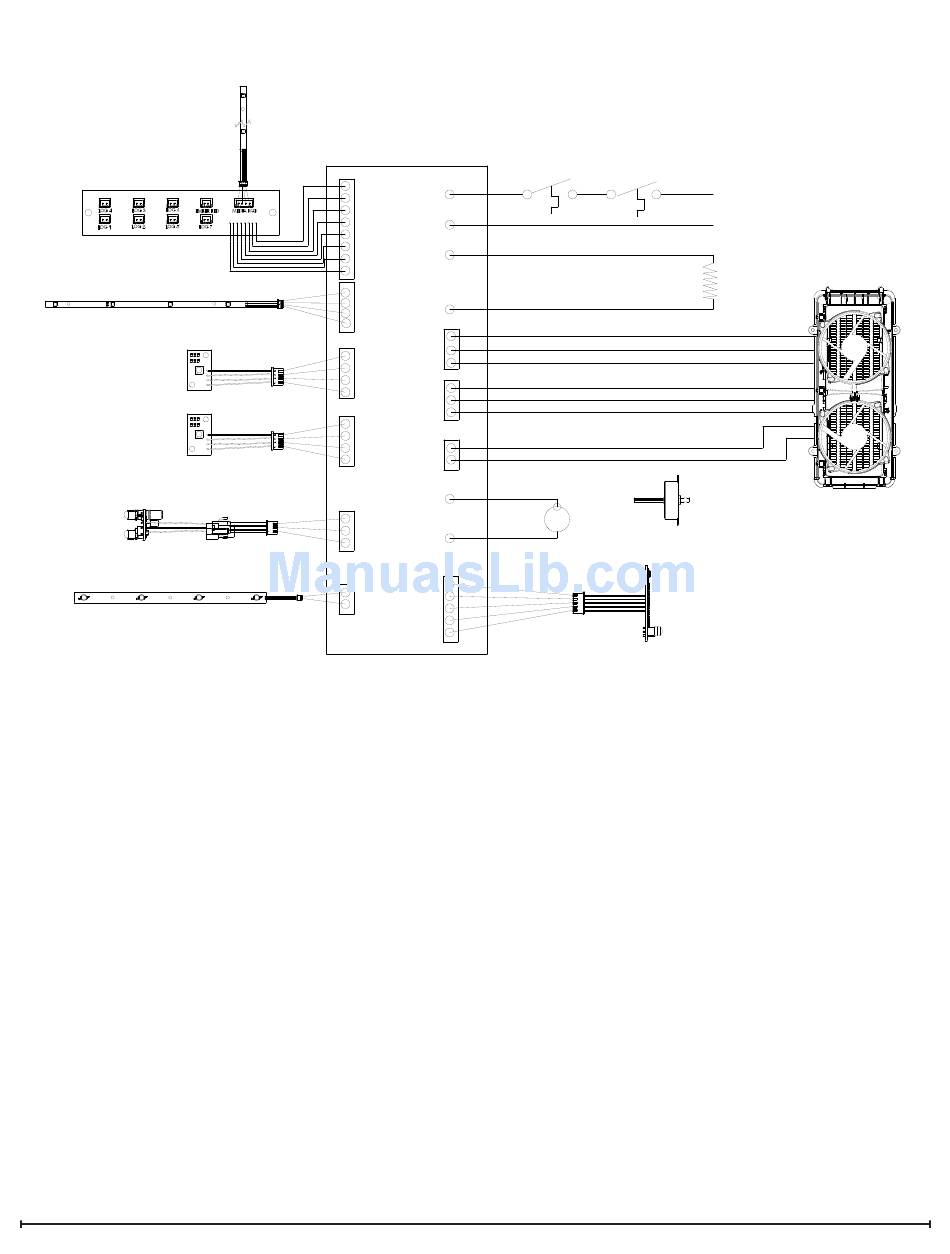

WIRING DIAGRAM

LOG / MEDIA JUNCTION BOARD
NUMBER OF CONNECTIONS
IS BASED ON TYPE OF FIREBOX
LED STRIP, RBG
TOP LIGHT ASSY
TOP LIGHT ASSY
GESTURE ASSY
MAIN TO GESTURE HARNESS
FLAME LED ASSY
TYPE OF CONNECTIONS
IS BASED ON TYPE OF FIREBOX
8
ONLY USED ON MEDIA MODELS
F1400 MAIN BOARD 3001260100
LINE T4
J1 LOG / MEDIA
NEUTRAL T5
NEUTRAL T6
J2 FLAME COLOUR
HEATER T1
FAN J9
J3 TOP LIGHT
FAN J10
J4 TOP LIGHT
NTC J11
MOTOR T2
J7 GESTURE
NEUTRAL T7
J5 FLAME 1W
DISPLAY J8
THERMAL THERMAL
CUT OUT CUT OUT
LINE IN
NEUTRAL
HEATER ELEMENT
FLICKER MOTOR
DISPLAY BOARD ASSY
HEATER ASSEMBLY
