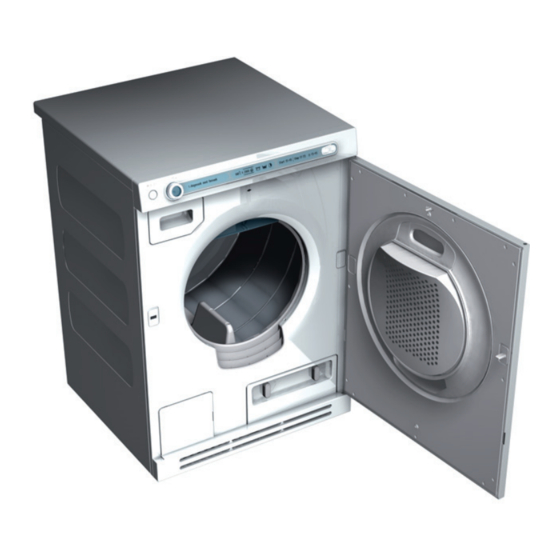

  • Page 4 Servicemanual Type: TD60 This service manual describes tumble dryer type TD60 and is a supplement to the general service manual for the 600 series.

  • Page 5: Updates

    Servicemanual TD60 Updates Revi- Date Description Signa- sion ture 2007-11-27 Updated the ”Show room program” /Shop program with a description for machines manufactured week 737 and later. 2008-10-16 Updated with TD60.2. TD60.3 added Jeans and Synthetics program 2010-04-29 Updated with TD60.1...

  • Page 6: Introduction

    Servicemanual TD60 Introduction You are holding the service manual for TD60 type tumble dryers. It should be easy to service a tumble dryer. It is important that you, as a service technician, are given the conditions to be able to carry out work in an efficient and satisfactory way. Our hope is that this service manual is a useful tool for your daily work.

  • Page 7: Product Overview

    Servicemanual TD60 Product overview TD60.3 LCD 1 LCD 3 LCD 2 Positions: 8, where one consists of the menu for settings (Position 7) Options: Settings: TD60.3 (Integrated) LCD 2 LCD 1 LCD 3 Positions: 8, where one consists of the menu for settings (Position 7)
  • Page 8 Servicemanual TD60 TD60.1, Panel type 1 Auto Dry Auto Normal Auto Extra Dry Auto Iron Dry Timed Dry Air Fluff program T 7 5 3 C B U T T E R F L Y D R Y I N G...
  • Page 9 Servicemanual TD60 Programme table TD60 Programmes Material Tempe- Max. Energy consump- Programme time rature load tion (kWh) (kg) 1600 1600 Extra dry Cotton, linen Normal Cotton, linen Normal Normal dry* Cotton, linen Normal Iron dry Cotton, linen Normal Jeans Jeans, clothing with...

  • Page 10: Programme Selection, Options And Making Settings Td60.3

    Servicemanual TD60 Programme selection, options and making settings TD60.3 Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 Program 7 Program selector 1. Press the program selector button to navigate between the different menus (e.g. to go from temperature menu to Anti Crease menu).

  • Page 11: Programme Selection Td60.3

    Servicemanual TD60 Programme selection TD60.3 The programs are displayed in the order they occur in LCD1. All display text language versions are displayed. Press/ LCD 1 Comments/instructions Pos. turn Turn on the main power supply Extra Dry, Heavy, Auto extra dry, Auto extra- This programme is for items that are particularly difficult to dry, torrt, Ekstra tørt, Auto ekstra tørt, Erittäin kuiva,...

  • Page 12: Selecting Options Td60.3

    Servicemanual TD60 Selecting Options TD60.3 The options are displayed in the order they occur in LCD2 and LCD3. All display text language versions are displayed. Press/ LCD 2 LCD 3 Comments/instructions turn Temperature Normal, Tempera- Two possible choises of temperature. Not avaliable for program at pro- ture normal, Temperatur normal, gramme 6 (”Air Fluff”)
  • Page 13 Servicemanual TD60 Selecting Options TD60.3 Start - Done, Start-End, Start-Done, Time program (when setting: ”No Real time”) Start-Klar, Start-Færdig, Start-Ferdig, Desired programme time can be set. Selections up to 3 hours in units Start-Valmis, Démarrer-Fin, Start-Fertig, of 15 minutes can be made. The selected program time is shown in the Avvio-Fine, Inicio-Fin, Стaрт-Кoнeц, Start-...

  • Page 14: Making Settings Td60.3

    Servicemanual TD60 Making settings TD60.3 The setting options below are shown in the order they occur in LCD2 (Position 7 under the pro- gram menu is, however, shown in LCD1). All display text language versions are displayed. Press/ LCD 2...
  • Page 15 Servicemanual TD60 Making settings TD60.3 Press/ LCD 2 Press/ LCD3 Comments/instructions turn turn 3 Language, 3 Language, 3 Språk, 3 Sprog, 3 Språk, 3 Kieli, 3 Lan- gue, 3 Taal, 3 Lingua, 3 Idioma, Язык, 3 Sprache US English AU English (default)

  • Page 16: Programme Selection, Options And Making Settings Td60.2

    Servicemanual TD60 Programme selection, options and making settings TD60.2 Program 1 Program 2 Program 3 Program 4 T 7 8 3 B U T T E R F L Y D R Y I N G Program 5 Program 6...

  • Page 17: Select Program And Making Options Td60.1

    Servicemanual TD60 Selecting programme and making options TD60.1 Auto Dry Auto Normal Auto Extra Dry Auto Iron Dry Air Fluff program Timed Dry T 7 5 3 C B U T T E R F L Y D R Y I N G Turn the program selector to select a program.

  • Page 18: Service Menu Td60.3

    Servicemanual TD60 Service menu TD60.3 This is how to enter the service menu If the machine is on: First turn off the power at the main power switch. Press and hold the Program Selector while turning on the main power switch.
  • Page 19 Servicemanual TD60 Service menu TD60.3 The options below are displayed in the order they occur in LCD 2. All display text language ver- sions are displayed. Press/ LCD 2 Comments/instructions turn DataSerialNo, Data Ser Num, Data- Date for programming the software (Year_Week) SerialNo, DataSerialNo, Serienummer, Serienummer, Dataversio Nro, N°...
  • Page 20 Servicemanual TD60 Service menu TD60.3 To verify indication on faulty thermistor, do the following: 1. Detach the panel 2. Disconnect electrical connections at the CU. 3. Measure DC Ω for thermistor and related wires. For values and measure points, see chapter ”Components and measurement values”...

  • Page 21: Service Menu Td60.2

    Servicemanual TD60 Service menu TD60.2 S6 S7 Switch off, and then on main power. • Pressing S3 when power on followed by 3 pushes on S6 within 5 sec enters the service menu. NOTE! Make all selections. Pressing S8 stores all selections made in service menu and leaves Service mode.

  • Page 22: Service Menu Td60.1

    Servicemanual TD60 Service menu TD60.1 Auto Dry Auto Normal Auto Extra Dry Auto Iron Dry Timed Dry Air Fluff program T 7 5 3 C B U T T E R F L Y D R Y I N G Start + Press and hold Start (S10) and switch on the machine.

  • Page 23: Fault Indications Td60.3

    Servicemanual TD60 Fault indications TD60.3 The below faults are indicated in plaintext in LCD 2. The table shows the indication in all languages and language variations. LCD 2 Cause Action Overflow, Over Flow, Överfyllnad, A micro switch, opening, for Check if the customer has:...

  • Page 24: Fault Indications Td60.2

    Servicemanual TD60 Fault indications TD60.2 Error messages Cause Action • A micro switch, opening,for • Check if the customer has Emptied the tank and restarted the machine detection of full, condensing water • Clean hoses and check voltage and resistance in the drain pump.

  • Page 25: Fault Indications Td60.1

    Servicemanual TD60 Fault indications TD60.1 Error messages panel type 1 Indication Cause Action F1 flashes on the • The condensation water tank is Empty the container and restart the machine. full. display F2 flashes on the • Maximum permitted programme Empty the condensed water container and check that neither the fluff filter time reached.
  • Page 26 Servicemanual TD60 Other faults TD60 Fault symptom Cause Action The machine will The outer door is not properly closed. • Check that the door pin is activating the door switch. not start The machine is not supplied with power. • Check the fuses and connections.

  • Page 27: Heater 2 Activation Td60.3

    A total reset is achieved by pressing the stop button when the machine is on. All settings are restored to their default values. Activating heating element 2 TD60.1 Heating element 2 can be activated/deactivated by programming the machine. • Turn off the machine using the main power switch.

  • Page 28: Shop Programme Td60.3

    Then press and hold the Start button while turning on the main power switch. Press the program selector 5 times. The Shop program is now stopped. Store programme TD60.2 and TD60.1 There are no store programmes on the TD60.2 and TD60.1.

  • Page 29: Components And Measurement Values Td60

    Servicemanual TD60 Components and measurement values TD60 Item number Component Measurement value Comments Main winding: 23.8 Ω 80 618 24 Motor 50 Hz, Auxiliary winding: 28.1 Ω 220/240 V Current: 1.1 A; 270 W; 2850 80 618 95 Motor 60 Hz,...

  • Page 30: Technical Data

    Servicemanual TD60 Technical data TD60 Height: 850 mm Width: 595 mm Depth: 585 mm Weight: 39kg (vented) 47 kg (condenser) Cylinder volume: 111 l Max. loading capacity: Eu 7.0 kg, US, AU 6.0 kg RPM: 52 rpm Rated power: 1950 W = 10 A...

  • Page 31: Wiring Diagram Td60.3

    Servicemanual TD60 Wiring diagram TD60.3...

  • Page 32: Wiring Diagram Td60.2

    Servicemanual TD60 Wiring diagram TD60.2...

  • Page 33: Wiring Diagramtd60.1

    Servicemanual TD60 Wiring diagramTD60.1...

  • Page 34: Rehanging The Door

    Servicemanual TD60 Rehanging the door The tumble dryer (only certain models) is supplied with the door hung on the right-hand side. It is, however, pos- sible to re-hang it according to the instructions below. Take care not to damage the paint when carrying out work with tools.
  • Page 35 Servicemanual TD60 Method for removing plastic plugs, lock and catch located on the machine and the door: Carefully push the plug, catch or lock upwards with a flat screwdriver. as the picture shows. 6. Carefully remove the catch and plastic plug on the door and switch location.
  • Page 36 Servicemanual TD60 11. Screw the lower hinge. Use Torx. 12 Press the plinth into place. The door has now been re-hung.

  • Page 37: Replacing Panel

    Servicemanual TD60 Replacing panel Instructions Image 1. Unscrew the top cover. 2. First, remove the main push switch. Carefully press the catches that secure the panel at the front beam. Release the catches from the front member by working the panel outwards.

  • Page 38: Timerdiagram

    Servicemanual TD60 Timerdiagram 80 813 77 Rev 05 Service manual TD60 EN...
