Introduction ...................................................................................................................................................3
Product overview ..........................................................................................................................................4
Programme ...................................................................................................................................................5
Programme selection, options and making settings ......................................................................................5
Programme selection ..........................................................................................................................6
Selecting Options ...............................................................................................................................7
Making settings ..................................................................................................................................9
Service menu..............................................................................................................................................11
Production test ............................................................................................................................................14
Fault indications..........................................................................................................................................15
Other faults .................................................................................................................................................16
Components and measurement values ......................................................................................................18
Technical data ............................................................................................................................................19
Wiring diagram............................................................................................................................................20
Rehanging the door ....................................................................................................................................21
Replacing panel ..........................................................................................................................................24

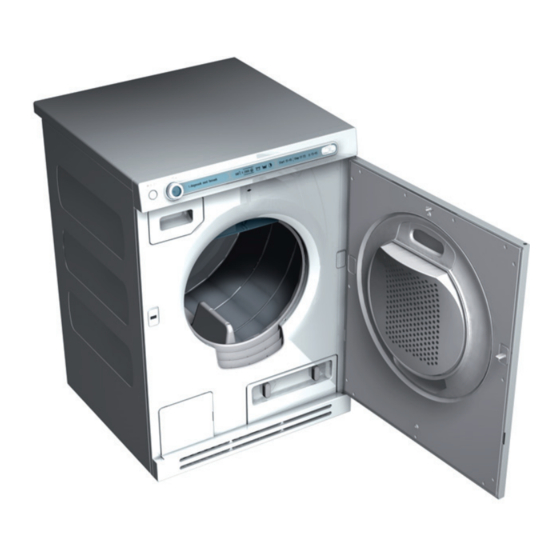

This service manual describes tumble dryer type TD60 and is a supplement to the general service manual
for the 600 series.
Service manual
Type: TD60
Advertisement
Table of Contents
Related Manuals for Asko TD60
Summary of Contents for Asko TD60
-
Page 1: Table Of Contents
Components and measurement values ......................18 Technical data ............................19 Wiring diagram............................20 Rehanging the door ............................21 Replacing panel ............................24 Appendix: Timer diagram This service manual describes tumble dryer type TD60 and is a supplement to the general service manual for the 600 series. - Page 2 Service manual TD60...
-
Page 3: Introduction
Service manual TD60 Introduction You are holding the service manual for TD60 type tumble dryers. It should be easy to service a tumble dryer. It is important that you, as a service technician, are given the conditions to be able to carry out work in an efficient and satisfactory way. Our hope is that this service manual is a useful tool for your daily work. -
Page 4: Product Overview
Service manual TD60 Product overview TD60.3 Positions: 7, where one consists of the menu for settings (Position 7) Options: Settings: TD60.3 (Integrated) Positions: 7, where one consists of the menu for settings (Position 7) Options: Settings:... -
Page 5: Programme 5
Service manual TD60 Programme selection, options and making settings Programme 1 Programme 2 Programme 3 Programme 4 Programme 5 Programme 6 Programme 7 Programme selector 1. Press the programme selector button to navigate between the different menus (e.g. to go from temperature menu to Anti Crease menu). -
Page 6: Programme Selection
Service manual TD60 Programme selection The programmes are displayed in the order they occur in LCD1. All display text language versions are displayed. Press/ LCD 1 Comments/instructions turn Turn on the main power supply Extra Dry, Heavy, Auto extra dry, Auto This programme is for items that are particularly difficult to dry, extratorrt, Ekstra tørt, Auto ekstra tørt, Erittäin... -
Page 7: Selecting Options
Service manual TD60 Selecting Options The options are displayed in the order they occur in LCD2 and LCD3. All display text language versions are LCD 3 Comments/instructions Press/ turn Temperature Normal, Temperature Two possible choises of temperature. Not avaliable for programme at normal, Temperatur normal, programme 6 (”Air Fluff”) - Page 8 Service manual TD60 Start - Done, Start-End, Start-Done, Time program (when setting: ”No Real time”) Start-Klar, Start-Færdig, Start- Desired programme time can be set. Selections up to 3 hours in units Ferdig, Start-Valmis, Démarrer-Fin, of 15 minutes can be made. The selected programme time is shown in Start-Fertig, Avvio-Fine, Inicio-Fin, the display.
-
Page 9: Making Settings
Service manual TD60 Making settings The setting options below are shown in the order they occur in LCD2 (Position 7 under the programme menu is, however, shown in LCD1). All display text language versions are displayed. LCD 2 LCD3 Comments/instruc-... - Page 10 Service manual TD60 3 Language, 3 Language, 3 Språk, 3 Sprog, 3 Språk, 3 Kieli, 3 Langue, 3 Taal, 3 Lingua, 3 Idioma, Язык, 3 US English Sprache AU English Default svenska dansk norsk Suomi Francais Nederlands Italiano Espanol Pyсский...
-
Page 11: Service Menu
Service manual TD60 Service menu This is how to enter the service menu If the machine is on: First turn off the power at the main power switch. Press and hold the Program Selector while turning on the main power switch. - Page 12 Service manual TD60 Service menu The options below are displayed in the order they occur in LCD 2. All display text language versions are displayed. Press/ LCD 2 Comments/instructions turn DataSerialNo, Data Ser Num, Date for programming the software (Year_Week)
- Page 13 Service manual TD60 To verify indication on faulty thermistor, do the following: 1. Detach the panel 2. Disconnect electrical connections at the CU. 3. Measure DC Ω for thermistor and related wires. For values and measure points, see chapter ”Components and measurement values” and ”Wiring diagram”.
-
Page 14: Production Test
Service manual TD60 Production test The entire production test is run in a sequence as follows. You can cancel the test programme at any time during the programme by opening the door or pressing the main power switch. Starting the production test Press the Stop button (S3), then press the main power switch. -
Page 15: Fault Indications
Service manual TD60 Fault indications The below faults are indicated in plaintext in LCD 2. The table shows the indication in all languages and language variations. LCD 2 Cause Action Overflow, Over Flow, Överfyllnad, A micro switch, opening, for Check if the customer has:... -
Page 16: Other Faults
Service manual TD60 Other faults Fault symptom Cause Action The machine will not start The outer door is not properly closed. • Check that the door pin is activating the door switch. The machine is not supplied with power. • Check the fuses and connections. - Page 17 Service manual TD60 Total reset By pressing STOP (S3) + MAIN POWER SWITCH when power on the machine shall total reset. All set- tings is returned to default values). Heater 2 activation Heater 2 can be programmed active or inactive.
-
Page 18: Components And Measurement Values
Adjustment between 1950 W / 10 A and 2500 W / 16 A is carried out using software via buttons. 88 013 27 Control Unit compl. TD60.3 The control unit contains microprocessors for controlling programmes, motor, element etc. Heater 1: 1950W, 24,5Ω... -
Page 19: Technical Data
Service manual TD60 Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight: 39kg (vented) 47 kg (condenser) Cylinder volume: 111 l Max. loading capacity: 6.0 kg RPM: 52 rpm Rated power: 1950 W = 10 A 2500 W = 16 A Adjustment between 10 and 16 A is carried out using software via buttons. -
Page 20: Wiring Diagram
Service manual TD60 Wiring diagram... -
Page 21: Rehanging The Door
Service manual TD60 Rehanging the door The tumble dryer (only certain models) is supplied with the door hung on the right-hand side. It is, however, possible to re-hang it according to the instructions below. Take care not to damage the paint when carrying out work with tools. - Page 22 Service manual TD60 Method for removing plastic plugs, lock and catch loca- ted on the machine and the door: Carefully push the plug, catch or lock upwards with a flat screwdriver. as the picture shows. 6. Carefully remove the catch and plastic plug on the door and switch location.
- Page 23 Service manual TD60 12 Press the plinth into place. The door has now been re-hung.
-
Page 24: Replacing Panel
Service manual TD60 Replacing panel Instructions Image 1. Unscrew the top cover. 2. First, remove the main push switch. Carefully press the catches that secure the panel at the front beam. Release the catches from the front member by working the panel outwards. - Page 25 Service manual TD60 Notes 80 813 77 Rev 02 Service manual TD60 EN...
-
Page 26: Appendix: Timer Diagram
Timer diagram (description of program flow) TD60 Cool-down Start Components Table explanation Motor Drain pump (30 sec. on, 210 sec. off) Option Heater Buzzer Program Drying sequence (max 3 hours) Air fluff Auto program Time program Option Anti crease Buzzer...
