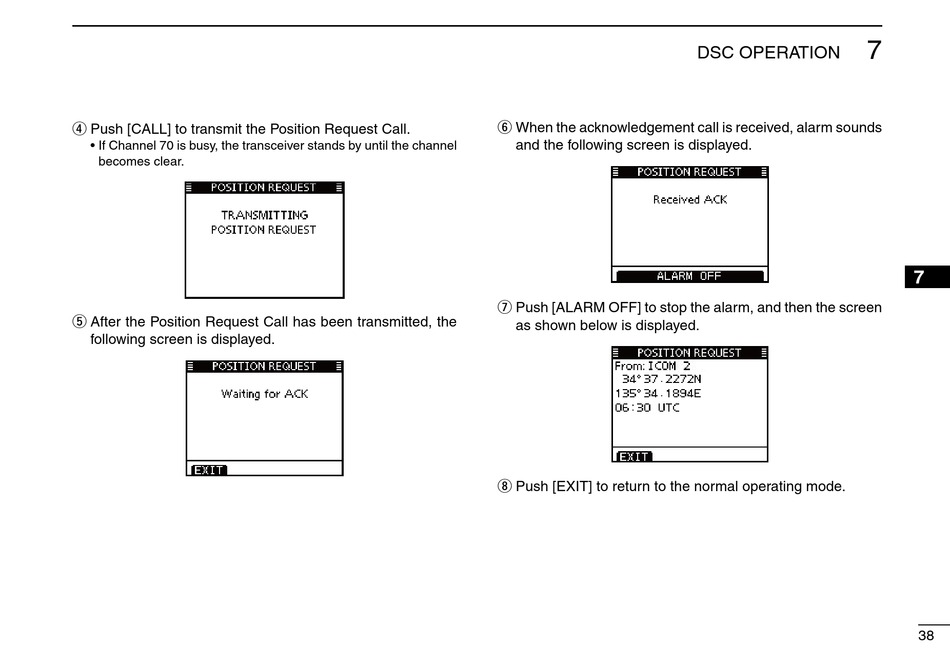

Icom IC-M506 Instruction Manual page 47

Push [CALL] to transmit the Position Request Call.
r
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
After the Position Request Call has been transmitted, the
t
following screen is displayed.
When the acknowledgement call is received, alarm sounds
y
and the following screen is displayed.
u Push [ALARM OFF] to stop the alarm, and then the screen
as shown below is displayed.
Push [EXIT] to return to the normal operating mode.
i
7
DSC OPERATION
