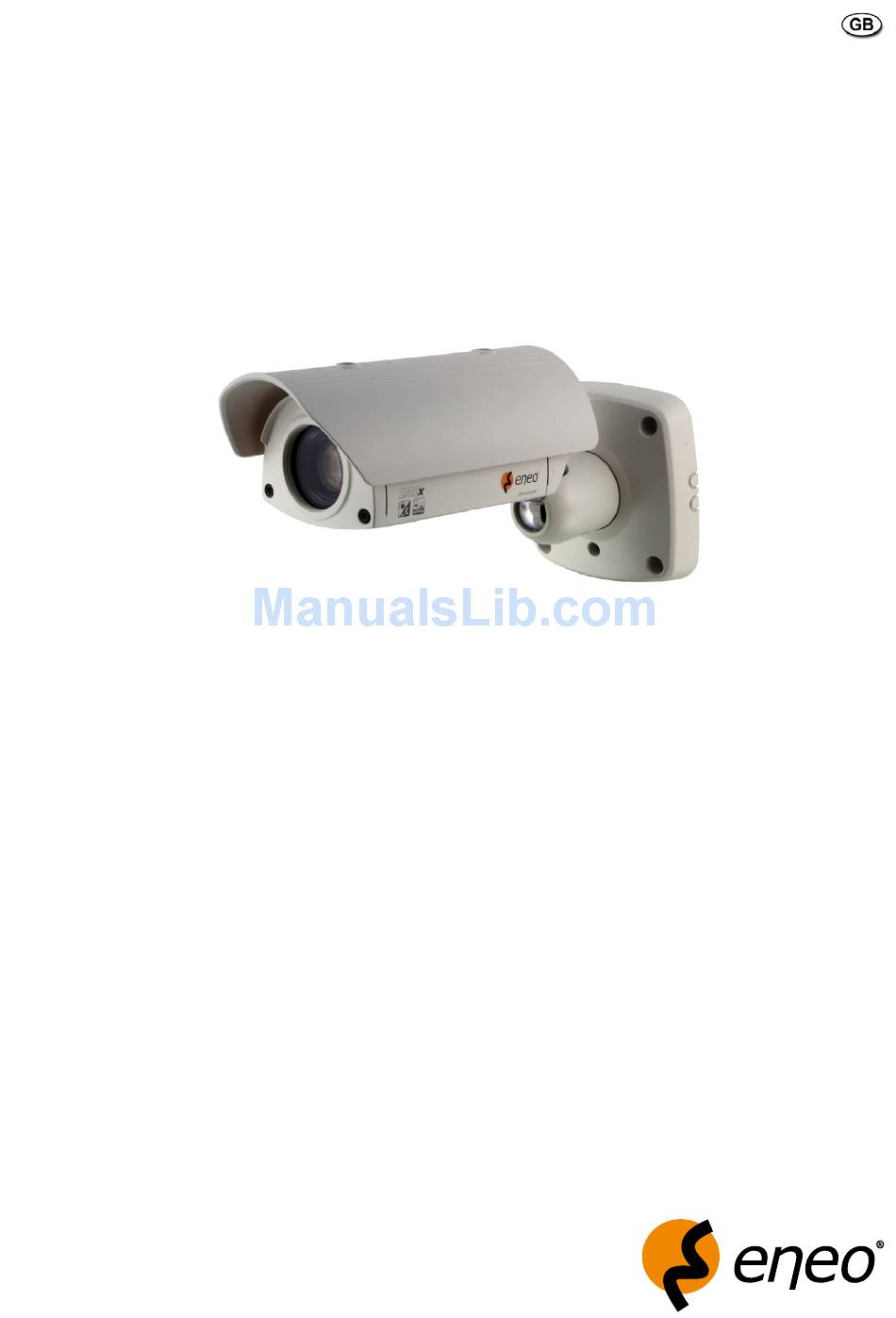

- Page 1 Installation and Operating Manual 1/4” Day/Night Camera, Outdoor Housing, 22x Zoom VKC-1416B-/PP...
-
Page 2: Table Of Contents
5..5 ALARM/MD/FD ......................................... 5..6 PRIVACY ........................................... 3 5..7 SPECIAL ........................................... 3 5..8 EFFECT ............................................ 3 5..9 CAM SET ..........................................4 6. Troubleshooting ............................................. 4 7. Maintenance ..............................................4 8. Specifications ..............................................5 9. Dimensional Drawings ............................................. 6 Betriebsanleitung www.videor.com Installation and Operating Instructions ⇒ www.eneo-security.com Mode d’emploi Instrukcja instalacji i obsługi... -
Page 3: Safety Instructions
1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • P rotect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. Operate the camera only at a temperature range of -0°C to +50°C and at a humidity of max. 90%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Never point the camera towards the sun with the aperture open. This can destroy the sensor. • Installation, maintenance and repair have to be carried out only by authorized service centers. Before opening the cover disconnect the unit from mains input. • The fitter is responsible for the system of protection being followed in accordance with the technical data, e.g. by sealing of the cable outlet with silicone. • Contact your local dealer in case of malfunction. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface. In case the dirt is hard to remove, use a mild detergent and wipe gently. •... -
Page 4: Camera Installation
3. Camera Installation Installation of the camera must be performed by qualified service personnel in accordance with all local national electrical and mechanical codes must perform installation of the camera. Perform the following steps to install the camera 3.1 Package Contents • Camera VKC-46B/PP • Instruction Manual • Mounting Kit 3.2 Operation Requirements RS-485 Multiplexer J-Box Camera Camera Camera 3 ... Video RS-485 DVR / VCR Keyboard Monitor RS-485 Typical System Configuration Video... -
Page 5: Parts Name
3.3 Parts Name Carefully remove the contents from the box, and verify that nothing was damaged in shipment. Sunshield AF camera module Mount base Bimetal Heater Connection cable Cable label 3.4 Installation There are two ways of installing the camera. . Cable through the wall with mount base. . Using the conduit knockout punched with the mount base. -
Page 6: Installation (Cable Through The Wall With The Mount Base)
3.4.1 Installation 1 (Cable through the Wall with the Mount Base) A. Drill the mounting location, using the template sheet (or the bottom of the mount base) as a template. B. Insert the plastic anchors into the hole which has just drilled. C. Connect BNC cable and communication lines. D. Fit the screw holes of the mount base into the plastic anchors. E. Screw up the M6 torx screws (T-0). F. Adjust the camera suitably using the pan & tilt function, and fix the camera using the socket set screw, hexagon wrench. Seal around the stand base tightly using the silicon rubber. Wall Mount base Set screw M5.0, L=5.0mm Plastic anchors (4x) Torx screws (T-0) M6.0 x 35.0 (4x) Socket set screw M5.0, L=5.0mm Hexagon wrench... -
Page 7: Instillation (Using The Conduit Knockout Punched With Mount Base)
3.4.2 Instillation 2 (Using the Conduit Knockout punched with Mount Base) A. Drill the mounting location, using the template sheet (or the bottom of the mount base) as a template B. Insert the plastic anchors into the hole which has just drilled. C. Connect BNC cable and communication lines. D. Fit the screw holes of the mount base into the plastic anchors. E. Remove the conduit knockout punched for the cable entry. F. Screw up the M6 torx screws (T-0). G. Adjust the camera suitably using the pan & tilt function, and fix the camera using the socket set screw, hexagon wrench. Wall Mount base Cable Socket set screw M5.0, L=5.0mm Plastic anchors (4x) Torx screws (T-0) M6.0 x 35.0 (4x) A conduit knockout punched for the cable entry Hexagon wrench... -
Page 8: Connection
4. Connection CAUTION: Do not connect the power cable until all other connections have been completed. if you complete the whole connection of cameras, then you have to cut the extra cable. Video (BNC) Monitor DVR / VCR (blue) (green) RS-485 connection (black/white) (gray) Day & night control (violet) (black) -
Page 9: External Day/Night Control & Zoom Preset Control
4.2 External Day/Night Control & Zoom Preset Control Is connect to an external sensor to receive day/night detection signals. External sensor switch ON/OFF GND (black) Day/Night Day: open EXT-IN Night: closed Colour mode: 0V output EXT-OUT B/W mode: 5V output EXT-IN (gray) EXT-OUT Zoom Preset (black/white) Zoom Preset NOTE: To validate the sensor inputs, select Function menu B/W mode the EXT. 4.3 Motion Detection &... -
Page 10: Power Connection
4.5 Power Connection POWER White (4VAC / VDC) Red (4VAC / VDC) CAUTION: Use certified/Listed Class 2 power supply transformer only. 4.6 External A/D Key Control External Controller Circuit Schematic A/D KEY A/D KEY Control Circuit Remote Controller GND (black) A/D KEY (orange) GND (black) A/D KEY (white) Remote Controller (# 92192) -
Page 11: Settings In The Osd Menu
5. Settings in the OSD Menu 5.1 OSD Main Screen ) Camera title AF X ) Status of the focus mode 3) Status of the zoom position 4) Camera ID 00X CAM 00 5.2 Main Menu <MAIN MENU> FOCUS ———————————— WB ————————————— AE — ————————————— 3 BLC/WDR ——————————— 4 ALARM/MD/FD ————————— 5 PRIVACY ———————————... -
Page 12: Ae (Auto Exposure)
5.2.3 AE (Auto Exposure) Select Exposure mode. (INDOOR / OUTDOOR / SHUT PRI / MANUAL) MODE <AE MENU> INDOOR Indoor white balance mode MODE OUTDOOR Outdoor white balance mode SHUTTER SHUT PRI Shutter priority exposure mode MANUAL Manual exposure mode GAIN Select shutter speed. (/60 (50)~/00K) SHUTTER Can be changed while in SHUT PRI and Manual mode. MAX DSS GAIN Gain control (MIN, LOW, MID, HIGH) FLICKERLESS Digital slow shutter on/off BRIGHTNESS Select maximum slow shutter value. (x~x8) MAX DSS Flickerless on/off FLICKERLESS Adjust brightness level. (0~50) BRIGHTNESS 5.2.4 BLC/WDR Select backlight compensation mode. (OFF / AUTO / MANUAL) MODE <BLC/WDR MENU> Select BLC area position. (~9) AREA BLC MODE Select BLC level.(HIGH / MID / LOW) -
Page 13: Special
5.2.6 PRIVACY Select mask area number. (~6) MASK SEL <PRIVACY MENU> Select mask enable/disable. MASK SEL Set mask area as default. DEFAULT Adjust the location of the mask area with boundary top and left. ADJ TOP/LEFT DEFAULT Adjust the location of the mask area with boundary bottom and right. ADJ BOT/RIGHT ADJ TOP/LEFT Select mask colour. (~8) COLOR ADJ BOT/RIGHT Mosaic display on/off MOSAIC COLOR Mosaic roughness setting. ( ~ 4) MOSAIC TYPE MOSAIC NOTE: The mosaic when the colour is transparent, is possible. MOSAIC TYPE 5.2.7 SPECIAL Select internal or line lock mode. (DC power is internal sync only) SYNC <SPECIAL MENU>... -
Page 14: Cam Set
5.2.9 CAM SET Select the camera ID (~55) CAM ID <CAM SET MENU> Select serial communication speed. (400 / 4800 / 9600 / 900bps) BAUD RATE CAM ID Select operating protocol. (FASTRAX / PELCO-P / PELCO-D / COMMAND) PROTOCOL BAUD RATE Select display mode. (ON/OFF/PUSH ON) DISP MODE PROTOCOL Select display item. (~) DISP ITEM DISP MODE Camera Title and ID display DISP ITEM Camera Title and ID, Zoom lens position display TITLE Select camera title menu. (A~Z, 0~9) TITLE ALARM TEXT SAVE A B C D E F G H I J K L M N O P Q R S T U V W X YA 0 3 456789 ( ) :... -
Page 15: Specifications
8. Specifications Type VKC-1416B/PP Art. No. 749 System Day & night Video standard CCIR/PAL Sensor size /4” Imager /4” Sony ExView HAD CCD Active picture elements 795(H) x 596(V) pixels Synchronization Internal Signal-to-noise ratio 50dB (AGC OFF) Gamma correction 0.45 Horizontal resolution 580 TVL (colour), 600 TVL (B&W) Sensitivity (at 50% video signal) 0.33 Lux (colour); 0.7Lux (B&W) at F. (measured) Exposure modes Automatic or manual mode: Iris, Shutter and AGC. Automatic mode: Iris priority, Shutter priority Automatic electronic shutter (ESC) /50 ~/00,000sec. -
Page 16: Dimensional Drawings
Protection rating IP66 Alarm inputs – Alarm outputs – Supply voltage VDC, 4VAC Power consumption Dimensions See drawing Weight .4 kg Certificates CE, IK0 Optional Accessories The optional accessories currently available can be found on our Homepage: www.videor.com 9. Dimensional Drawings Dimensions: mm eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Technical changes reserved. Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-00 © Copyright by Videor E. Hartig GmbH 03/0 www.videor.com...
