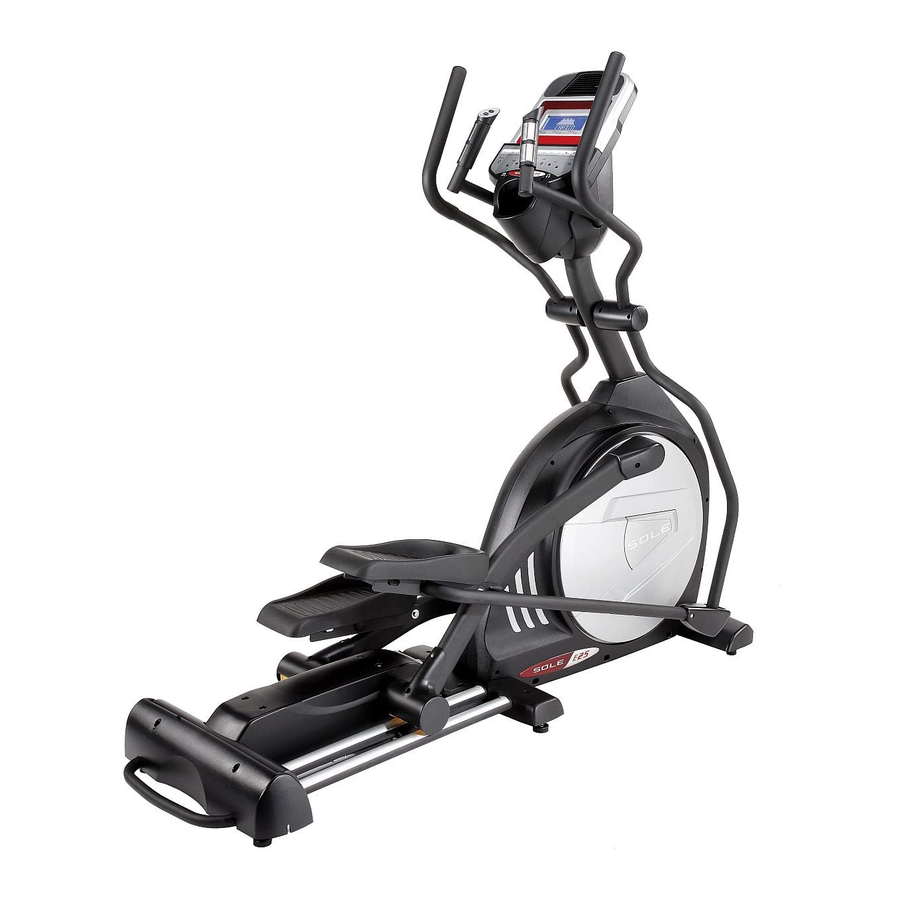

E25 / E35 ELLIPTICAL OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E25 and is the answer not in the manual?

Questions and answers

Related Manuals for Sole Fitness E25

Summary of Contents for Sole Fitness E25

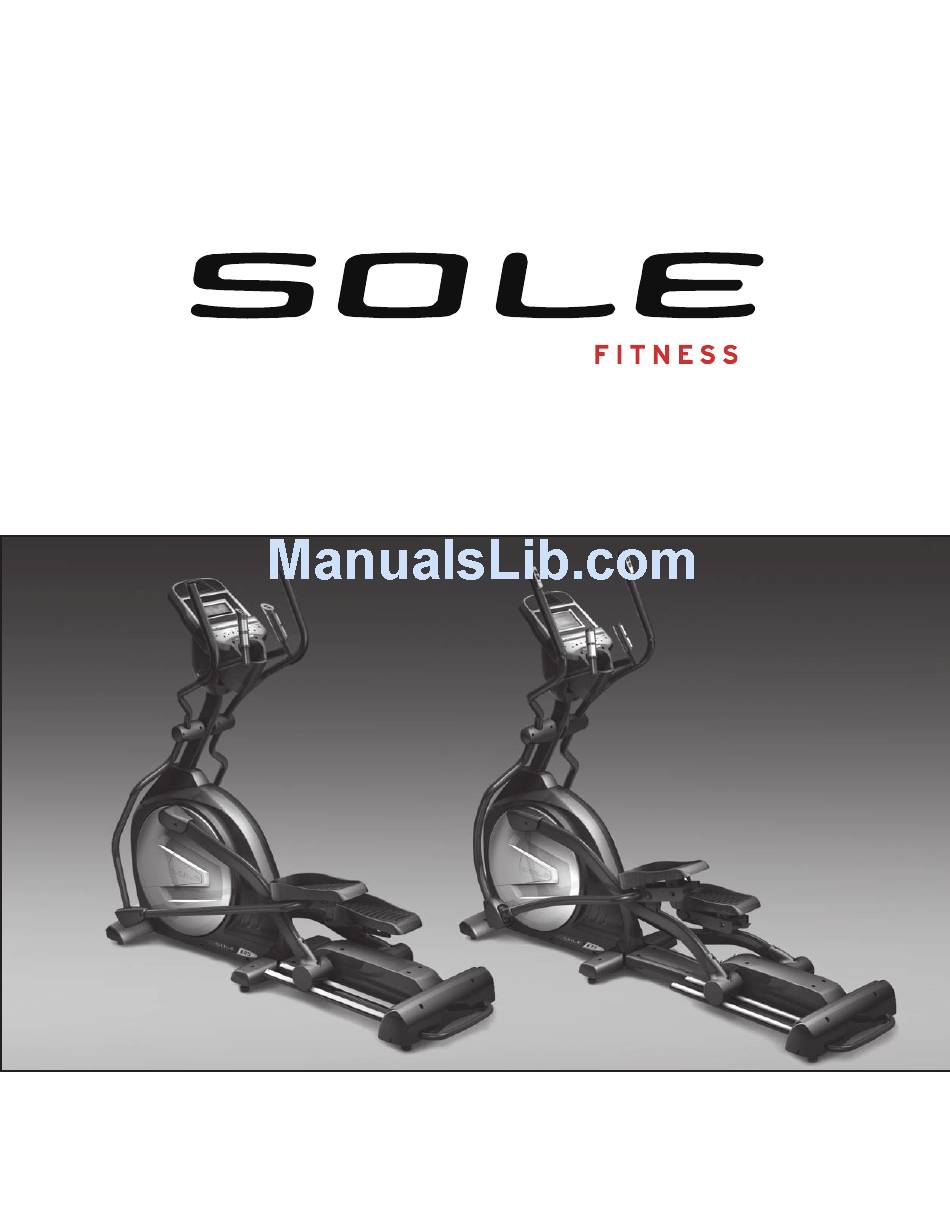

  • Page 1 E25 / E35 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...

  • Page 2: Table Of Contents

    Operation of Your New Elliptical Programmable Features Using Heart Rate Monitor General Maintenance EXPLODED VIEW DIAGRAM/PARTS LIST E25 EXPLODED VIEW DIAGRAM/PARTS LIST E35 Manufacturer’s Limited Warranty ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION.

  • Page 3: Product Registration

    Please complete and mail your registration card today and enjoy your new elliptical. Yours in Health, Name of Dealer Telephone Number of Dealer Purchase Date PRODUCT REGISTRATION RECORD YOUR SERIAL NUMBER the space provided below. Serial Number E35_20120629 E25 / E35 ELLIPTICAL...

  • Page 4: Important Safety Instructions

     Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! E25 / E35 ELLIPTICAL...

  • Page 5: Important Electrical Information

    Whenever the adapter is used, it must be held in place by a metal screw. E25 / E35 ELLIPTICAL...

  • Page 6: Important Operation Instructions

    If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. POWER CONNECTOR - FRONT, LEFT SIDE OF UNIT TRANSPORT INSTRUCTIONS The elliptical is equipped with two transport wheels which are engaged when the rear of the elliptical is lifted. E25 / E35 ELLIPTICAL...

  • Page 7: E25 Assembly Instructions

    E25 ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #142. 3/8” x 19 x 1.5T #157. 5/16” x 20 x 1.5T #156. 3/8” x 23 x 2T Flat Washer (2 pcs) Flat Washer (4 pcs) Curved Washer (2 pcs) #155. 3/8” x 2T #117.
  • Page 8 Nylon Nut (2 pcs) Hex Head Bolt (2 pcs) HARDWARE STEP 4 #126. 3.5 x 12mm #115. M5 x 15mm #125. M6 x 10mm Sheet Metal Screw (4 pcs) Phillips Head Screw (23 pcs) Phillips Head Screw (4 pcs) E25 / E35 ELLIPTICAL...
  • Page 9 Locate the hardware package. The hardware is separated into four steps. rst. Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. E25 / E35 ELLIPTICAL...
  • Page 10 E25 / E35 ELLIPTICAL...
  • Page 11 Install the Front Handle Bar Covers (83 & 84 right side; 85 & 86 left side) over the Handle Bar axle connections with the six screws (126). E25 / E35 ELLIPTICAL...
  • Page 12 ASSEMBLY STEP 1 STEP 2 ASSEMBLY E25 / E35 ELLIPTICAL...
  • Page 13 This step to be performed after the elliptical power is plugged in. Elevate the incline to Level 8 and install the incline Rail Front Cover (89) up against the Middle Stabilizer tube with two Phillips Head Screws (115) Tighten with Wrench (161). E25 / E35 ELLIPTICAL...
  • Page 14 ASSEMBLY STEP 3 ASSEMBLY STEP 4 E25 / E35 ELLIPTICAL...

  • Page 15: E35 Assembly Instructions

    Star Washer (4 pcs) Hex Head Bolt (2 pcs) #135. 5/16” x 2-1/4” #133. 3/8” x 1-1/2” Hex Head Bolt (4 pcs) Hex Head Bolt (2 pcs) #125. 3/8” x 2-1/4” Hex Head Bolt (1 pc) E25 / E35 ELLIPTICAL...
  • Page 16 Nylon Nut (2 pcs) Hex Head Bolt (2 pcs) HARDWARE STEP 4 #142. 3.5 x 12mm #139. M5 x 15mm #145. M6 x 10mm Sheet Metal Screw (10 pcs) Phillips Head Screw (29 pcs) Phillips Head Screw (4 pcs) E25 / E35 ELLIPTICAL...
  • Page 17 Locate the hardware package. The hardware is separated into four steps. rst. Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. E25 / E35 ELLIPTICAL...
  • Page 18 E25 / E35 ELLIPTICAL...
  • Page 19 Install the Handle Bar Cov- ers (105 & 106, 107 & 108) over the Handle Bar axle connections and secure with the eight Sheet Metal Screws (142). E25 / E35 ELLIPTICAL...
  • Page 20 ASSEMBLY STEP 1 STEP 2 ASSEMBLY E25 / E35 ELLIPTICAL...
  • Page 21 This step to be performed after the elliptical power is plugged in. Elevate the incline to Level 8 and install the incline Rail front cover (113) up against the middle stabilizer tube with four Phillips Head Screws (139). E25 / E35 ELLIPTICAL...
  • Page 22 ASSEMBLY STEP 3 ASSEMBLY STEP 4 E25 / E35 ELLIPTICAL...

  • Page 23: Elliptical Features

    (10) degrees. RAMP INCLINE ADJUSTMENT Both the E25 & E35 have a ramp incline feature that will further increase the variety of your workouts. When the incline is at its lowest position you get a normal elliptical workout. As the incline increases you will feel your knees rise higher with each step;...

  • Page 24: Operation Of Your New Elliptical

    PROGRAM BUTTONS (Manual, Hill, Fat Burn, Strength, Interval, MESSAGE WINDOW 2 User, 2HR) (Program Name, RPM, Watts, Laps, & Incline) DISPLAY VIEW CONTROL KEYS FAN POWER SWITCH AUDIO IN JACK (MP3, CD, OR SMARTPHONE) HEADPHONE JACK E25 / E35 ELLIPTICAL...

  • Page 25: Console Operation

    (heart rate in beats per minute). Pressing the Display Button one more time will set the display to show the Incline Level. Segment time is next, which is a count down clock for the current pro le segment, then scan mode where the displayed information will change every 4 seconds. E25 / E35 ELLIPTICAL...
  • Page 26 You may plug any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio, CD player or even a TV or computer audio signal. There is also a Headphone Jack ( )for private listening. E25 / E35 ELLIPTICAL...
  • Page 27 Note: The chest strap transmitter is not included with the purchase of the E25 elliptical. You may purchase one from the Sole website: www.soletreadmills.com or through the retailer you bought this product from. If you buy the chest strap from somewhere other than Sole, make sure it’s signal is compatible with the console of this elliptical.

  • Page 28: Programmable Features

    8. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. During the summary you may also press one of the User keys to save this workout. E25 / E35 ELLIPTICAL...

  • Page 29: Fat Burn

    This program cient due to spikes in heart rate, between recovery periods. This aids in heart rate recovery from intense activities. WORK PROFILE INCLINE PROFILE E25 / E35 ELLIPTICAL...
  • Page 30 10. During the User 1 or User 2 program you will be able to scroll through the data in the message window by pressing the Display key. 11. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E25 / E35 ELLIPTICAL...
  • Page 31 With all SOLE Heart Rate Control elliptical machines you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode erent programs. The Heart Rate Control program automatically controls resistance at the pedals. E25 / E35 ELLIPTICAL...
  • Page 32 If you are feeling tired and sluggish, it is because your body needs a break. In this condition your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. E25 / E35 ELLIPTICAL...

  • Page 33: Using Heart Rate Monitor

    The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. Another Individual wearing a transmitter within 3’ of your machine’s console. If you continue to experience problems contact your dealer. E25 / E35 ELLIPTICAL...
  • Page 34 HR2: Program the same way as the HR1 erence is HR2 has a default % of heart rate maximum value of 80%. This program focuses on cardiovascular conditioning vs. the HR1 program which focuses on weight/body fat loss. E25 / E35 ELLIPTICAL...

  • Page 35: General Maintenance

    Incline Calibration: If there is a problem with the incline, try running the calibration. Press the Incline Up key and the Start key at the same time. Hold them down for 5 seconds and the Incline calibration will start and run automatically. If the problem persists contact Sole service department. E25 / E35 ELLIPTICAL...
  • Page 36 EXPLODED VIEW DIAGRAM E25 E25 / E35 ELLIPTICAL...
  • Page 37 17102545~2 Console Bottom Cover 45~3 17102545~3 Fan Fixing Plate 45~4 17102545~4 Deflector Fan Grill 45~5 17102545~5 Speaker Grill Anchor 45~6 17102545~6 Fan Grill Anchor 45~7 17102545~7 Fan Assembly 45~8 17102545~8 300m/m_Receiver, HR 45~9 17102545~9 Interface Board E25 / E35 ELLIPTICAL...
  • Page 38 17102575 Round Disk 17102576 Round Disk Cover 17102577 Pedal Arm Cover (L) 17102578 Pedal Arm Cover (R) 17102579 Front Stabilizer Cover 17102580 Pedal (L) 17102581 Pedal (R) 17102582 Slide Wheel Cover 17102583 17102584 17102585 17102586 17102587 E25 / E35 ELLIPTICAL...
  • Page 39 171025147 " 4 × t a l 171025148 Ø × × t a l 171025150 " 6 × × t a l 171025151 Ø5/16"_Star Washer 171025152 M8 × 170m/m_J Bolt 171025153 Ø17_Wave Washer E25 / E35 ELLIPTICAL...
  • Page 40 × 171025177 " 6 × _ " t l o 171025178 M8 × 6.3T_Nut 171025179 n i l 171025180 M6 × 10m/m_Thumb Head Socket Screw 171025181 PVC Bushing 171025182 Axle Stopper 171025183 × t o l E25 / E35 ELLIPTICAL...
  • Page 41 EXPLODED VIEW DIAGRAM E35 E25 / E35 ELLIPTICAL...
  • Page 42 17103545~4 Deflector Fan Grill 45~5 17103545~5 Speaker Grill Anchor 45~6 17103545~6 Fan Grill Anchor 45~7 17103545~7 400m/m_Fan Assembly 45~8 17103545~8 45~9 17103545~9 Interface Board 45~10 17103545~10 Console Display Board 45~11 17103545~11 Keyboard 45~12 17103545~12 45~13 17103545~13 2W Amplifier Controller E25 / E35 ELLIPTICAL...
  • Page 43 Ø32 (2.0T)_Round Cap Spacer Bushing 17103581 17103582 Ø × Ø × 17103583 × × 17103584 Ø ' ' 8 × Ø × 17103585 Ø × Ø × Ø × 17103586 Ø25.5 × Ø33.5 × 1.5T_Nylon Wave Washer E25 / E35 ELLIPTICAL...
  • Page 44 _ " t l o 171035134 " 6 × _ " t l o 171035135 " 6 × _ " t l o 171035136 × t l o 171035137 " 8 × _ " t l o E25 / E35 ELLIPTICAL...
  • Page 45 171035183 Ø5/16"_Star Washer 171035184 171035185 Short Phillips Head Screw Driver 171035186 Phillips Head Screw Driver 171035187 Ø5 × 16 × 1.5T_Flat Washer 171035191 Ø10 × Ø1 × 44L_Pedal Tension Spring 171035192 171035193 M8 × 9T_Nyloc Nut E25 / E35 ELLIPTICAL...
  • Page 46 × _ " t l o 171035199 Chest Strap (Optional) 171035200 M8 × 6.3T_Nut 171035201 n i l 171035202 M6 × 10m/m_Thumb Head Socket Screw 171035203 PVC Bushing 171035204 × t o l Axle Stopper 171035205 E25 / E35 ELLIPTICAL...

  • Page 47: Manufacturer's Limited Warranty

    A RETURN AUTHORIZATION NUMBER. All units arriving with- out a return authorization number will be refused. 4. For any further information, or to contact our service department by mail, send your correspondence to: 6050 Don Murie Street Niagara Falls, ON L2G 0B3 E25 / E35 ELLIPTICAL...
