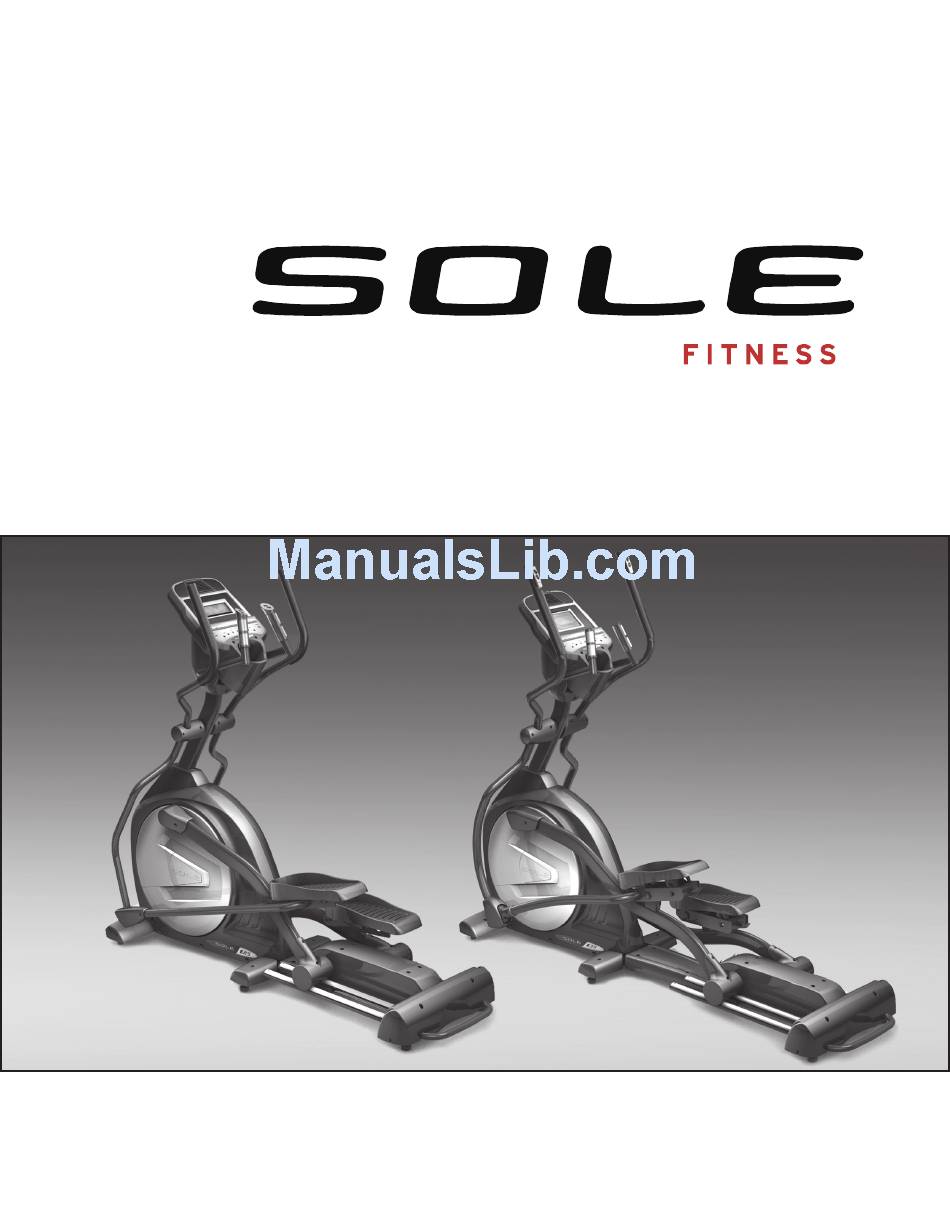

E25 / E35 ELLIPTICAL OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E25 and is the answer not in the manual?

Questions and answers

Related Manuals for Sole Fitness E25

Summary of Contents for Sole Fitness E25

  • Page 1 E25 / E35 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Transport Instructions E25 Assembly Instructions E35 Assembly Instructions Elliptical Features Operation of Your New Elliptical Programmable Features Using Heart Rate Transmitter General Maintenance Manufacturer’s Limited Warranty...

  • Page 4: Product Registration

    Serial Number REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to SOLE. You can also go to www.soleellipticals.com under the support tab to register online. E25_E35_20111111 E25 / E35 ELLIPTICAL...

  • Page 5: Important Safety Instructions

    „ Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! E25 / E35 ELLIPTICAL...

  • Page 6: Important Electrical Information

    Whenever the adapter is used, it must be held in place by a metal screw. E25 / E35 ELLIPTICAL...

  • Page 7: Important Operation Instructions

    If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. POWER CONNECTOR - FRONT, LEFT SIDE OF UNIT TRANSPORT INSTRUCTIONS The elliptical is equippped with two transport wheels which are engaged when the rear of the elliptical is lifted. E25 / E35 ELLIPTICAL...
  • Page 8 E25 ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #142. 3/8” x 19 x 1.5T #157. 5/16” x 20 x 1.5T #156. 3/8” x 23 x 2T Flat Washer (2 pcs) Flat Washer (4 pcs) Curved Washer (2 pcs) #155. 3/8” x 2T #117.
  • Page 9 Hex Head Bolt (2 pcs) HARDWARE STEP 4 #126. 3.5 x 12mm #115. M5 x 15mm #125. M6 x 10mm Sheet Metal Screw (4pcs) Phillips Head Screw (23 pcs) Phillips Head Screw (4 pcs) Bracket (2 pcs) E25 / E35 ELLIPTICAL...

  • Page 10: E25 Assembly Instructions

    Locate the hardware package. The hardware is separated into four steps. Remove the tools first. Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. E25 / E35 ELLIPTICAL...
  • Page 11 #21. Bracket (2 pcs) Install the Front Handle Bar Covers (83 & 84 right side; 85 & 86 left side) over the Handle Bar axle connections with the six screws (126). E25 / E35 ELLIPTICAL...
  • Page 12 ASSEMBLY STEP 1 ASSEMBLY STEP 2 E25 / E35 ELLIPTICAL...
  • Page 13 This step to be performed after the elliptical power is plugged in. Elevate the incline to Level 8 and install the incline Rail Front Cover (89) up against the Middle Stabilizer tube with four Phillips Head Screws (115). Tighten with Wrench (161). E25 / E35 ELLIPTICAL...
  • Page 14 ASSEMBLY STEP 3 ASSEMBLY STEP 4 E25 / E35 ELLIPTICAL...
  • Page 15 Star Washer (4 pcs) Hex Head Bolt (2 pcs) #135. 5/16” x 2-1/4” #133. 3/8” x 1-1/2” Hex Head Bolt (4 pcs) Hex Head Bolt (2 pcs) #125. 3/8” x 2-1/4” Hex Head Bolt (1 pcs) E25 / E35 ELLIPTICAL...
  • Page 16 Hex Head Bolt (2 pcs) HARDWARE STEP 4 #142. 3.5 x 12mm #139. M5 x 15mm #145. M6 x 10mm Sheet Metal Screw (10 pcs) Phillips Head Screw (29 pcs) Phillips Head Screw (4 pcs) Bracket (2 pcs) E25 / E35 ELLIPTICAL...

  • Page 17: E35 Assembly Instructions

    Locate the hardware package. The hardware is separated into four steps. Remove the tools first. Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. E25 / E35 ELLIPTICAL...
  • Page 18 Install the Handle Bar Covers (105 & 106, 107 & 108) over the Handle Bar axle connections and secure with the eight Sheet Metal Screws (142). E25 / E35 ELLIPTICAL...
  • Page 19 ASSEMBLY STEP 1 ASSEMBLY STEP 2 E25 / E35 ELLIPTICAL...
  • Page 20 This step to be performed after the elliptical power is plugged in. Elevate the incline to Level 8 and install the incline Rail front cover (113) up against the middle stabilizer tube with four Phillips Head Screws (139). E25 / E35 ELLIPTICAL...
  • Page 21 ASSEMBLY STEP 3 ASSEMBLY STEP 4 E25 / E35 ELLIPTICAL...

  • Page 22: Elliptical Features

    (10) degrees. RAMP INCLINE ADJUSTMENT Both the E25 & E35 have a ramp incline feature that will further increase the variety of your workouts. When the incline is at its lowest position you get a normal elliptical workout. As the incline increases you will feel your knees rise higher with each step;...

  • Page 23: Operation Of Your New Elliptical

    PROGRAM BUTTONS (Manual, Hill, Fat Burn, Strength, Interval, MESSAGE WINDOW 2 User, 2HRC) (Program Name, RPM, Watts, Laps, & Incline) DISPLAY VIEW CONTROL KEYS FAN POWER SWITCH AUDIO IN JACK (MP3, CD, OR SMARTPHONE) HEADPHONE JACK E25 / E35 ELLIPTICAL...

  • Page 24: Console Operation

    Ramp and Level Up or Down buttons. The dot matrix display will be showing a track with a blinking dot indicating your progress as it travels around the track. E25 / E35 ELLIPTICAL...
  • Page 25 You may plug any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio, CD player or even a TV or computer audio signal. There is also a Headphone Jack ( )for private listening. E25 / E35 ELLIPTICAL...
  • Page 26 Note: The chest strap transmitter is not included with the purchase of the E25 elliptical. You may purchase one from the Sole website: www.soletreadmills.com or through the retailer you bought this product from. If you buy the chest strap from somewhere other than Sole, make sure it’s signal is compatible with the console of this elliptical.

  • Page 27: Programmable Features

    Display key. 8. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E25 / E35 ELLIPTICAL...

  • Page 28: Fat Burn

    Your cardiovascular system gets programmed to use oxygen more efficiently this way. This program also forces your body to become more efficient due to spikes in heart rate, between recovery periods. This aids in heart rate recovery from inense activities. WORK PROFILE INCLINE PROFILE E25 / E35 ELLIPTICAL...
  • Page 29 Display key. 10. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E25 / E35 ELLIPTICAL...
  • Page 30 Display key. 11. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E25 / E35 ELLIPTICAL...
  • Page 31 With all SOLE Heart Rate Control elliptical machines you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs. The Heart Rate Control program automatically controls resistance at the pedals. E25 / E35 ELLIPTICAL...
  • Page 32 If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. E25 / E35 ELLIPTICAL...

  • Page 33: Using Heart Rate Transmitter

    The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. Another Individual wearing a transmitter within 3’ of your machine’s console. If you continue to experience problems contact your dealer. E25 / E35 ELLIPTICAL...
  • Page 34 Enter key to accept the new number and proceed on to the next screen. 3. You are now asked to enter your Age (E25) or Weight (E35). You may adjust the age/ weight number using the Ramp or Level Up and Down keys or the numeric key pad, then press Enter to continue.

  • Page 35: General Maintenance

    Incline Calibration: If there is a problem with the incline, try running the calibration. Press the Ramp Up key and the Start key at the same time. Hold them down for 5 seconds and the Incline calibration will start and run automatically. If the problem persists contact Sole service department. E25 / E35 ELLIPTICAL...

  • Page 36: Manufacturer's Limited Warranty

    Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills. com/technical.php?p=service. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new elliptical contact SOLE technical service at 866-MYSOLE1 (697-6531).
