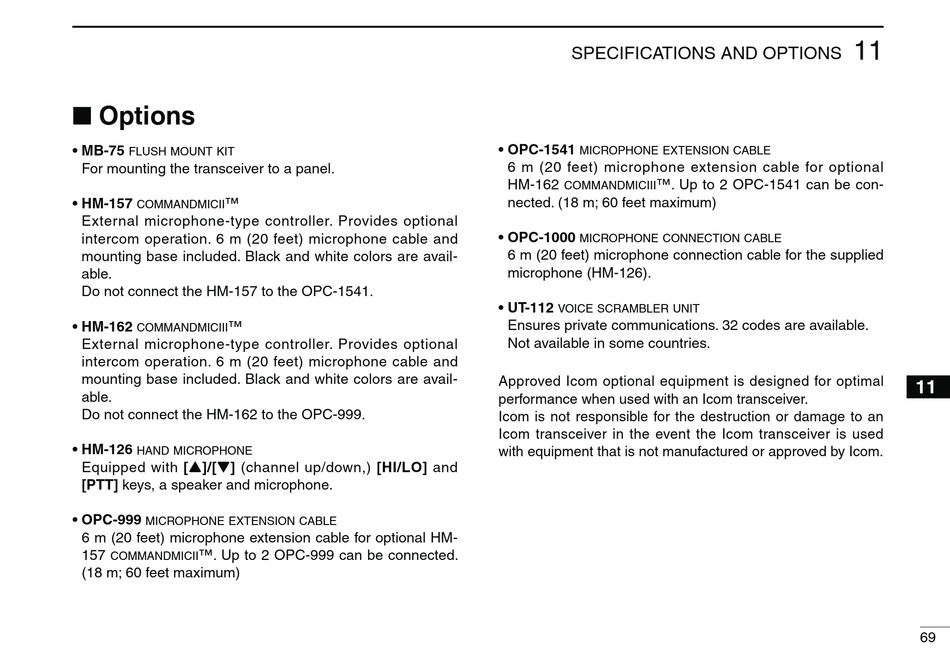

Options
FLUSH MOUNT KIT
For mounting the transceiver to a panel.
™
COMMANDMICII
External microphone-type controller. Provides optional
intercom operation. 6 m (20 feet) microphone cable and
mounting base included. Black and white colors are avail-
able.
Do not connect the HM-157 to the OPC-1541.
™
COMMANDMICIII
External microphone-type controller. Provides optional
intercom operation. 6 m (20 feet) microphone cable and
mounting base included. Black and white colors are avail-
able.
Do not connect the HM-162 to the OPC-999.
HAND MICROPHONE
Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and
[PTT] keys, a speaker and microphone.
MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for optional HM-
™. Up to 2 OPC-999 can be connected.
COMMANDMICII
157
(18 m; 60 feet maximum)
SPECIFICATIONS AND OPTIONS
MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for optional
™. Up to 2 OPC-1541 can be con-
COMMANDMICIII
HM-162
nected. (18 m; 60 feet maximum)
MICROPHONE CONNECTION CABLE
6 m (20 feet) microphone connection cable for the supplied
microphone (HM-126).
VOICE SCRAMBLER UNIT
Ensures private communications. 32 codes are available.
Not available in some countries.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used
with equipment that is not manufactured or approved by Icom.
