CHAPTER 3: INDOOR CYCLE ASSEMBLY

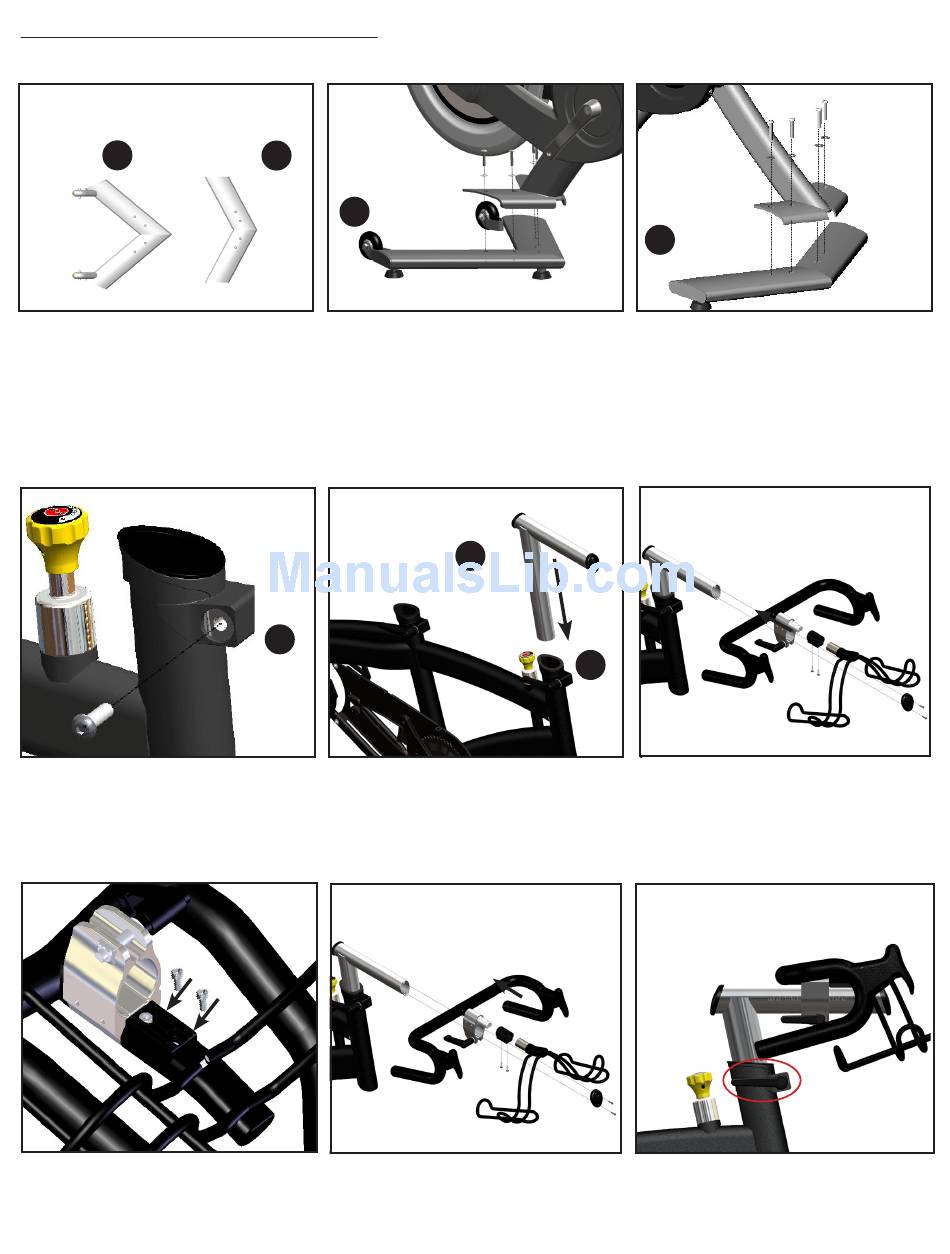

Attach Stabilizer Feet

A
Rear stabilizer
Front stabilizer
1. Note the difference between the front
and rear stabilizers. The larger stabi-
lizer with wheels goes in the rear of the
indoor cycle (under the flywheel).

Attach Handlebar

1. Remove 6mm bolt in main frame as-
sembly using 6mm Allen wrench. The
6mm bolt can be kept in place of the
large L handle for a more permanent
placement of the handlebar height.
Handlebar
4. Secure the water bottle holder and
handlebar together using the previ-
ously removed, two 4mm spacer bolts
and washers, on the underside of the
handlebar.
B
A
Rear stabilizer
2. Attach the rear stabilizer to the
rear of the main frame with four 5mm
stabilizer bolts and stabilizer washers
using the 5mm Allen wrench. Tighten
the inner bolts first, and then proceed
to the outer bolts to ensure the foot is
secured properly and evenly.
Handlebar post
C
Main frame
assembly
2. Insert the handlebar post into the
head tube and secure it by inserting
the large L handle into the main frame
assembly on the right side of the in-
door cycle (chain guard side).
Handlebar post
Water
bottle
spacer
Water
bottle
holder
Handlebar
5. Carefully slide the road style handlebar
assembly onto the handlebar post. Secure
the plastic end cap to the handlebar post
using two end cap screws with the Phillips
screwdriver side of the 6mm Allen wrench.
A
3. Attach the front stabilizer to the
front of the main frame with four 5mm
stabilizer bolts and stabilizer washers
using the 5mm Allen wrench. Tighten
the inner bolts first, and then proceed
to the outer bolts to ensure the foot is
secured properly and evenly.
D
M
Large L
handle
3. Slide the water bottle holder and
water bottle spacer onto the road style
handlebar.
End cap
6. Once the road style handlebar is in
place, secure it with the small L handle
on the right side of the indoor cycle
(chain guard side).
B Front stabilizer
Handlebar
Water bottle holder
Small L
handle
Water bottle
spacer
