CHAPTER 3: indooR CyClE AssEmbly

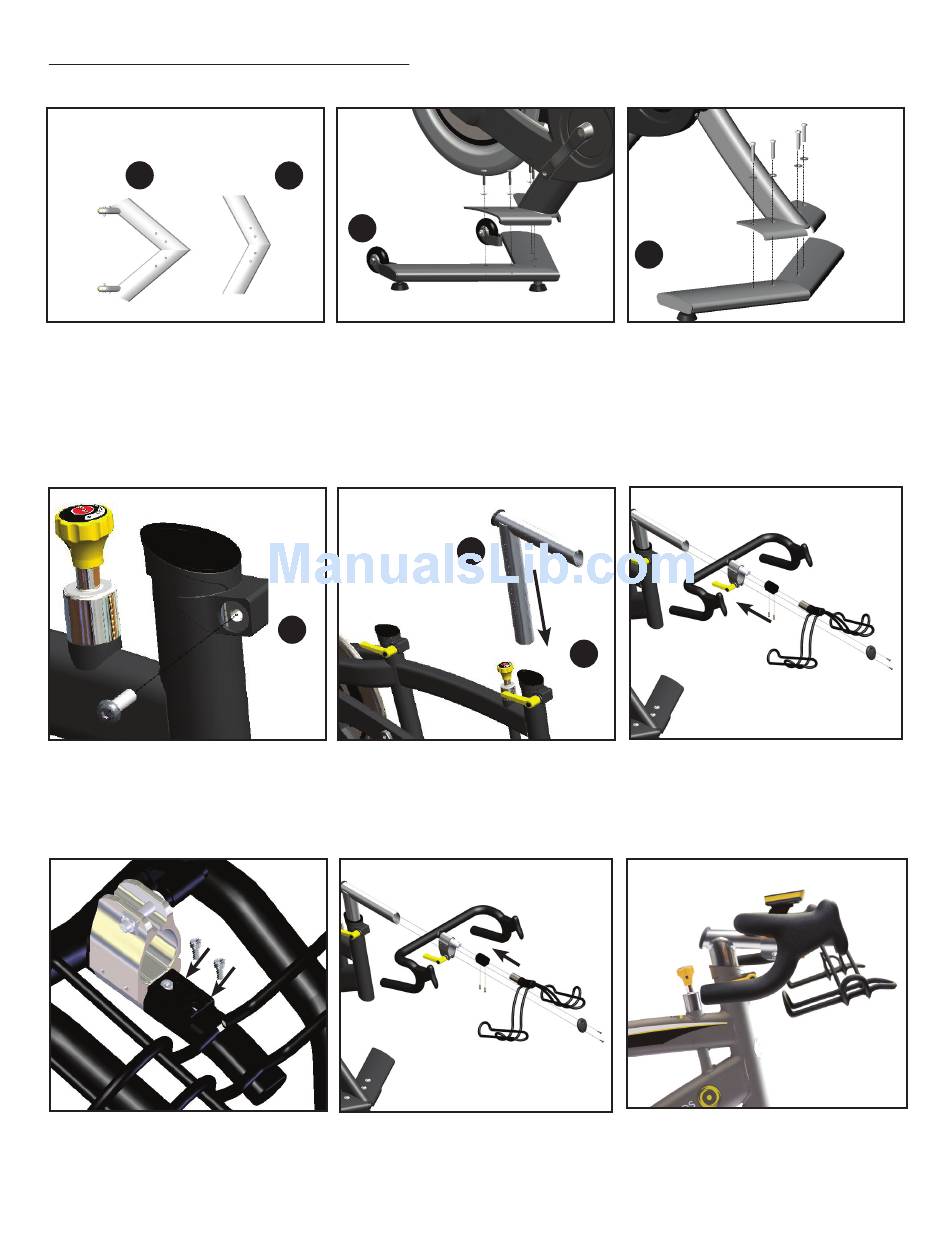

Attach Stabilizer Feet

A
Rear stabilizer
Front stabilizer
1. Note the difference between the front
and rear stabilizers. The larger stabilizer
with wheels goes in the rear of the indoor
cycle (under the fl ywheel).

Attach handlebar

1. Remove 6mm bolt in main frame as-
sembly using 6mm Allen wrench. The
6mm bolt can be kept in place of the
large L handle for a more permanent
placement of the handlebar height.
Handlebar
4. Secure the water bottle holder and
handlebar together using the previously
removed, two 4mm spacer bolts and
washers, on the underside of the handle-
bar.
B
A
Rear stabilizer
2. Attach the rear stabilizer to the rear of
the main frame with four 5mm stabilizer
bolts and stabilizer washers using the
5mm Allen wrench. Tighten the inner
bolts fi rst, and then proceed to the outer
bolts to ensure the foot is secured prop-
erly and evenly.
Handlebar post
C
Main frame
assembly
2. Insert the handlebar post into the head
tube and secure it by inserting the large L
handle into the main frame assembly on
the right side of the indoor cycle (chain
guard side).
Handlebar post
Water
bottle
spacer
Water
bottle
holder
Handlebar
5. Carefully slide the road style handlebar
assembly onto the handlebar post.
Secure the plastic end cap to the
handlebar post using two end cap screws
with the Phillips screwdriver side of the
6mm Allen wrench.
B
A
3. Attach the front stabilizer to the front
of the main frame with four 5mm stabi-
lizer bolts and stabilizer washers using
the 5mm Allen wrench. Tighten the
inner bolts fi rst, and then proceed to the
outer bolts to ensure the foot is secured
properly and evenly.
D
M
Large L
handle
3. Slide the water bottle holder and water
bottle spacer onto the road style handle-
bar.
End cap
6. Once the road style handlebar is in
place, secure it with the small L handle on
the right side of the indoor cycle (chain
guard side).
Front stabilizer
Handlebar
Water bottle
spacer
Water bottle holder
Small L
handle
3
