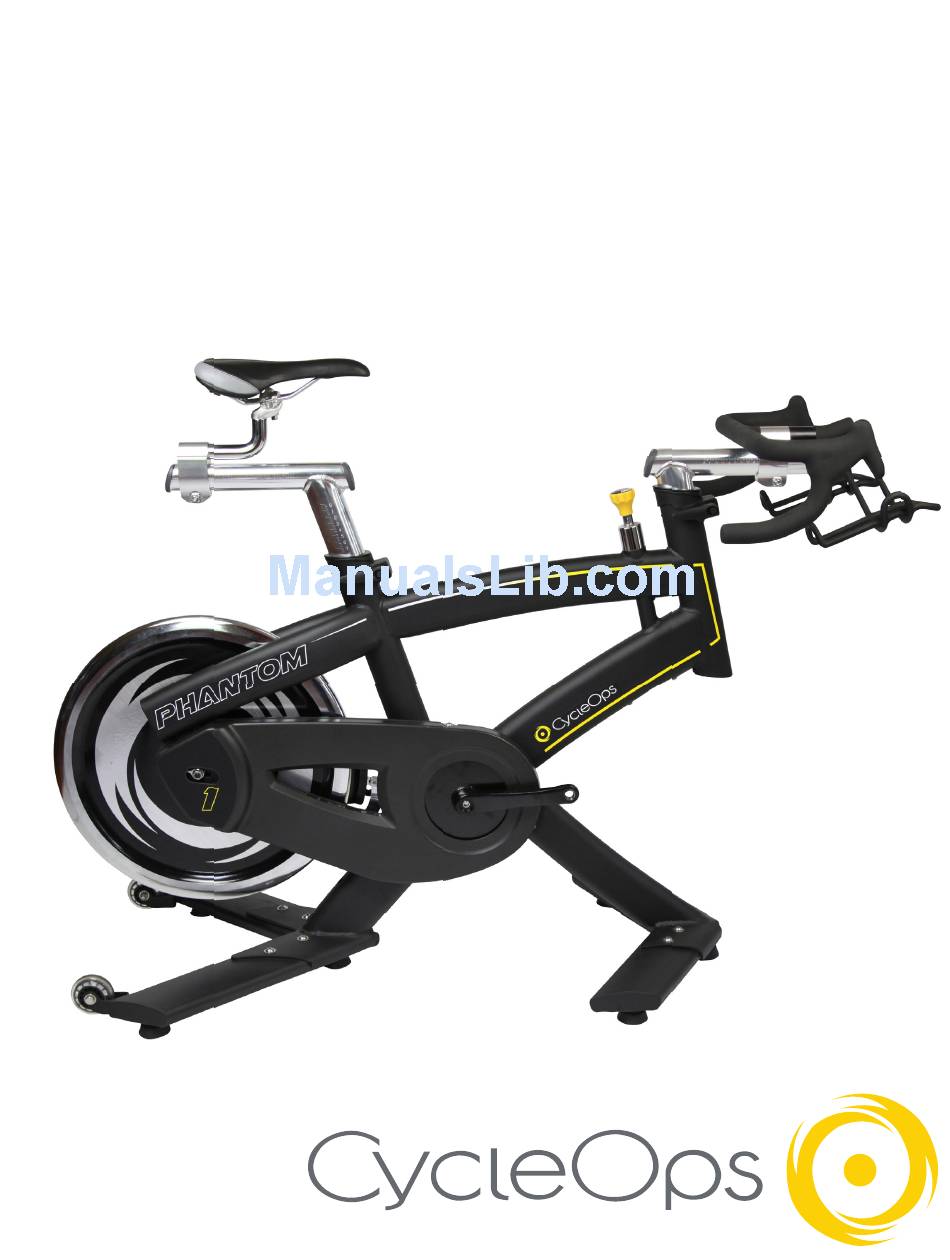

- Page 1 CYCLEOPS PHANTOM SERIES INDOOR CYCLES User Guide Deutsche Anweisungen www.cycleops.com/userguide Istruzioni italiane www.cycleops.com/userguide Nederlandse instructies www.cycleops.com/userguide Norsk instruksjoner www.cycleops.com/userguide...
-
Page 2: Table Of Contents
10. WARRANTY..................13 CHAPTER 1: BEFORE BEGINNING Congratulations on choosing the CycleOps Phantom Series indoor cycle! The CycleOps Phantom Series indoor cycle takes cycling to the next level as the only indoor cycle to fit, feel and ride like an outdoor bike. - Page 3 CHAPTER 2: UNPACKING THE CYCLEOPS PRO SERIES INDOOR CYCLE Place the box upright and cut the plastic binding straps. Lift the top of the box to expose the indoor cycle and packaging. Remove all parts from the box including foam inserts. Ensure all the following parts are included:...
-
Page 4: Indoor Cycle Assembly
CHAPTER 3: INDOOR CYCLE ASSEMBLY Attach Stabilizer Feet Rear stabilizer Front stabilizer Rear stabilizer Front stabilizer 1. Note the difference between the front 2. Attach the rear stabilizer to the 3. Attach the front stabilizer to the and rear stabilizers. The larger stabi- rear of the main frame with four 5mm front of the main frame with four 5mm lizer with wheels goes in the rear of the... -
Page 5: Attach Seat
Attach Seat A seat has been included with the CycleOps Phantom Series indoor cycle. If desired, the indoor cycle can accommodate an off-the-shelf seat to personalize the fit, feel and ride. In some instances, a shorter seat post clamp is required for individuals under five feet tall. -
Page 6: Level The Indoor Cycle
Seat Seat Seat post Seat post clamp Seat post clamp End cap 4. Attach seat to seat post clamp. 5. Loosen the 6mm bolt and place seat 6. Secure the plastic end cap to the rails within the clamp. Adjust to de- seat post using two end cap screws sired seat placement using 6mm Allen with the Phillips screwdriver side of... -
Page 7: Attach Pedals
CHAPTER 4: GENERAL USE The CycleOps Phantom Series indoor cycle is easy to use. Adjust the seat and handlebar to alter the ride position. Adjust resistance to change pace/cadence. Adjust Seat Small L handle Large L handle 1. -
Page 8: Adjust Handlebar
Control Resistance (Phantom 1 & 3 only) The CycleOps Phantom Series indoor cycle allows the user full control over resistance by adjusting the resistance knob. Lower resistance levels enable the pedals to turn at a faster (less difficult) pace/cadence. Higher resistance levels enable the pedals to turn at a slower (more difficult) pace/cadence. -
Page 9: Common Adjustments
CHAPTER 5: COMMON ADJUSTMENTS Replace Speed Sensor Battery (CycleOps Indoor Cycle Upgrade Kit) Over time, the lithium battery in the speed sensor will need to be changed. See Preventative Maintenance for when to replace. 1. Using a 4mm Allen wrench, remove 2. -
Page 10: Replace Hub Batteries
Over time, the batteries that power the electronics in the hub will need to be changed. See Preventative Maintenance for when to replace. The CycleOps Phantom Series indoor cycle uses two AA batteries. The battery cap is split to make this task as easy as possible. -
Page 11: Adjust Flywheel/Chain Tension
Adjust Flywheel/Chain Tension Over time and after substantial use, the chain on the CycleOps Phantom Series indoor cycle will stretch. Adjusting the tension/alignment is a difficult task and improper adjustment can lead to premature chain/cog wear. It is recommended this task be done with assistance from an authorized indoor cycle dealer. The chain tension has been adjusted properly when there is little or no play felt when the pedals are rocked back and forth. -
Page 12: Adjust Brake Pad
(lightest resistance). CHAPTER 6: PREVENTATIVE MAINTENANCE Performing necessary preventative maintenance is key to keeping the CycleOps Phantom Series indoor cycle in proper working condition. Following the recommended maintenance procedures will help extend the life of the CycleOps Phan- tom Series indoor cycle. -
Page 13: Electronics
• Replace batteries in hub or sensor. CHAPTER 7: ELECTRONICS The CycleOps Phantom 3 Series Indoor Cycle includes the Joule GPS display. Please consult the Joule GPS user guide included with the Joule GPS for specific information regarding the functionality of the unit. -
Page 14: Radio Frequency (Rf) Interference
CHAPTER 9: IMPORTANT PRECAUTIONS It is the responsibility of the owner to ensure that all users of this CycleOps Phantom Series indoor cycle are adequately informed of all warnings and precautions. For questions regarding this guide, contact Customer Service at the number listed on the back panel of this guide. -
Page 15: Warranty
Often small parts can repaired at a bike shop, instead of the longer and more expensive option of sending the unit back for repair. To warranty the CycleOps Phantom Series indoor cycle, return the product, where purchased or contact Saris Cycling Group, Inc.
