Method Of Coping With Shift Lens Error - Sony HDR-PJ260 Service Manual

Ver. 1.1 2012.01
The changed portions from
Ver. 1.0 are shown in blue.
Self-diagnosis Code
Symptom/State
Block Detailed
Function Code
E 6 2 2 0 Abnormality of thermistor.
E 9 1 0 1 * Abnormality when flash is beingcharged.
E 9 1 0 2 * Abnormality of LED Video light.
Abnormality of LED Video light Tempera-
E 9 1 0 3 *
ture detection.
Battery current value goes over the max
E 9 2 0 1
discharge current
Fault of writing or erasing the flash mem-
E 9 4 0 0
ory
E 9 4 0 1 Internal flash memory fault
E 9 4 0 2 BGM data error
E 9 5 0 0 GPS hardware error
E 9 6 0 0 Map area mount error
E 9 7 0 0 Projector hardware error
Note 3: When the lens block was replaced, start the Adjust Manual in the Adjust Station and execute the necessary adjustment items.
After the adjustment, make sure with the STEADYSHOT turned ON that the steadyshot functions appropriately in the handheld operation.
HDR-PJ260/PJ260E/PJ260V/PJ260VE/XR260E/XR260V/XR260VE_L2
Correction
Refer to [1-7-4. E : 62 : 20 (Abnormality of Thermistor) Occurred].
Turn power off and turn power on again.
Turn power off and turn power on again.
Turn power off and turn power on again.
Check the remaining battery power because this symptom maybe
depended on the remaining battery level, and confirm whether or
not the symptom is occurred after replacing the battery. If the symp-
tom is still occurred, overhaul inspection is needed. Check each
output of DC/DC converter (IC4301 on the VC-653 board) with
connected the DC JACK (J901) on the VC-653 board.
(The minimum connection to periphery)
IM Model:
Inspect the flash memory (IC8101 on the LD-279 board).
IM Model:
Inspect the flash memory (IC8101 on the LD-279 board).
Check the CPU (IC1301 on the VC-652 board).
GPS Model:
Check whether the FFC-254 flexible flat cable is broken,and check
whether it is inserted imperfectly.
If there is no problem the flexible board, inspect or replacement of
the GP-037 board.
HDD Model:
Inspect or replacement of the HDD.
IM Model:
Inspect or replacement of the LD-279 board.
Turn power off and turn power on again.
1-7.

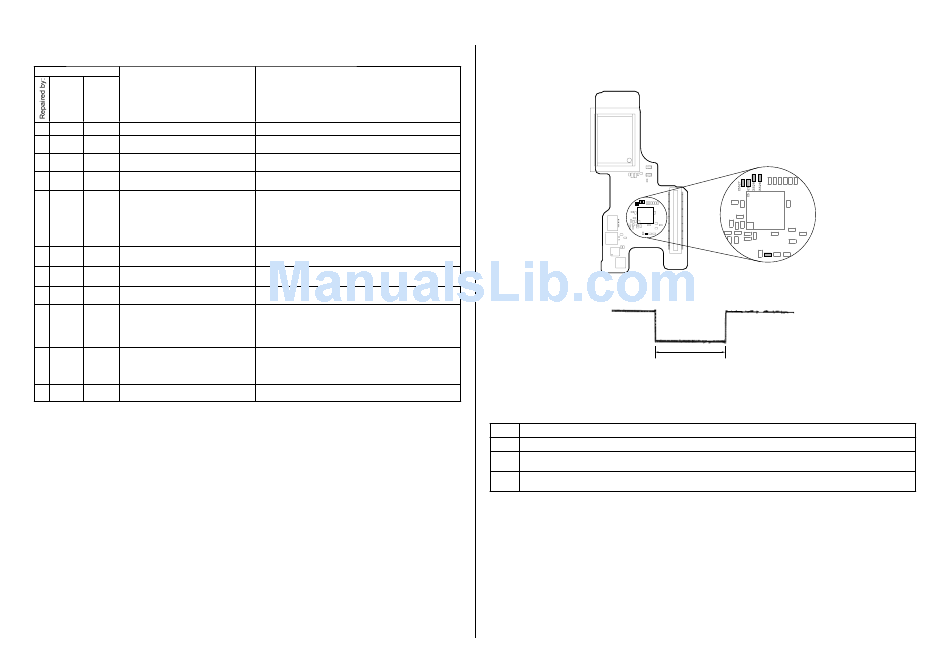

METHOD OF COPING WITH SHIFT LENS ERROR

LD-279 BOARD (SIDE A)
Measurement points on the VC-652 board
Note: The length of low section will vary a little depending on the conditions.
Change in output voltage of R5505 on the LD-279 board
1-7-1. E : 62 : 02 [Abnormality of IC for Steadyshot] Occurred
Order
1 Turn the power OFF.
While measuring with an oscilloscope the output voltage of R5505 in the periphery of IC5501 on the LD-279 board, turn the power ON
2
to check that the output voltage immediately after the power on change as shown in Fig. 2.
If the output voltage change as shown in Fig. 2, replace the lens block (Note). If it does not change as shown in Fig. 2, inspect the camera
3
control circuit (IC1301 of VC-653 board) periphery.
Note: When the lens block was replaced, start the Adjust Manual in the Adjust Station and execute the necessary adjustment items.
After the adjustment, make sure with the STEADYSHOT turned ON that the steadyshot functions appropriately in the handheld operation.
1-5
IC5501
R5505
Fig. 1
about 330 msec
Fig. 2
Procedure
