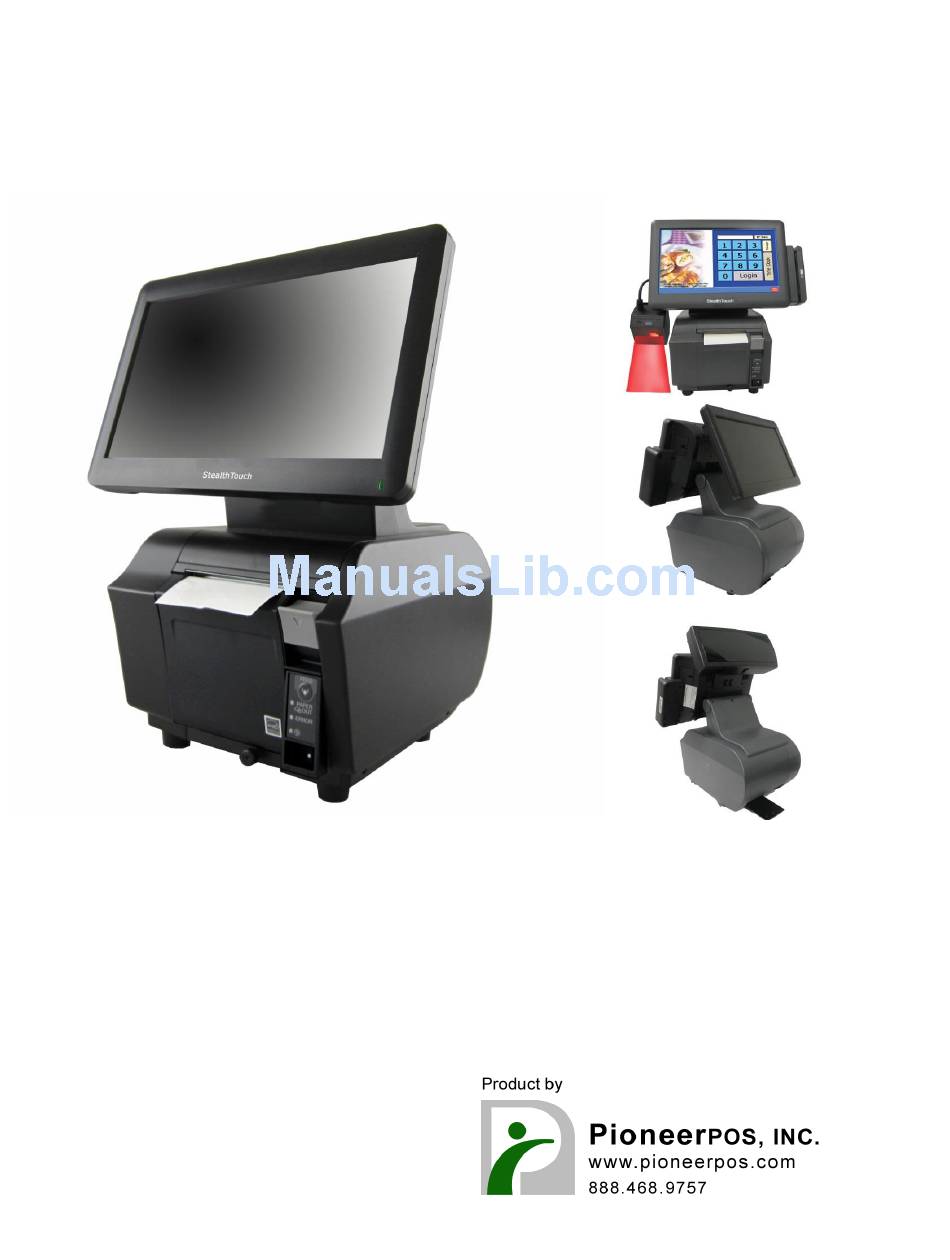

- Page 1 User Manual Stealth-M1 If you need further assistance, use one of the following: Web: http://www.pioneerposftp.com Pioneer POS Support line: Call: (909) 468-9757 Email: support@pionerpos.com Manual for Stealth M1 v1.0 Page 1...
- Page 2 Disclaimer Information in this document is subject to change without notice. PioneerPOS shall not be liable for technical or editorial errors in this document. This manual contains proprietary information which is protected by copyright. No parts of this document may be photocopied, reproduced, or translated to another language without prior written consent of Pioneer POS Solutions Inc.
-
Page 3: Table Of Contents
Introduction ................................... 4 About this guide ..................................4 System specification ................................5 Section A: Getting started with Stealth-M1 system ......................6 Chapter 1: Identifying controls, ports, and peripherals ...................... 6 Chapter 2: Setting up PioneerPOS system .......................... 9 Section B: Using Stealth-M1 system ..........................12 Chapter 3: Touch screen panel ............................ -
Page 4: Introduction
Introduction PioneerPOS Stealth M1 system is a touch screen system that is a perfect fit for space-constrained applications such as restaurant, hospitality, information service, medical, and the likes. PioneerPOS manufactures All-in-One touch screen systems with built-in PC, as well as touch monitor with different sizes. -
Page 5: System Specification
System specification 10.1” LCD, Active matrix TFT, 1366 x 768 (optimal resolution) Display Touch Screen Option Resistive Processor Onboard Intel® Atom™ D2550 DC 1.86 GHz Processor Memory DDR 3 1066/800 MHz SO-DIMM 2GB. (Up to 4GB) Storage Hard Drive / Solid-state Disk Operating System Windows 7, Pos Ready 7 Network/Ethernet... -
Page 6: Section A: Getting Started With Stealth-M1 System
Section A: Getting started with Stealth-M1 system Chapter 1: Identifying controls, ports, and peripherals Front View Thermal Printer (Optional) With FX Base With Standard (Slim) Base Left View Right View Card Reader Port (Optional) Manual for Stealth M1 v1.0 Page 6... - Page 7 I/O Panel View I/O Ports On / Off Switch I/O Ports Detail View E-SATA Power Power Power Output Input COM2 COM1 Output (24V) USB 2.0 (24V) Power Supply Unit (AC Adapter) Part Number Description Illustration STLH- Dimension: 171mm x 40mm x 72 mm PSFSP1501 Output DC Cable Length: 1.8m Power LED...
- Page 8 Power Supply Unit LED Light Common Add-on Peripherals: 1. MSR (Magnetic Card Reader) Descriptions: Magnetic card reader, 3 Tracks, USB. Black Part Number: 4FB-M1-U32 2. Finger Print Reader Descriptions: Biometric Reader, Black Part Number: 4FB-M1-F32 3. Customer Display (VFD 2x20) ...
-
Page 9: Chapter 2: Setting Up Pioneerpos System
Chapter 2: Setting up PioneerPOS system Connecting power If your system comes with a base, you just need to locate the power cord and plug it to a surge protector or uninterruptible power supply (UPS) Unit. [Caution] Do not plug in the unit directly into a wall outlet. Lightning or power surge may damage the system. Always connect the power through a surge protector or uninterruptible power supply (UPS) unit. - Page 10 Press Power Switch to turn on the system. Installing Thermal Printer The Stealth-M1 standard base is compatible with Epson TM-T70II thermal printer. Power cable and USB cable for printer are included and pre-installed with the shipment of Stealth-M1. See link below for step-by-step installation guide: https://www.youtube.com/watch?v=R1HAp8WQvmw...
- Page 11 VESA 75 mount (built in) Stealth-M1 also come with built-in VESA 75 mounting pattern located behind the metal back bezel (see arrows). Manual for Stealth M1 v1.0 Page 11...
-
Page 12: Section B: Using Stealth-M1 System
Chapter 3: Touch screen panel Stealth-M1 Touch Screen can be operated with finger or soft stylus. The touchscreen for each of the terminal shipped from factory is pre-calibrated. If you have re-installed the driver software, you may need to open TouchKit utility to re- calibrate the touch screen: Go to Start ->... -
Page 13: Chapter 4: Network
Wired network Standard Stealth-M1 comes with on-board Intel Network controller. For regular network usage, you just need to plug in the network cable and it should work. In case you need to check your network setting, you can follow the instruction below: Start ->... -
Page 14: Wireless Network
Wireless network 4.2.1 For system installed with Intel MiniPCI/MiniPCI-E wireless card Go to Start -> Program -> Intel PROset Wireless. Click on “Intel PROset Wireless” to setup wireless utility. You can also access “Intel PROSet Wireless Utility” by double clicking the “Intel PROSet Wireless Utility” task tray icon on the notification area on taskbar (see picture below). -
Page 15: Chapter 5: Serial Port (Rs232, Com Ports)
Chapter 5: Serial port (RS232, COM ports) Serial port location and pin assignment Stealth-M1 comes with two RS232 Serial port on I/O Panel. The serial ports are using 8-Pin RJ45 connector. Picture: Serial Port (RS232) Location COM2 COM1 Table: Pin Assignment for RS232 Serial Port... - Page 16 Pin 7 Pin 7 (Request to send) Pin 8 Pin 8 (Clear to send) Pin 9 [Note] Call PioneerPOS tech support at 909-468-9757 or email support@pioneerpos.com for detail info on how to make changes. Manual for Stealth M1 v1.0 Page 16...
-
Page 17: Section C: Using Stealth-M1 Accessories
Chapter 6: Using Customer Display/Rear Display (optional, part number “46B-RBRJ”) Unless specified, standard Rear Display/Customer Display shipped from PioneerPOS is set to AEDEX protocol by default. Protocol/emulation supported Pioneer POS rear display/customer display supports a few different protocols. The supported protocols are: ... - Page 18 On the next field, “Please Input Scroll Data (Max 40 Byte for ASCII)”, you may leave the field blank or you can type any sentence you would like for the scroll data. When you are ready, click “Write to EEPROM(Y)” A new pop up window will show up.
-
Page 19: Section D: Solving Problems
[Note] Only authorized technician trained by PioneerPOS should repair this system. Damage due to servicing not authorized by PioneerPOS is not covered by your warranty. Do not try to repair at the component level such as Printed Circuit Board (PCB), LCD Panel Unit, Inverter board, or Power Supply unit because it may cause safety hazard. -
Page 20: Chapter 8: Stealth-M1 System Problems
When handling CPU, memory, or hard drive, do not touch the connection surface. Hold the component by its edge and do not hold the contact part. Chapter 8: Stealth-M1 System Problems No power Problem description: System could not turn on (no POST screen, System Power Indicator LED is off, no sound from Fan or Hard Drive). - Page 21 If you could not see POST screen, try to connect an external monitor to the VGA connector on I/O Panel. If you could see display from external monitor, the problem could be caused by defective inverter board or LCD. Please contact PioneerPOS Technical Support. Software or POS application/program stops responding Problem description: Certain running program/POS application stops responding.
- Page 22 For example, if you are using Western Digital hard drive, you may use “Data Lifeguard Tools” available at Western Digital Support Website. Note: PioneerPOS uses Western Digital brand WD Blue series for HDD on Stealth series product. For problem on SSD, contact PioneerPOS Tech Support for troubleshooting process.
- Page 23 Be sure that Touch adapter is detected in touch utility. If touch adapter not detected, press Add on the Touchkit utility screen to add touch adapter. Re-install Touchkit utility driver. TouchKit utility driver can be downloaded from PioneerPOS.com. Touch panel: Cursor always stay on the edge of the screen Problem description: The touch active area on one side of the screen is pressed.
-
Page 24: Chapter 9: Stealth-M1 Accessories Problems
Built-in speaker is optional. Check the part number on the FCC label on your system to see if your system is configured with built-in speaker. Try to re-install sound driver. Chapter 9: Stealth-M1 Accessories Problems Magnetic Stripe Reader (MSR) issue Problem description: Magnetic Stripe Reader (MSR) cannot read cards. - Page 25 Make sure that the RJ45 COM port/serial port connector coming out of Rear Display unit is fully inserted to the correct COM Port. Make sure that the POS application/software setting is set to use the correct com port. Refer to Chapter 8: Using Customer Display/Rear Display (Optional, Part Number “46-RxRJ” only) if you need to change the type of emulation on the Customer Display/Rear Display unit.
-
Page 26: Section E: System Board Description
Section E: System Board description Chapter 10: System Board Layout Connector Placement- Top view SPK1:Right channel SPK2:Left channel Manual for Stealth M1 v1.0 Page 26... - Page 27 Connector Placement- Bottom view I/O Description Manual for Stealth M1 v1.0 Page 27...
-
Page 28: Chapter 11: System Board Jumper
This section is written for TECHNICALLY QUALIFIED PERSONNEL ONLY. Modifying jumper setting to other than manufacturer default setting may result in damages of device. PioneerPOS will not be responsible for loss and damages on StealthTouch terminal and any other devices due to user modification. Call 909-468-9757 or email support@pioneerpos.com...
