- Page 2 GUIDE TO INSTALLATION AND OPERATION CONTACT MIRANDA For technical assistance, please contact the Miranda Technical Support centre nearest you: Americas Asia Telephone: Telephone: +1-800-224-7882 +81-3-5730-2987 e-mail: e-mail: techsupp@miranda.com asiatech@miranda.com Europe, Middle East, Africa, UK France (only) Telephone: Telephone: +44 (0) 1491 820222...
-
Page 3: Table Of Contents
GUIDE TO INSTALLATION AND OPERATION CONTENTS page 1.0 DEC-291p 12-bit NTSC/PAL/SECAM to SDI …........…… decoder 1.1 Introduction ………………………..... 1.2 Features .........…….. 2.0 Physical Layout…………......2 3.0 Installation .......... 3.1 Power Supply .......... 3.2 Composite Input ……..………....3.3 SDI Output ……………….…….... - Page 4 GUIDE TO INSTALLATION AND OPERATION DEC-291p...
-
Page 5: Dec-291P 12-Bit Ntsc/Pal/Secam To Sdi Decoder

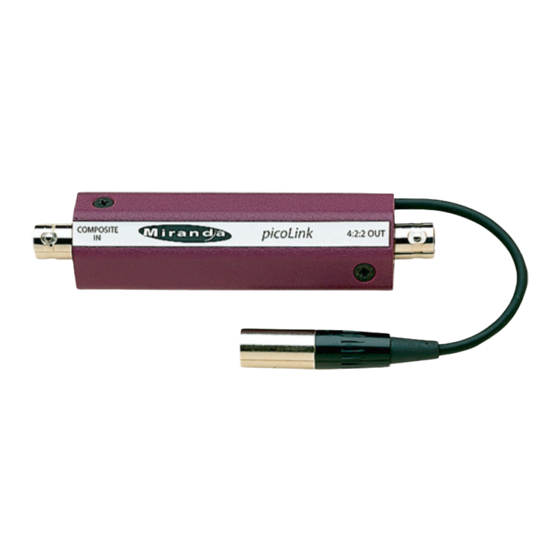

1.0 DEC-291p 12-bit NTSC/PAL/SECAM to SDI decoder 1.1 Introduction The Picolink DEC-291p Composite Decoder is the world’s smallest NTSC/PAL/PAL-N/PAL-M/SECAM decoder, facilitating the interface between analog composite video and the serial SDI video signal, particularly in monitoring applications. This module automatically detects 525 or 625 line formats from incoming composite video signals and provides the appropriate serial SDI output format. -
Page 6: Physical Layout
GUIDE TO INSTALLATION AND OPERATION 2.0 Physical Layout Figure 2 illustrates the DEC-291p’s major parts and their locations. The video source is connected to the composite input BNC and the decoded signal is provided by the SDI output. Error status is provided by the status LED and mode settings are configured by two 3-position slide switches. -
Page 7: Installation
GUIDE TO INSTALLATION AND OPERATION 3.0 Installation 3.1 Power Supply The LKS-WSU power supply is used to power the DEC-291p for both 110V and 220V operation. This power supply provides a regulated +5 VDC@1A power source over an input range of 90 –... -
Page 8: Operation
Miranda Technologies inc. DEC-291p Made in Canada Input setup (SW1) Input stability (SW2) Figure 4: DEC-291p slide switch and LED locations Input setup switch (SW1) 7.5 IRE: For composite sources with 7.5 IRE setup, set SW1 to this position. 7.5 IRE... -
Page 9: Status Led
Red: Indicates that the input is in error: • no input signal has been detected • an invalid input signal has been detected. Off: The DEC-291p is not connected to a power supply. DEC-291p | 5... -
Page 10: Specifications
Mini XLR-3 Mechanical Overall size: 102 mm x 25 mm x 18 mm (4” x 1” x 0.7”) Power cable length: 127 mm (5”) Full spec. temp. range: 0° C (32° F) to 30° C (86° F) 6 | DEC-291p...
