CLOSEMOUNT STYLE FAN MOUNTING

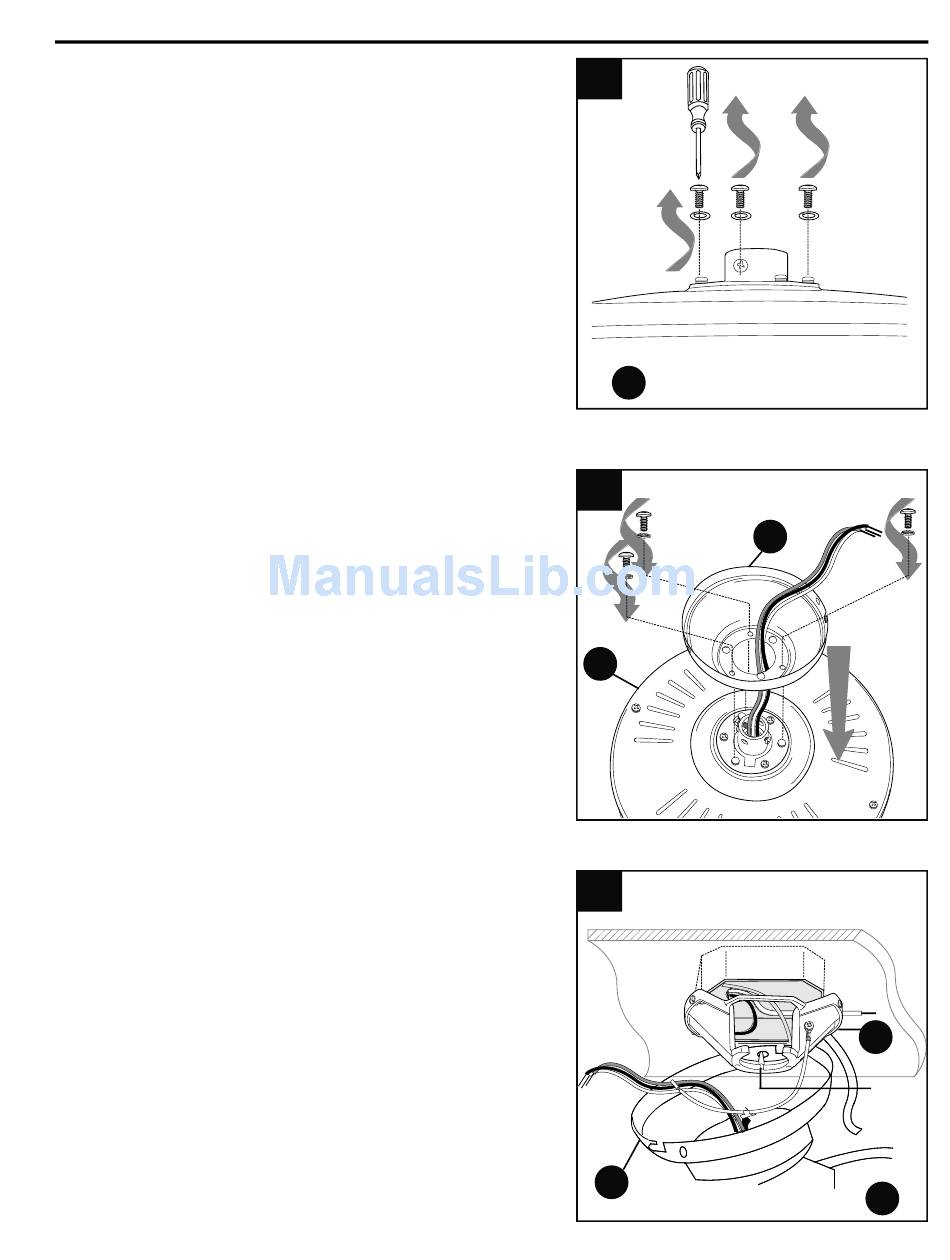

If neccessary, remove every other screw and lock
2.
washer from top of motor housing (D). (If there are
only three screws and lock washers in top of motor
housing (D), the other three screws and lock
washers will be located in one of the hardware
packs.) (Fig. 2)
Remove pin (Q), clip (R) and set screws from
motor housing yoke. (Fig. 2)
Pull wires through hole in the middle of the canopy
3.
(B) and attach canopy (B) to motor housing (D)
using the three screws and three lock washers
referred to in step 2 above. (Fig. 3)
4. Hang motor housing (D) on the tab on the
mounting bracket (C) using one of the
non-slotted holes in the canopy (B). (Fig. 4)
2
3
D
4
B
11
D
B
C
Tab
D
