HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at ascs@lowes.com.
SM21655

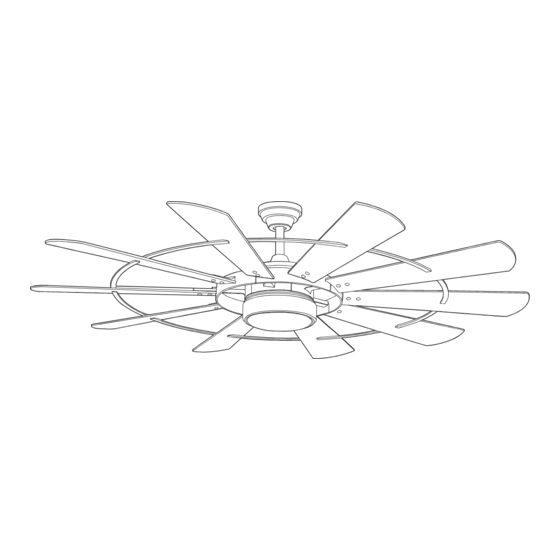

HENDERSON LED
1
ITEM #2599787
1058853
CEILING FAN
MODEL # EUK60MBK10LR
EUK60GV10LR
Español p. 20
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
4007498
APPROVED FOR USE
IN DAMP LOCATIONS
Advertisement
Table of Contents
Related Manuals for Harbor Breeze EUK60MBK10LR
Summary of Contents for Harbor Breeze EUK60MBK10LR
- Page 1 ITEM #2599787 1058853 HENDERSON LED CEILING FAN HARBOR BREEZE and logo design are MODEL # EUK60MBK10LR trademarks or registered trademarks of LF, LLC. EUK60GV10LR All rights reserved. Español p. 20 ATTACH YOUR RECEIPT HERE ADJUNTE SU RECIBO AQUÍ 4007498 APPROVED FOR USE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ......................... 2 Package Contents ......................... 5 Hardware Contents ........................... 6 Preparation ........................... 6 Initial Installation ........................6 Wiring ..........................10 Final Installation ........................12 Operating Instructions ......................16 Care and Maintenance ......................17 Troubleshooting ........................18 Limited Lifetime Warranty .................... - Page 3 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, install or operate the product. Review the accompanying assembly diagrams. • Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it must be shipped in its original packaging to ensure proper protection against damage that might exceed the initial cause for return.
- Page 4 SAFETY INFORMATION WARNING To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control device or control fan speed with a full range dimmer switch. To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or balancing them or when cleaning the fan.
-
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION PART DESCRIPTION QUANTITY QUANTITY Mounting Bracket Yoke Cover Canopy Mounting Screw Motor Assembly (preassembled) Blade Downrod Blade Bracket Pin (preassembled) Blade Bar Clip (preassembled) Shade Canopy Remote Pack Canopy Cover Safety Cable (preassembled) Remote Control Receiver IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation and safety. -
Page 6: Hardware Contents
HARDWARE CONTENTS (shown actual size) Blade Decorative Wire Screw/Washer Connector Qty. 20 Qty. 3 Qty. 40 + 1 extra + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to finish. - Page 7 INITIAL INSTALLATION 2. Determine mounting method to use. A. Standard mount B. Angle mount IMPORTANT: If using the angle mount, ensure the ceiling angle is not steeper than 19°. NOTE: Closemount option is not available for this fan. 19° max. *Helpful Hint: Downrod-style mounting is best suited for ceilings 8 ft.
- Page 8 INITIAL INSTALLATION Remove pin (D) and clip (E) from downrod (C). Partially loosen preassembled set screws and nuts in yoke at top of motor assembly (I). Set Screw Yoke 6. Insert downrod (C) through canopy (F), canopy cover (G) and yoke cover (H). NOTE: Canopy cover (G) must be turned with the shiny side toward the motor assembly (I).
- Page 9 INITIAL INSTALLATION Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead 8 in. wires, it is suggested you do so in the following manner: Hanging Take the lead wires and make sure you have...
-
Page 10: Wiring
INITIAL INSTALLATION Find a secure attachment point (wood ceiling joist Wood Screw, Wood recommended) and secure safety cable (O). Use a Washer and Joist Lock Washer heavy-duty wood screw, washer and lock washer (not included) to secure safety cable (O) loop. The Loop loop at the end of the safety cable (O) should just fit over the threads on the wood screw (not... - Page 11 WIRING Connect all GROUND (GREEN) wires from fan GROUND (GREEN OR BARE) WHITE SUPPLY WIRE (on downrod (A), if applicable, mounting GROUND bracket (C)) and remote control receiver (Q) to (GREEN OR BARE) BLACK SUPPLY WIRE BARE/GREEN supply wire from ceiling. BLUE WHITE Connect BLACK wire (labeled AC IN L) from...
-
Page 12: Final Installation
WIRING Gently slide remote control receiver (Q) flat-side up into mounting bracket (C). Turn spliced/taped wires upward and gently push wires and wire connectors (CC) into outlet box. Let antenna from remote control receiver (Q) hang to the side. Antenna NOTE: The remote control included with this fan meets the following requirements: a. - Page 13 FINAL INSTALLATION Align the two smallest of four holes of blade bracket V-shaped (K) with the two holes on one of the V-shaped blade blade arm arms on the edge of motor assembly (I). Attach blade (J) to blade arm with two blade screws/washers (AA) only.
- Page 14 FINAL INSTALLATION Connect each blade (J) using the blade bars (L). On the topside of the blade (J), slide the bent portion of the blade bar (L) directly under the opening at the end of the blade bracket (K), aligning the holes. Then, on the underside of the blade (J), insert the nodule portion of another blade nodule smooth...
- Page 15 FINAL INSTALLATION Align slots on shade (M) with protrusions on underside of motor assembly (I). Turn shade (M) clockwise until it no longer turns. NOTE: Pull down gently on the shade (M) to make sure it is secured completely. Slot Protrusion If you wish to use the remote control bracket from remote pack (N) on a wood surface, install...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control and LED Light Kit CAUTION: Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 17: Care And Maintenance
OPERATING INSTRUCTIONS 2. Replace battery cover on remote control transmitter. Restore electrical power. Within 30 seconds of powering fan, press and hold ON/OFF button ( ) on remote control transmitter for 5 seconds until fan beeps once in order to synchronize remote with fan motor. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete. -
Page 18: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not move. 1. Power is off or fuse is blown. 1. Turn power on or check fuse. 2. Faulty wire connection. 2. -
Page 19: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
