Harbor Breeze® is a registered trademark

ATTACH YOUR RECEIPT HERE

Serial Number

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at

5 p.m., EST, Friday.

EB15418

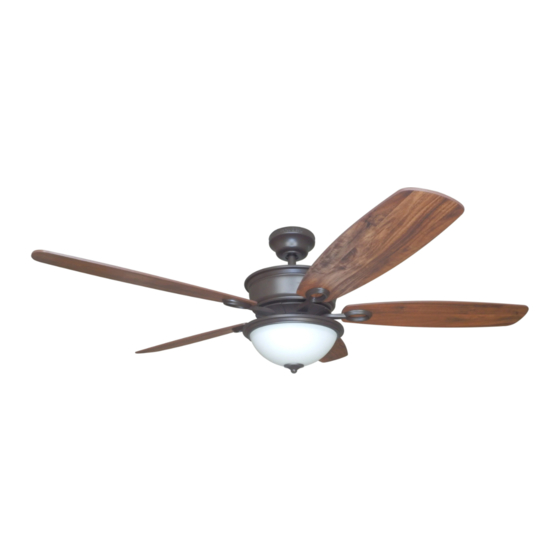

BAYOU CREEK CEILING FAN

Purchase Date

1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -

ITEM #0649729

MODEL #E-CAF56OSB5CRC

Español p. 23

Lowes.com/harborbreeze

4009654

Table of Contents

Need help?

Do you have a question about the E-CAF56OSB5CRC and is the answer not in the manual?

Questions and answers

Summary of Contents for Harbor Breeze E-CAF56OSB5CRC

Page 1 ITEM #0649729 BAYOU CREEK CEILING FAN MODEL #E-CAF56OSB5CRC Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Español p. 23 ATTACH YOUR RECEIPT HERE 4009654 Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ........................2 Package Contents ........................4 Hardware Contents ...........................5 Preparation ...........................5 Initial Installation ........................6 Wiring ...........................11 Final Installation ........................13 Installing Fan Without Light Kit ....................16 Operating Instructions ......................17 Care and Maintenance ......................19 Troubleshooting........................20 Warranty ..........................21 Replacement Parts List .......................22 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS •...
Page 3 SAFETY INFORMATION WARNING To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Downrod Switch Housing Cap Screw (preassembled) Canopy Finial (preassembled) Mounting Bracket Glass Shade (preassembled) Rubber Washer Motor Housing (preassembled) Yoke Cover Balancing Kit Light Kit Fitter Motor Screw Blade (preassembled) + 1 extra Bulb Washer (preassembled) Finial Plate (preassembled)
Page 5: Hardware Contents
HARDWARE CONTENTS (shown actual size) Blade Fiber Screw Blade Qty. 1 E3 Wire Washer Connector Qty. 15 + 1 extra Qty. 15 Qty. 4 + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to ﬁnish.
Page 6: Initial Installation
INITIAL INSTALLATION Turn off circuit breakers and wall switch to the fan supply line leads. DANGER: Failure to disconnect power supply prior to installation may result in serious injury or death. 2. Determine mounting method to use. A. Downrod mount (standard or angled ceiling) 19°...
Page 7 INITIAL INSTALLATION 4a. Loosen canopy mounting screws (Z) in slotted holes of canopy (B) and remove the other two canopy mounting screws (Z) and star washers (Y). Save for later use. Remove mounting bracket (C) from canopy (B). Secure mounting bracket (C) to outlet box (not STANDARD ANGLE included) using screws, spring washers and flat...
Page 8 DOWNROD-STYLE FAN MOUNTING Remove pin (W) and clip (X) from downrod (A). Partially loosen preassembled set screws and nuts in motor housing yoke at top of motor housing (D). Set Screw and Nut Yoke 2. Insert downrod (A) through canopy (B) and yoke cover (E).
Page 9 DOWNROD-STYLE FAN MOUNTING Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the 8 in.
Page 10 CLOSEMOUNT-STYLE FAN MOUNTING Remove preassembled canopy cover from bottom of canopy (B). NOTE: It may be necessary to use the handle end of a screwdriver (not included) to remove the canopy cover by tapping on the canopy cover from the inside of the canopy (B). NOTE: The downrod (A), yoke cover (E) and canopy cover are not used in this type of installation.
Page 11: Wiring
CLOSEMOUNT-STYLE FAN MOUNTING Temporarily hang fan on the tab on the mounting bracket (C) using one of the non-slotted holes in the canopy (B). Hole WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, each wire connector provided with this fan is designed to accept only one 12-gauge house wire and one lead wire from the fan.
Page 12 WIRING GROUND (GREEN OR BARE) 1. Make the necessary wiring connections for WHITE SUPPLY WIRE remote control operation as detailed below and GROUND (GREEN OR BARE) BLACK SUPPLY WIRE in the figure. For each wire connection, use one of the wire connectors (DD), making sure to BLUE WHITE screw wire connector (DD) on in a clockwise...
Page 13: Final Installation
WIRING Gently slide remote control receiver (V) flat-side up into mounting bracket (C). Turn spliced/taped wires upward and gently push wires and wire connectors (DD) into outlet box. Let antenna from remote control receiver (V) hang to the side. Antenna NOTE: The remote control included with this fan meets the following requirements: a.
Page 14 FINAL INSTALLATION Attach blade arms (J) to the bottom of motor housing (D) with motor screws (S) and washers (T) previously removed (Step 5, page 7). Tighten motor screws (S) securely. Note: Make sure to completely secure each blade arm (J) before proceeding to the next. If you do NOT wish to use the light kit, skip to INSTALLING FAN WITHOUT LIGHT KIT on page 16.
Page 15 FINAL INSTALLATION Remove finial (O), finial plate (I), hex nut (K) and rubber washer (Q) from the threaded rod at the bottom of the light kit fitter (F). Save for later use. Threaded Install bulbs (H). CAUTION: When replacing bulb(s), allow bulb(s) and glass shade to cool down before touching.
Page 16: Installing Fan Without Light Kit
FINAL INSTALLATION 9. If you wish to use the remote control bracket from remote pack (U), install screws from remote pack (U) through bracket and into the desired installation site. Wall The remote control transmitter from remote pack (U) Bracket rests inside the bracket.
Page 17: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 18 OPERATING INSTRUCTIONS 2. Restore electrical power. Within 30 seconds of restoring electrical power, press and hold the “0” button on the remote control transmitter for 5 seconds or until light on the fan blinks twice. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete.
Page 19: Care And Maintenance
OPERATING INSTRUCTIONS 4a. In warmer weather, setting the reverse switch in the DOWN position will result in downward airflow creating a wind chill effect. 4b. In cooler weather, setting the reverse switch in the UP position will result in upward airflow that can help move stagnant, hot air off the ceiling area.
Page 20: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not 1. Reverse switch not engaged. 1. Push switch firmly either up or move. down. 2. Power is off or fuse is blown. 2.
Page 21: Warranty
LIMITED LIFETIME WARRANTY The distributor warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
Page 22: Replacement Parts List
DESCRIPTION PART # Downrod 649729-A Canopy 649729-B Mounting Bracket 649729-C Light Kit Fitter 649729-F Blade 649729-G Blade Arm 649729-J Switch Housing Cap 649729-M Printed in China Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Lowes.com/harborbreeze JMLI1508...
