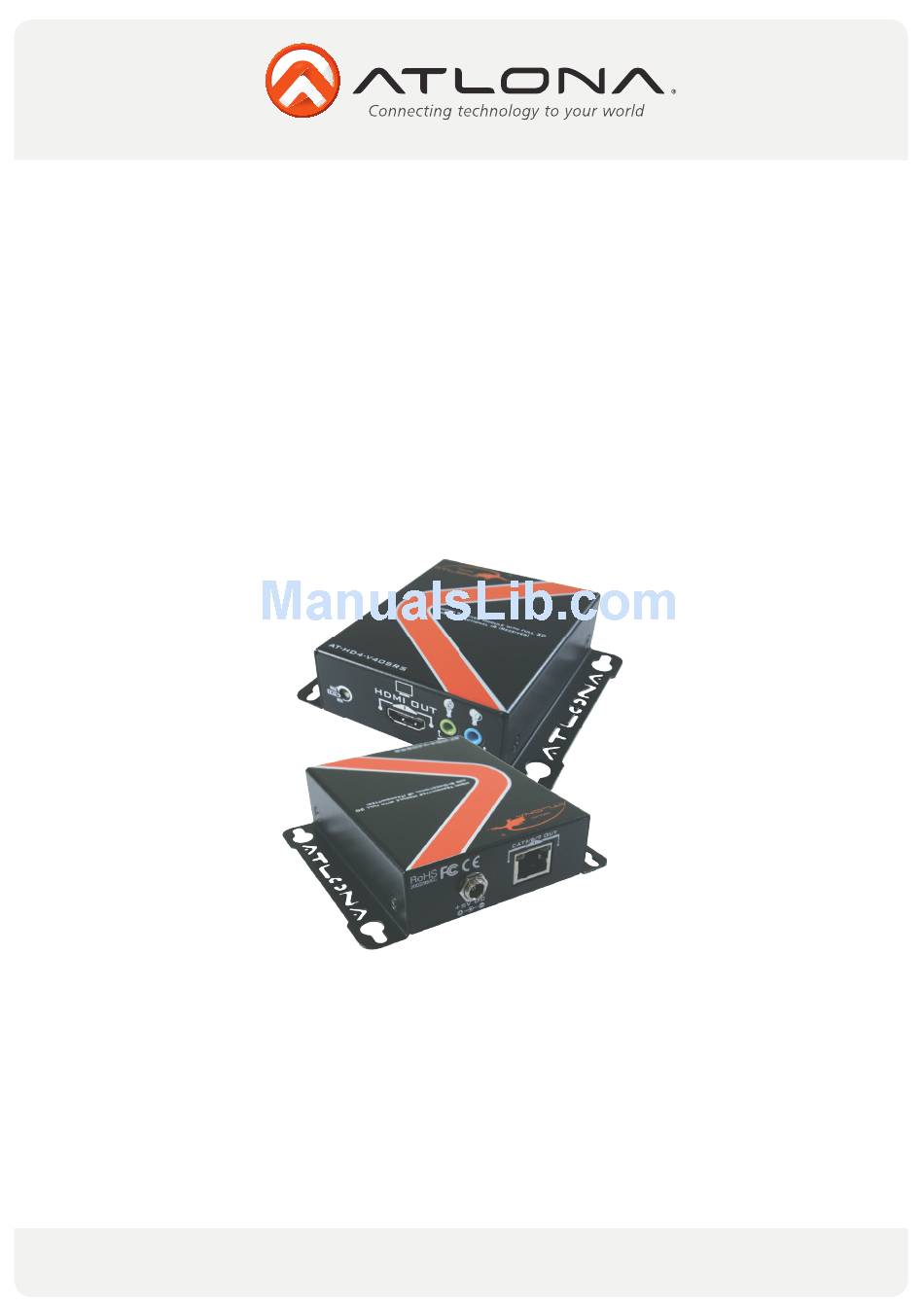

- Page 1 Atlona HDMI with Bi-Direction IR Extender over Single CAT5, 6, and 7 up to 130 Feet AT-HD4-V40SRS User Manual...
-
Page 2: Table Of Contents
6.4. Supported IR Data Format ..........7. Installation ..........8. EDID Learning ....................9.1. HDMI ..........9.2. CAT5 [RJ45] ..........10. Connection Diagram ..........11. Performance Guide ..........12. Notice ..........13. Safety Information ..........14. Warranty ..........15. Atlona Product Registration .......... -
Page 3: Introduction

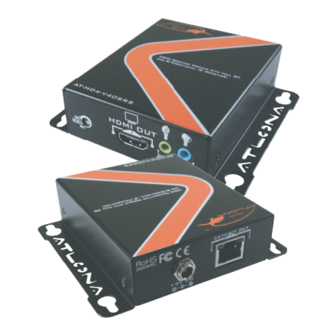

INTRODUCTION The Atlona AT-HD4-V40SRS is an HDMI with Bi-Directional IR Extension Kit. The extenders are designed to handle full 1080p up to 130ft and 1080i/720p up to 200ft. The HD4-V40SRS are capable of supporting very high bandwidth and there are able to handle all 7 x 3D formats. -
Page 4: Specifications
SPECIFICATIONS Technical Transmitter Receiver Role of usage Transmitter [TX] Receiver [RX] HDCP compliance Video bandwidth Single-link 6.75Gbps [225MHz] Video support 480i/p / 720p (50/60) / 1080i (50/60) / 1080p (30/50/60) HDMI over UTP Full HD (1080p)-130ft (40m) [CAT5e] / 165ft (50m) [CAT6] HD (720p/1080i)- transmission 165ft (50m) [CAT5e] / 200ft (60m) [CAT6] Audio support... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 5.1. Transmitting Module 5.1.1. Front Panel 1. MODE: 0 - EDID Full-HD (up to 1080p@60) -24bit 2D video & 7.1ch audio – long distance 1 - EDID Full-HD (up to 1080p@60) – 24-bit 2D video & 2ch audio – long distamce 2 - EDID Full-HD (1080p@60) - 36bit 2D video &... -
Page 6: Receiving Module
5.2. Receiving Module 5.2.1. Front Panel 1. EQ: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies from MAX (strongest) to MIN (weakest) for respective transmission length from longest possible range to short distance. Please adjust the signal level from MIN to MAX and stop turning the rotary switch when- ever the audio/video is playing normally. -
Page 7: Ir Pass-Through
IR PASS-THROUGH 6.1. IR Extenders. IR Blaster IR Receiver 6.2. IR Sockets. IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the cor- responding devices. -
Page 8: Supported Ir Data Format
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting module of AT-HD4- V40SRS. 2. Connect a HDMITM or DVI display (such as a LCD TV) to the receiving module of AT-HD4-V40SRS. 3. Connect IR Blaster/Receiver to both TX and RX modules. -
Page 9: Hdmi Tm
PIN DEFINITION 9.1. HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0- Pin 16 SDA Pin 3 TMDS Data2- Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+... -
Page 10: Connection Diagram
CONNECTION DIAGRAM DVD Player AT-HD4-V40SRS Transmitter CAT5/6 cable AT-HD4-V40SRS Receiver HDTV PERFORMANCE GUIDE Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid **** ***** Unshielded (UTP) **** Shielded (STP) Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time... -
Page 11: Notice
NOTICE 1. When adjusting the signal level on the receiver module, please dial the rotary control switch from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level 2. Wrongly insert IR blaster and IR receiver to wrong 3.5mm infrared sockets may result in the failure of the IR extenders. -
Page 12: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD4-V40SRS. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 14: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure.
