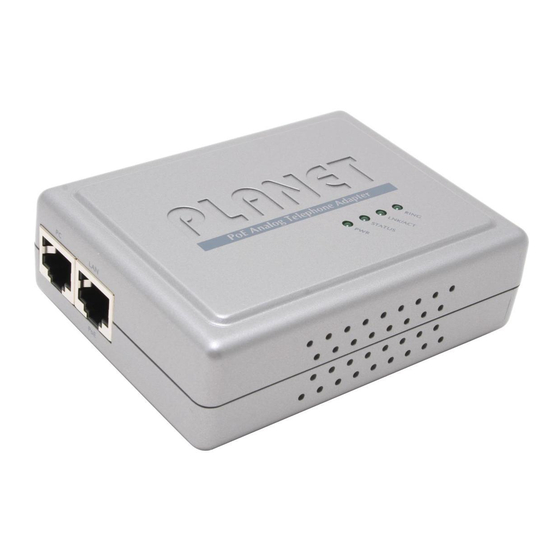

Planet VIP-156 User Manual

Voip analog telephone adapter
Hide thumbs Also See for VIP-156:
Table of Contents

Advertisement

Quick Links

Download this manual
SIP Analog Telephone Adapter
VoIP Analog Telephone
Adapter
VIP-156 / VIP156PE / VIP-157 / VIP-157S
1

Advertisement

Table of Contents
loading

Related Manuals for Planet VIP-156

Summary of Contents for Planet VIP-156

  • Page 1 SIP Analog Telephone Adapter VoIP Analog Telephone Adapter VIP-156 / VIP156PE / VIP-157 / VIP-157S...

  • Page 2: Ce Mark Warning

    PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice.

  • Page 3: Customer Service

    Any error messages that displayed when the problem occurred ♦ Any software running when the problem occurred ♦ Steps you took to resolve the problem on your own Revision User’s Manual for PLANET VoIP Analog Telephone Adapter Model: ATA model Rev: 1.1 (June, 2013)

  • Page 4: Table Of Contents

    SIP Analog Telephone Adapter TABLE OF CONTENTS Chapter 1 Introduction......................6 Overview............................... 6 Package Contents............................9 Physical Details ............................9 LED Display & Button ........................12 Chapter 2 Preparations & Installation................. 14 Physical Installation Requirements......................14 LAN IP address configuration via web configuration interface............15 Chapter 3 Network Service Configurations.................
  • Page 5 Appendix B The method of operation guide.................... 68 Call Transfer ............................68 3-Way Conference..........................68 Call Waiting ............................68 Switch the Realm (Registration Proxy Server) .................. 69 Auto Update firmware manually (Keypad)..................69 Appendix C VIP-156/VIP-156PE/VIP-157/VIP-157S Specifications ............ 70 Appendix D Planet DDNS Application ....................71...

  • Page 6: Chapter 1 Introduction

    SIP Analog Telephone Ada pter Chapter 1 Introduction Overview Based on years of VoIP manufacturing experiences, PLANET Technology VoIP total solutions are known for advanced implementation of standards based telephony with mass deployment capability. Cost-effective, High-performance Cost-effective, easy-to-install and simple-to-use, the converts standard 802.3af PoE integration(VIP-156PE)
  • Page 7 The ATA device and our IP PBX system integration are the ideal combination for your office daily communications The VIP-156 supports all kinds of SIP based phone features including Phone book, Call forward (busy, no answer, always), Dial plan setting, SNTP setting, DDNS, VLAN, VPN(PPTP&L2TP), IPV6, DMZ, Mac Clone,...
  • Page 8 SIP Analog Telephone Adapter IVR Function to Easily Identify and Manage the ATA Through the Interactive voice response (IVR) function, user can simply press some function key to search the device information or program the phone feature, e.g #120 to check the LAN IP address, #112 + xxx*xxx*xxx*xxx# to assign the LAN IP address…..

  • Page 9: Package Contents

    Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation, In band and out-of-band DTMF support Auto-provision(FTPP, HTTP, FTP) Other Features IPV6 VPN connection Planet DDNS VLAN Local Phone book (download/upload) IVR Function 802.3af PoE integration(VIP-156PE) FXO integration(VIP-157) Package Contents...
  • Page 10 VIP-156: SIP Analog Telephone Adapter VIP-156PE: 802.3af PoE SIP Analog Telephone Adapter VIP-157: 1 FXS/ 1 FXO SIP Analog Telephone Adapter VIP-157S: 2-port FXS SIP Analog Telephone Adapter Front Panel of VIP-156 Left / Right Panel of VIP-156 Front Panel of VIP-156PE...
  • Page 11 SIP Analog Telephone Adapter Left / Right Panel of VIP-156PE Front Panel of VIP-157 Left / Right Panel of VIP-157...

  • Page 12: Led Display & Button

    SIP Analog Telephone Adapter Front Panel of VIP-157S Left / Right Panel of VIP-157S LED Display & Button RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable.
  • Page 13 Machine default IP is http://192.168.0.1. Press RESET button on rear panel for over 5 seconds to reset the VoIP Phone Adapter to factory default value. (Except speed dial and call forward settings) LED display of VIP-156 / VIP-156PE LED Indicators Descriptions Power is supplied to the device.

  • Page 14: Chapter 2 Preparations & Installation

    TCP/IP protocol must be installed on all PCs. For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface PLANET ATA provides GUI (Web based, Graphical User Interface) for machine management and administration. Web configuration access...

  • Page 15: Lan Ip Address Configuration Via Web Configuration Interface

    SIP Analog Telephone Adapter Please locate your PC in the same network segment (192.168.0.x) of ATA. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations LAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 192.168.0.1) of VIP in the address bar.
  • Page 16 SIP Analog Telephone Adapter IVR Menu Choice Machine operation Parameter(s) Notes: ATA will change to DHCP #111# Set DHCP client None Client Use the * (star) key DHCP will be disabled and #112xxx*xxx*xxx* Setup Static IP Address when entering a decimal system will change to the xxx# point.
  • Page 17 SIP Analog Telephone Adapter of the ATA. IVR will announce the current gateway IP #124# Check Gateway IP Address address of the ATA. IVR will announce the current setting in the #125# Check Primary DNS Server Setting Primary DNS field. IVR will announce the current LAN port IP #126# Check LAN IP Address...
  • Page 18 SIP Analog Telephone Adapter Server, 2: user FTP Server #145# Forward function disable Disable forwrad funciton enable forward to FXS Eanble forward to FXS #146+Number# Port Port enable forward to FXO Eanble forward to FXO #147+Number# Port Port Enable PPTP function None Enable PPTP function #116#...
  • Page 19 SIP Analog Telephone Adapter...

  • Page 20: Chapter 3 Network Service Configurations

    SIP Analog Telephone Ada pter Chapter 3 Network Service Configurations Configuring and monitoring your ATA from web browser The ATA integrates a web-based graphical user interface that can cover most configurations and machine status monitoring. Via standard web browser, you can configure and check machine status from anywhere around the world.
  • Page 21 SIP Analog Telephone Adapter VoIP Phone Adapter main page...

  • Page 22: Chapter 4 Voip Telephone Adapter Configurations

    SIP Analog Telephone Adapter Chapter 4 VoIP Telephone Adapter Configurations Status Status shows all the system information like WAN/LAN IP address, System information, IPV6 connection information, Register status and VPN connection message. (After you set up the VPN line, the status will start to show.)

  • Page 23: Phone Book

    SIP Analog Telephone Ada pter Phone Book ATA can set up 140 records of Phone Book. User can dial the Name records to make calls via Phone Book feature. Field Description The default is Page 1. It can select Page1 ~ Page 7 to Phone Book Page look through Phone Book records.
  • Page 24 SIP Analog Telephone Adapter The record number is from 1 ~ 140; it can set up 140 Phone records in total. The name of Phone Book records; it only can input Name numerals character. Fill in the outgoing number (Line Number) or IP address.

  • Page 25: Call Service

    You can input the name and the phone number in the URL field. Also you have to set the Time Out time for system to start to forward the call to the number you choose. When you finish the setting, please click the Submit button. Call Forward function for VIP-156/VIP-156PT/VIP-157S...
  • Page 26 SIP Analog Telephone Adapter All to PSTN/ No Answer to PSTN (VIP-157): the VIP-157 not only supports Call Forward to IP calls, but also can forward the calls to PSTN. You can choose the Call Forward type with PSTN, then input the name and the PSTN number in the URL/Number field.

  • Page 27: Sntp Setting

    SIP Analog Telephone Adapter is larger than the “To” time, the Block time will from Day 1 to Day 2. When you finish the setting, please click the Submit button. [Alarm Type] This page defines the Alarm setting on this page. It provides the alarm function, and it can set up the Alarm Time to get the telephone ringed up every day.

  • Page 28: Dial Plan Setting

    SIP Analog Telephone Adapter Volume Settings for VIP-156T/VIP-156PT Besides the above settings, VIP-157 also can set the volume of PSTN. PSTN-Out Volume is to set the PSTN volume you can hear. PSTN-In Gain is to set the volume sent out to the other side’s handset. Volume Settings for VIP-157 Dial Plan Setting This page defines the Dial Plan Setting function.
  • Page 29 SIP Analog Telephone Adapter Dial Plan Settings for VIP-156 For VIP-157, have four more items. Field Description Drop Prefix The rule of add or replace code. If setup as Disable, it will add the prefix number prior to the identification number. If setup as Enable, it will replace the identification number.
  • Page 30 SIP Analog Telephone Adapter x: It is equal to 0~9. For example, [5xx] even if the number begins with 5. Dial Now rule If the dialing number matches this field, it will dial out and need not have to press the “#” key to end the dialing. It accepts the numeral or symbol, and the max length are 124.
  • Page 31 SIP Analog Telephone Adapter Example_2: Drop prefix: Enable, Prefix: 006, Rule: 002+003+004+005+007+009 1. If the dialing number is “002+86xxxx”, it will match the rule [002], then system will automatically replace the prefix [002] to the prefix number [006].The real dialing number is [006+8613xxxxx].

  • Page 32: General

    3. If the dialing number is “00782280220”, it will match the routing rule [D007], then system will decrease the [007] then dial out from the [FXO].The real dialing number is [82280220]. General This page defines the volume, auto answer, Caller ID, and call waiting caller ID(CID type II), VIP-156...
  • Page 33 SIP Analog Telephone Adapter VIP-157 Field Description Call Waiting Default is enable. When you are talking with other people, You can choose If you want to hear the notice when there is a new incoming call. If the call waiting function is On, if there is a new incoming call, you will hear the call waiting notice in your current call.
  • Page 34 SIP Analog Telephone Adapter Auto Answer and PIN (VIP-157) Field Description Auto Answer Type Auto Answer: There are different incoming call types for flexible applications. The Trunk Gateway function needs to arrange with the registered Server System. The 3-Party subscribers could make Off-Net call (PSTN) through the FXO port of VIP-157.

  • Page 35: Chapter 5 Network

    SIP Analog Telephone Adapt Chapter 5 Network Network Setting This page defines the LAN setting on this page. Field Description WAN Active The default is Fixed IP, and it also provides DHCP Client and PPPoE connection modes. Fixed IP: It could set up the IP address manually. DHCP Client: It will acquire the IP address automatically.

  • Page 36: Ddns Setting

    DDNS account. But now most of the VoIP applications work with an SIP Proxy Server. When you finish the setting, please click the Submit button. (For better service, Planet provides Planet DDNS, you can apply your DDNS account on web site www.planetddns.com)

  • Page 37: Vpn Setting

    SIP Analog Telephone Adapter Field Description If set up as On, it could receive VLAN messages. VLAN Activity VID (802.1Q/TAG) Dispose VLAN ID is add a Tag header after enabling the VLAN function. The realized voice packets transfer is similar with that of VLAN.

  • Page 38: Ipv6 Setting

    SIP Analog Telephone Adapter Caution: VIP-156/VIP-157 VPN can’t use the encryption or compression for VPN connection. IPV6 Setting This page defines the IPV6 setting on this page. You can program the IPV6 information. Field Description IPV6 Activity Support three IPV6 types: Auto, Fixed IPV6, IPV6 in IPV4 Tunnel Setting the WAN IPV6 address or display it.(64 bits)

  • Page 39: Chapter 6 Nat Trans

    SIP Analog Telephone Ada pter Chapter 6 NAT Trans Stun Setting This page defines the STUN Enable/Disable and STUN Server IP address in this page. This function can help your Phone Adapter work properly behind NAT. To change these settings, please follow your ISP information.

  • Page 40: Dmz And Mac Clone

    SIP Analog Telephone Adapter address. PC IP address The IP address of PC port. (In the Birdge mode, the Default IP: 192.168.0.1 PC MAC Address The MAC of PC port Enable DHCP Server It will allot the IP address automatically when enable this function. IP Address The range for DHCP IP address.
  • Page 41 SIP Analog Telephone Adapter Field Description The serial number. There are totally 12 records from Num 1 to 12. Index Activity The activity status. The default is Disable, this record will activate if enable. The TCP or UDP communication protocol. Protocol Internal Port For corresponding the internal port.

  • Page 42: Chapter 7 Sip Setting

    SIP Analog Telephone A dapter Chapter 7 SIP Setting Service Domain Setting In Service Domain Function, you need to input the account and the related information on this page. Please refer to your ISP provider. You can register five SIP accounts in the ATA. You can dial the VoIP phone to your friends via first enable SIP account and receive the phone from these five SIP accounts.

  • Page 43: Codec Setting

    SIP Analog Telephone Adapter system, it will frequently send the MWI message. The starting number can’t be the “0”. For example, if the number is “0xxxx”, because the starting number is “0”, so that the system will ignore this dial plan. You can see the Register Status on the Status page.

  • Page 44: Sip Advance Setting

    SIP Analog Telephone Adapter SIP Advance Setting This page defines the Hold by RFC, Voice/SIP QoS and other settings on this page. To change these settings, please follow your ISP information. When you finish the setting, please click the Submit button.
  • Page 45 SIP Analog Telephone Adapter Field Description SIP Expire Time To set up the registration interval time. SIP Expire Time Default is General; Register interval time setting. Provide items like General (standard), 1/2, 2/3, 3/4, 4/5, 5/6, 6/7, 7/8, 8/9, 9/10。 Type Register server need supports this function Register time calculated...
  • Page 46 SIP Analog Telephone Adapter 5/6: expiry time * 5/6. 6/7: expiry time * 6/7. 7/8: expiry time * 7/8. 8/9: expiry time * 8/9. 9/10: expiry time * 9/10. SIP Register Retry If SIP register fails, system will retry interval after this time. Timer SIP session timer T1 Setting the maximum retransmit interval for non-INVITE requests and...
  • Page 47 SIP Analog Telephone Adapter Register server need supports this function The Voice QoS feature. Voice QoS (Diff-Serv) SIP QoS (Diff-Serv) The SIP QoS feature. The QoS setting is to set the voice packets’ priority. If you set the value higher than 0, then the voice packets will get the higher priority to the Internet.
  • Page 48 SIP Analog Telephone Adapter Send SIP PRACK to When sending the SIP package, in package Header will add the ”PRACK” message。 Proxy: Register server need supports this function Only Accept Trusted Only accept call from proxy, if system receives the IP dialing, system will refuse the call.

  • Page 49: Chapter 8 Advance Setting

    SIP Analog Telephone Ada pter Chapter 8 Advance Setting Status Log Display and save systems running status message data. Press “Get Status Log” to back up the status log file. Auto Config This page defines the Auto Configuration (Auto Provision) setting. ATA supports TFTP, FTP, HTTP and IP PBX auto configuration function in total.

  • Page 50: Management-Advanced Setting

    SIP Analog Telephone Adapter Management-Advanced Setting This page defines the advanced functions. When you finish the setting, please click the Submit button.
  • Page 51 SIP Analog Telephone Adapter Field Description ICMP Not Echo This function can disable echo when someone pings this device. It can avoid hacker trying to attack the device Anonymous Call If enable this function, machine will to start the calling hidden function, and it will not send the related Caller information.

  • Page 52: Tones

    SIP Analog Telephone Adapter DHCP Gateway ARP The period to check the DHCP gateway ARP. Check Period Syslog Server IP There are seven Syslog types: Call Statistics, General Debug, Call Statistics + General Debug, SIP Debug, Call Statistics + SIP Debug, Address General Debug + SIP Debug and All.

  • Page 53: Tr-069

    SIP Analog Telephone Adapter TR-069 On this page you can program the TR-069 setting. Different TR-069 server may need to modify some different parameters. What’s TR-069: Technical Report 069 (TR-069) is a customer-premises equipment WAN management protocol (CWMP) technical specification for remote management of end-user devices introduced by the broadband forum (formerly the DSL forum).TR-069 is an integrated framework equipped with safe auto-configuration.
  • Page 54 SIP Analog Telephone Adapter...

  • Page 55: Chapter 9 Other Setting

    SIP Analog Telephone Ada pter Chapter 9 Other Setting System Authority In System Authority it can change admin/System/User login password. Firmware Upgrade This page defines the SIP and RTP port number on this page. Each ISP provider will have different SIP/RTPport settings, please refer to the ISP to set up the port number correctly.

  • Page 56: Auto Update Setting

    SIP Analog Telephone Adapter For technological consideration, we strongly suggest you refer to the following upgrade methods for updating your device. After firmware is loaded, the unit will reboot, and Default IP address of the customized firmware: http://192.168.0.1; login name/password: root/null (no password) Auto Update Setting The device can update new firmware with the gz or ds file format automatically by the Auto Upgrade...
  • Page 57 SIP Analog Telephone Adapter time. - Scheduling: The machine will follow the scheduled date and time to check the new firmware. The machine will check the new firmware between the time range Scheduling (Date) by random. Automatic Update There are Notify only and Automatic ways to update. - Notify only: If there are new firmware, the ATA will send the “Be Be Be”...

  • Page 58: Reset To Default

    SIP Analog Telephone Adapter Reset to default In Default Setting you can restore the Phone Adapter to factory default on this page. You can just click the Restore button, then the Phone Adapter will restore to default and automatically restart again. Save and Reboot In Save &...

  • Page 59: Appendix A Voice Communication Samples

    SIP Analog Telephone Adapter Appendix A Voice Communication Samples There are several ways to make calls to desired destination in ATA. In this section, we’ll lead you step by step to establish your first voice communication via keypad and web browsers operations. Case 1: ATA to ATA connection via IP address Assume there are two ATAs in the network;...

  • Page 60: Case 2: (Peer-To-Peer Mode) Vip-157S Port 1 To Port 2 Communications

    [remote ATA IP address]**5062, for example: 192*168*0*2**5062 Case 3: Call Forward Feature_Example 1 In the following samples, we’ll introduce the Call Forward Feature applications. For this example, there are three VIP-156 register to IPX-1980 and VIP-156_A has set Call Forward function to VIP-156_B.

  • Page 61: Case 4: Call Forward Feature_Example 2

    4. The number 2002(VIP-156_B) will ring up; then it picks up the telephone and communication with the number 3003(VIP-156_C) Case 4: Call Forward Feature_Example 2 For this example, there are one VIP-157 and two VIP-156 register to IPX-1980. The VIP-157_A has set Call Forward function to phone number 1111-2222 (PSTN).

  • Page 62: Case 5: Call Forward Feature_Example 3

    4. The PSTN Phone Number 11112222 will ring up; then it picks up the telephone and communication with the number 3003(VIP-156_C) Case 5: Call Forward Feature_Example 3 For this example, there are one VIP-157 and two VIP-156 register to IPX-1980. The VIP-157_A has set Call Forward function to number 2002 (VIP-156_B).

  • Page 63: Case 6: Call Forward Feature_Example 4

    4. The number 2002(VIP-156_B) will ring up; then it picks up the telephone and communication with the PSTN Phone Number 11112222 Case 6: Call Forward Feature_Example 4 For this example, there are three VIP-156 and connect with Peer to Peer mode. VIP-156_A has set Call Forward function to VIP-156_B.

  • Page 64: Case 7: Auto Answer Feature_Ip To Pstn

    Case 7: Auto Answer Feature_IP to PSTN For this example, there are one VIP-157 and two VIP-156 and connect with Peer to Peer mode. The VIP-157_A has set Auto Answer function for forwarding calls to arbitrary telephone. If there are incoming IP calls and VIP-157_A doesn’t answer the incoming calls after specific time, the caller will...
  • Page 65 SIP Analog Telephone Adapter Machine configuration on the VIP-157: STEP 1: Please log in VIP-157_A via web browser and browse the Phone Settings menu and select the Call service config menu. On the setting page, please disable All Forward function, and then the sample configuration screen is shown below: STEP 2: Please log in VIP-157_A via web browser and browse the Phone Settings / General setting...

  • Page 66: Case 8: Auto Answer Feature_Pstn To Ip

    Case 8: Auto Answer Feature_PSTN to IP For this example, there are one VIP-157 and two VIP-156 and connect with Peer to Peer mode. The VIP-157_A has set Auto Answer function for forwarding to arbitrary telephone. If there are incoming PSTN calls and VIP-157_A doesn’t answer the incoming calls after specific time, the caller will hear...
  • Page 67 SIP Analog Telephone Adapter Test the scenario: 1. The Phone Number 11112222 picks up the telephone 2. Dial the PSTN Phone Number 33334444(VIP-157_A) 3. VIP-157_A will ring up but doesn’t answer the call 4. After 3 rings, the Phone Number 11112222 will hear the prompt sounds and then input the password 123# 5.

  • Page 68: Appendix B The Method Of Operation Guide

    SIP Analog Telephone Adapter Appendix B The method of operation guide In this section, we’ll introduce the steps of how to set up some call features of the ATA. Please follow the steps below to utilize those features. Call Transfer A.

  • Page 69: Switch The Realm (Registration Proxy Server)

    SIP Analog Telephone Adapter Switch the Realm (Registration Proxy Server) ATA can register to three different SIP Proxies at the same time. It can receive any one of different SIP accounts incoming call, and it can switch to anyone’s SIP accounts for making calls through inputting the switch code.

  • Page 70: Appendix C Vip-156/Vip-156Pe/Vip-157/Vip-157S Specifications

    SIP Analog Telephone Adapter Appendix C VIP-156/VIP-156PE/VIP-157/VIP-157S Specifications Product SIP Analog Telephone Adapter Model VIP-156 VIP-156PE VIP-157 VIP-157S Hardware 1 x 10/100Mbps RJ-45 port (802.3af PoE for VIP-156PE) 1 x 10/100Mbps RJ-45 port FXS (for telephone set 1 x RJ-11...

  • Page 71: Appendix D Planet Ddns Application

    SIP Analog Telephone Adapter Appendix D Planet DDNS Application Configuring PLANET DDNS steps: Step 1 Enable DDNS option through accessing web page of ATA device. Step 2 Select DDNS server provided, and register an account if you have not used yet.

  • Page 72: Ec Declaration Of Conformity

    EC Declaration of Conformity For the following equipment: *Type of Product : SIP Telephone Adapter *Model Number : VIP-156 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road Hsin Tien, Taipei, Taiwan, R. O.C.
  • Page 73 *Model Number : VIP-156PE * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road Hsin Tien, Taipei, Taiwan, R. O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to 1999/5/EC R&TTE.
  • Page 74 *Model Number : VIP-157 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road Hsin Tien, Taipei, Taiwan, R. O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (89/336/EEC,92/31/EEC,93/68/EEC).
  • Page 75 *Model Number : VIP-157S * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road Hsin Tien, Taipei, Taiwan, R. O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (89/336/EEC,92/31/EEC,93/68/EEC).
