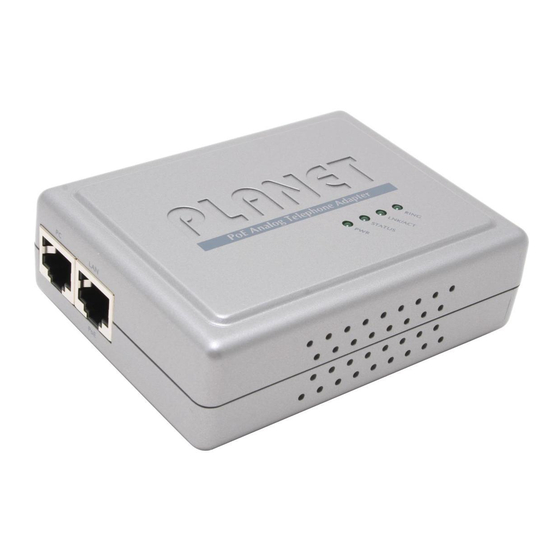

Planet VIP-156 Quick Start Manual
Sip analog telephone adapter
Hide thumbs
Also See for VIP-156:
- User manual (75 pages) ,
- Quick start manual (68 pages) ,
- User manual (68 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Planet VIP-156
Summary of Contents for Planet VIP-156
- Page 1 VIP-156/VIP-157 SIP Analog Telephone Adapter Quick Start Guide...
- Page 2 Overview This quick installation guide describes the objectives; organization and basic installation of the PLANET VIP-156/VIP-157 VoIP Phone Adapter (“ATA” in the following term), and explains how to establish your first voice over IP communication via PLANET product. Also, this guide shows you how to find additional information on related products and services.
-
Page 3: Table Of Contents
PLANET VIP-156/VIP-157 Quick Installation Guide PREPARATION BEFORE BEGINNING ADMINISTRATION ON SIP ANALOG TELEPHONE ADAPTER................4 PREPARATION BEFORE BEGINNING ADMINISTRATION ON SIP ANALOG TELEPHONE ADAPTER................5 ............5 HYSICAL NTERFACES ..........5 DMINISTRATION NTERFACE Web configuration access:..........6 Network Interface quick configurations ......7 Keypad configurations........... -
Page 4: Preparation Before Beginning Administration On Sip Analog Telephone Adapter
PLANET VIP-156/VIP-157 Quick Installation Guide Document Objectives This guide provides physical installation, network configurations, and Internet access establishment information for the ATA VoIP Analog Phone Adapter. Document Organization This guide is organized as follows: • Preparation before beginning VIP-156/VIP-157 administration •... -
Page 5: Preparation Before Beginning
PLANET VIP-156/VIP-157 Quick Installation Guide Preparation before beginning administration on SIP Analog Telephone Adapter Physical Interfaces RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable. -
Page 6: Web Configuration Access
Default IP address of ATA is 192.168.0.1. Please execute web browser, and insert http://192.168.0.1 in the address bar of your web browser to logon ATA web configuration page. VIP-156/VIP-157 will prompt for logon username/password, please enter: root / null (no password) to continue machine administration. -
Page 7: Network Interface Quick Configurations
PLANET VIP-156/VIP-157 Quick Installation Guide In order to connect machine for administration, please locate your PC in the Note same network segment (192.168.0.x) of the ATA. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations. - Page 8 PLANET VIP-156/VIP-157 Quick Installation Guide Parameter Description IP address LAN IP address of Default: 192.168.0.1 the ATA Mask LAN mask of the Default: 255.255.255.0 Default Gateway of the ATA Default: 192.168.0.254 Gateway The Domain Name Default: 168.95.192.1 Server IP address Connection Type Data required.
-
Page 9: Keypad Configurations
PLANET VIP-156/VIP-157 Quick Installation Guide Keypad configurations The ATA series phone adapters support telephone keypad configurations, please connect analog telephone set and refer to the following table for machine network configurations. Menu Choice Machine Parameter(s) Notes: operation ATA will change to... - Page 10 PLANET VIP-156/VIP-157 Quick Installation Guide Enable For PLANET #136# None auto-config mode IPX-2000 IP PBX Disable For PLANET #137# None auto-config mode IPX-2000 IP PBX Must unlock the protect function #190# Unlock None before set up network settings via keypad.
- Page 11 PLANET VIP-156/VIP-157 Quick Installation Guide Following keypad commands can be used to display the network settings enabled on ATA via voice prompt. IVR Menu Machine Notes: Choice operation IVR will announce the current IP #120# Check IP Address address of the ATA.
-
Page 12: Voice Communication Samples
PLANET VIP-156/VIP-157 Quick Installation Guide Voice communication samples There are several ways to make calls to desired destination in ATA. In this section, we’ll lead you step by step to establish your first voice communication via keypad and web browsers operations. -
Page 13: (Peer-To-Peer Mode) Vip-157S Port 1 To Port 2
PLANET VIP-156/VIP-157 Quick Installation Guide 3. Then the phone in 192.168.0.2 should ring. Please repeat the same dialing steps on ATA B to establish the first voice communication from ATA A (Peer-to-Peer mode) VIP-157S Port 1 to Port 2 communications Supposing you have one VIP-157S connects to two telephones, just pick up phone 1 and dial ‘192*168*0*1**5062’, phone 2 will... - Page 14 PLANET VIP-156/VIP-157 Quick Installation Guide c) Then the telephone set in VIP-157S port 2 should ring. Please repeat the same dialing steps on port 2 to establish the first voice communication from VIP-157S In default machine operation, the VIP-157 is VoIP mode. If you want to make a PSTN phone call, press the “0*”...
-
Page 15: Voice Communication Via Sip Proxy Server - Sip-50
Domain Service config menu. In the setting page, please insert the account/password information obtained from your service provider (in this sample, we’re using PLANET SIP-50 as the SIP Proxy server for SIP account, call authentications), and then the sample configuration... - Page 16 PLANET VIP-156/VIP-157 Quick Installation Guide STEP 3: Repeat the same configuration steps on ATA B, and check the machine registration status, make sure the registrations are completed. Test the scenario: To verify the VoIP communication, please 1. Pick up the telephone on ATA A 2.
-
Page 17: Voice Communication Via Ip Pbx System - Ipx-2000 (Auto-Config)
PLANET VIP-156/VIP-157 Quick Installation Guide Voice communication via IP PBX system – IPX-2000 (Auto-config) In the following sample, we’ll introduce how to integrate the ATA with our IP PBX system IPX-2000 via Auto-config feature. Registration / Registration / Authentication Authentication IPX-2000 LAN IP Address: 192.168.0.50... - Page 18 PLANET VIP-156/VIP-157 Quick Installation Guide Code: please insert 151 as the DHCP server option. Value: http://LAN IP for IPX-2000/tftpboot/ An example option 151 would be option=151 value= http://192.168.0.50/tftpboot/http://192.168.0.50/tftpboot/ STEP 2: Please browse to the Device IP Phone menu and create new device. And press the EDIT button for set up the Auto Config configuration.
- Page 19 PLANET VIP-156/VIP-157 Quick Installation Guide Note: The following are the Vendor Prefix of devices: 1. VIP-156: pla156 2. VIP-157/VIP-157S: pla157 STEP 4: Please browse to the Device Extension of IP Phone menu to create the two extension accounts/password: 1001/123 (for ATA A), and 1002/123(for ATA B) for the...
- Page 20 PLANET VIP-156/VIP-157 Quick Installation Guide STEP 5: After setting up the parameters, please browse to the Service IP PBX service menu and press RELOAD of IP PBX configuration reload selection for activating the settings.
- Page 21 PLANET VIP-156/VIP-157 Quick Installation Guide Device configurations on the ATA: STEP 6: Please log in ATA via web browser, browse to the SIP setting menu and select the Domain Service config menu. In the setting page, please browse to the Auto-config page, and enable the Auto Configuration features for IP PBX system.
-
Page 22: Quick Reference In Cd-Rom Guide
PLANET VIP-156/VIP-157 Quick Installation Guide STEP 8: Repeat the same configuration steps on ATA B, and check if the ATA B is successfully registered with the IPX-2000 as one of the IP extensions. Test the scenario: 1. Pick up the telephone on ATA A 2.
