Page 2: Physical Introduction

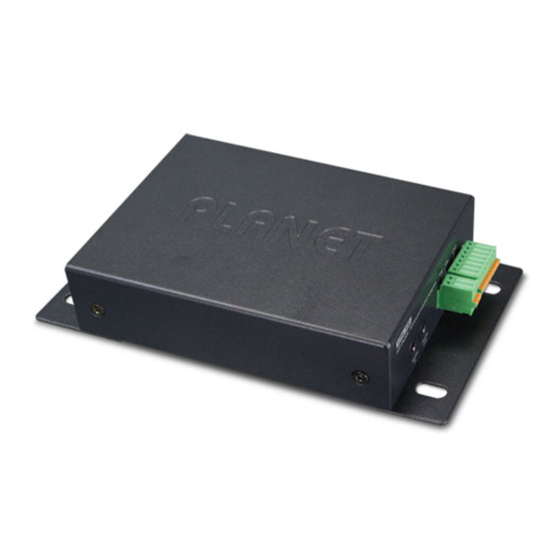

1. Physical Introduction The VPA-100 provides LAN2 for network expansion. Power Adapter Internet IP Camera (Optional) SPK+ SPK- 3.3V Headset Loud Speaker – 1 –... - Page 3 Power supply for devices, max. 200mA 12 GND Ground Output port, output current 8mA. When any IP phone is dialed to VPA-100, press 13 1, 2, 3, 4 1* to enable/disable port1 output. For other ports, press 2* for port2, 3* for port3 and 4* for port4.
-
Page 4: Hardware Installation
2. Hardware Installation Step 1. Connecting Power via PoE Interface and Network The VPA-100 can be configured without external power if connected to an IEEE 802.3af PSE device such as 802.3af PoE injector/hub or 802.3af PoE switch. PoE Switch 1. Use of any non-standard PoE injector could damage the device. - Page 5 Step 2. Computer Network Setup Set your computer’s IP address to 172.16.0.x, where x is a number between 2 to 254 (except 1 which is being used for the camera by default). If you don’t know how to do this, please ask your network administrator.
- Page 6 Step 3. Login Prompt Use web browser (Internet Explorer 8.0 or above) to connect to 172.16.0.1 (type this address in the address bar of web browser). You’ll be prompted to input user name and password: admin and 123, respectively. – 5 –...
-
Page 7: Further Information
For further configuration, please refer to the user’s manual, which can be downloaded from the website. http://www.planet.com.tw/en/support/download.php?type1= 372&model=48840&type=3 If you have any other question, please contact the dealer where you purchased this product or you can contact PLANET directly at the following email address: support_ voip@planet.com.tw – 6–...
