- Page 1 VoIP Analog Telephone Adapter VIP-156 VIP-156PE User’s manual...
- Page 2 Copyright Copyright (C) 2005 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
- Page 3 Revision User’s Manual for PLANET VoIP Analog Telephone Adapter: Model: ATA Rev: 1.0 (2005, August) Part No. EM-VIP156V1...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Chapter 1 Introduction ................6 Overview..........................6 Package Content .......................7 Physical Details .........................8 LED Display & Button....................9 Chapter 2 Preparations & Installation ..........10 Physical Installation Requirement ................10 LAN IP address configuration via web configuration interface....... 11 Chapter 3 Network Service Configurations........14 Configuring and monitoring your Phone Adapter from web browser ......14 Overview on the web interface of ATA ..............14 Manipulation of ATA via web browser..............14... - Page 5 Appendix A Voice communication samples..............28 Voice communication via IP PBX system – IPX-2000 (Auto-config) .....28 VIP-156 to VIP-156 connection via IP address............31 Voice communication via SIP proxy server –SIP50..........31 Appendix B VIP-156 / VIP-156PE Specifications............33...
-
Page 6: Chapter 1 Introduction
Internet or corporation network. With the VIP-156, home users and companies are able to save the installation cost and extend their past investments in telephones, conference and speakerphones. The VIP-156 can be the bridge between traditional analog systems and IP network with an extremely affordable investment. -
Page 7: Package Content
• Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation • In band and out-of-band DTMF support Package Content The contents of your product should contain the following items: VoIP Telephone Adapter Power adapter Quick Installation Guide User’s Manual CD RJ-11 cable x 1... -
Page 8: Physical Details

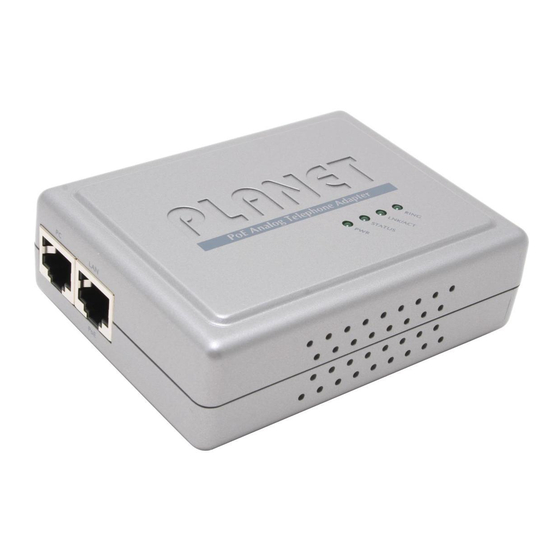

Physical Details The following figure illustrates the front/rear panel of VIP-156. Front Panel of VIP-156 Left / Right Panel of VIP-156 Front Panel of VIP-156PE... -
Page 9: Led Display & Button
Left / Right Panel of VIP-156PE LED Display & Button RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable. The LAN interface also can be connected with 802.3af PoE switch or converter for power supply (VIP-156PE) 12V DC... -
Page 10: Chapter 2 Preparations & Installation
Chapter 2 Preparations & Installation Physical Installation Requirement This chapter illustrates basic installation of ATA analog Phone Adapter ((“ATA” in the following term)) • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. • TCP/IP protocol must be installed on all PCs. For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface PLANET ATA provides GUI (Web based, Graphical User Interface) for machine management and... -
Page 11: Lan Ip Address Configuration Via Web Configuration Interface
Please locate your PC in the same network segment Note (192.168.0.x) of VIP-156. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations. LAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 192.168.0.1) of VIP in the adddress bar. - Page 12 Set Primary DNS Server when entering a decimal Must set Static IP first. xxx# point. Following keypad commands can be used to display the network settings enabled on VIP-156 via voice prompt. IVR Menu Choice Machine operation Notes: IVR will announce the current IP address of...
- Page 13 After confirming the modification you’ve done, Please click on the Submit button to apply settings and browse to “Save & R boot” menu to reboot the machine to make the settings effective. Connection Type Data required. In most circumstances, it is no need to configure the DHCP Fixed IP settings.
-
Page 14: Chapter 3 Network Service Configurations
Log on ATA via web browser After TCP/IP configurations on your PC, you may now open your web browser, and input http://192.168.0.1 to logon Phone Adapter web configuration page. Phone Adapter will prompt for logon username/password: root / null (not password) VIP-156 log in page... - Page 15 When users login the web page, users can see the Phone Adapter system information like firmware version, company…etc in this main page. VoIP Phone Adatper main page...
-
Page 16: Chapter 4 Voip Telephone Adapter Configurations
Chapter 4 VoIP Telephone Adapter Configurations Speed Dial settings In Speed Dial setting function you can add/delete Speed Dial number. You can input maximum 10 entries speed dial list. If you need to add a phone number into the Speed Dial list, you need to input the position, the name, and the phone number (by URL type). -
Page 17: Call Forward
Call forward This page defines the tones generated to the phone connected to the phone port. All lines use same tone parameters. After modify the tone parameters, you must save modify then Reboot to let the modified parameters work. Call Forward function: you can setup the phone number you want to forward in this page. There are three type of Forward mode. -
Page 18: Volume Setting
Volume Setting This page defines the Handset Volume, Ringer Volume, and the Handset Gain. When you finished the setting, please click the Submit button. Handset Volume is to set the volume for you can hear from the handset. Ringer Volume is to set the ringer volume for you can hear. Handset Gain is to set the volume send out to the other side’s handset. -
Page 19: Caller Id Settings
Caller ID settings This page defines the device to show Caller ID in your PSTN Phone or IP Phone. There are four selection of Caller ID. You need to base on your environment to set the Caller ID function for FSK or DTMF. -
Page 20: Flash Time Setting
Flash Time Setting When you use the PSTN Phone and you need to press the Hook to do the Flash (Switch to the other phone line or HOLD), this function is for you to set the time you press the Hook to represent the Flash function. -
Page 21: Service Domain Settings
Service Domain Settings This router comes with the built-in firewall based on the advanced technology of Stateful Packet In Service Domain Function you need to input the account and the related informations in this page, please refer to your ISP provider. You can register three SIP account in the Phon. You can dial the VoIP phone to your friends via first enable SIP account and receive the phone from these three SIP accounts. -
Page 22: Port Settings
Port Settings This page defines the SIP and RTP port number in this page. Each ISP provider will have different SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the setting, please click the Submit button. Codec Settings This page defines the Codec priority, RTP packet length, and VAD function in this page. -
Page 23: Rtp Setting
RTP Setting This page defines the Out-Band DTMF and Send DTMF SIP Info Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. -
Page 24: Rport Settings
RPort Settings This page defines the RPort Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. Other Settings This page defines the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information. -
Page 25: Auto Configuration
Auto Configuration In Auto Configuration Setting you need to check with your service provider if they have provided this function. Usually this function will be boundle with an IP PBX to use in the office. Country Settings In Country Settings is for you to set the Country, different country will have different settings in FXS inter face. -
Page 26: System Authority
System Authority In System Authority you can change your login password. Save & Reboot In Save & Reboot you can save the changes you have done. If you want to use new setting in the Phone Adapter, You have to click the Save button. After you click the Save button, the Phone Adapter will automatically restart and the new setting will effect. -
Page 27: Reset To Default
Reset to Default In Default Setting you can restore the Phone Adapter to factory default in this page. You can just click the Restore button, then the Phone Adapter will restore to default and automatically restart again. Reboot without saving Reboot function you can restart the Phone Adapter. -
Page 28: Appendix A Voice Communication Samples
Appendix A Voice communications There are several ways to make calls to desired destination in VIP-156. In this section, we’ll lead you step by step to establish your first voice communication via keypad and web browsers operations. Voice communication via IP PBX system – IPX-2000 (Auto-config) In the following sample, we’ll introduce how to integrate the ATA with our IP PBX system IPX-2000 via... - Page 29 STEP 3: Please press the Show extensions button to create the two extension accounts/password: 1001/123 (for VIP-156 A), and 1002/123(for VIP-156 B) for the voice calls. STEP 4: After setting up the parameters, please refer to the path to activate the settings :Service --->...
- Page 30 IPX-2000 as one of the IP extensions. Test the scenario: To verify the VoIP communication, you may make calls from extension side (VIP-156 A) 1001 to the number 1002 (VIP-156 B) or reversely make calls from extension client (VIP-156 B) 1002 to the number...
-
Page 31: Vip-156 To Vip-156 Connection Via Ip Address
192.168.0.2 Operation steps: Pick up the telephone set on VIP-156 A, you should be able to hear the dialtone, press the keypad: 192*168*0*2# shall be able to connect to the VIP-156 B. Then the phone in 192.168.0.2 should ring. Please repeat the same dialing steps on VIP-156 B to... - Page 32 Test the scenario: To verify the VoIP communication, you may make calls from SIP client (VIP-156) 1001 to the number 1002 (VIP-156) or reversely make calls from SIP client (VIP-156) 1002 to the number 1001 (VIP-156 A)
-
Page 33: Appendix B Vip-156 / Vip-156Pe Specifications
Appendix B VIP-156 / VIP-156PE Specifications Product SIP Telephone Adapter Model VIP-156 VIP-156PE Hardware 1 x 10/100Mbps RJ-45 port (802.3af PoE for VIP-156PE) 1 x 10/100Mbps RJ-45 port PHONE 1 x RJ-11 connection Protocols and Standard Standard SIP 2.0 (RFC3261) Voice codec G.723.1 (6.3k/5.3k), G.729A, G.729B, G.711...
