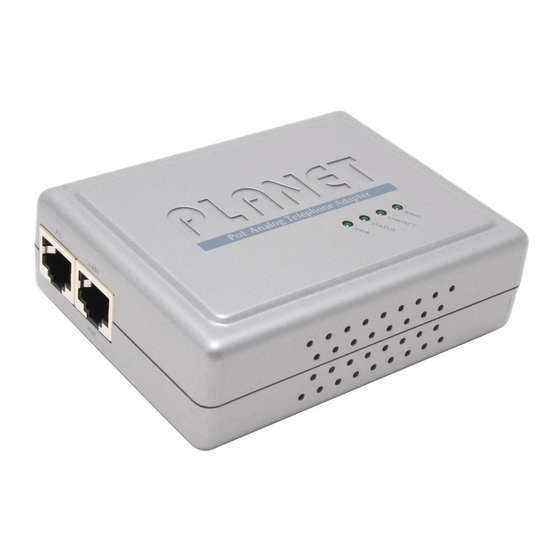

Planet VIP-157 User Manual

Voip analog telephone adapter
Hide thumbs Also See for VIP-157:
Table of Contents

Advertisement

Quick Links

Download this manual
VoIP Analog Telephone Adapter
VIP-156
VIP-157
User's manual
1

Advertisement

Table of Contents
loading

Related Manuals for Planet VIP-157

Summary of Contents for Planet VIP-157

  • Page 1 VoIP Analog Telephone Adapter VIP-156 VIP-157 User’s manual...

  • Page 2: Ce Mark Warning

    Copyright Copyright (C) 2006 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
  • Page 3 Revision User’s Manual for PLANET VoIP Analog Telephone Adapter: Model: ATA Rev: 1.0 (2006, January) Part No. EM-VIP_ATAV1...

  • Page 4: Table Of Contents

    Chapter 4 VoIP Telephone Adapter Configurations...20 Speed Dial settings ... 20 Call forward... 21 SNTP settings ... 21 [VIP-156] Volume Setting ... 22 [VIP-157] Volume Setting ... 22 Block Setting ... 23 [VIP-157 only] Auto Answer... 23 Caller ID settings... 24 Dial Interval Settings... 24 Flash Time Setting...
  • Page 5 ATA to ATA connection via IP address ... 34 (Peer-to-Peer mode) VIP-157S Port 1 to Port 2 communications ... 35 Voice communication via SIP proxy server – SIP-50... 36 Voice communication via IP PBX system – IPX-2000 (Auto-config) ... 38 Appendix B VIP-156 / VIP-157 Specifications... 41...

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Overview Based on years of VoIP manufacturing experiences, PLANET Technology VoIP total solutions are known for advanced implementation of standards based telephony with mass deployment capability. Cost-effective, easy-to-install and simple-to-use, the PLANET VIP-156/VIP-157 VoIP Phone Adapter (“ATA” in the following term) converts standard telephones to IP-based networks. The service providers and enterprises offer users traditional and enhanced the telephony communication services via the existing broadband connection to the Internet or corporation network.

  • Page 7: Package Content

    • Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation (CNG) • In band, out-of-band, and SIP-info DTMF support Package Content The contents of your product should contain the following items: VoIP Telephone Adapter Power adapter Quick Installation Guide User’s Manual CD...

  • Page 8: Physical Details

    Respective model/descriptions are shown below: VIP-156: SIP Analog Telephone Adapter VIP-156PE: 802.3af PoE SIP Analog Telephone Adapter VIP-157: 1 FXS/ 1 FXO SIP Analog Telephone Adapter VIP-157S: 2-port FXS SIP Analog Telephone Adapter Front Panel of VIP-156 Left / Right Panel of VIP-156...
  • Page 9 Front Panel of VIP-156PE Left / Right Panel of VIP-156PE Front Panel of VIP-157...
  • Page 10 Left / Right Panel of VIP-157 Front Panel of VIP-157S Left / Right Panel of VIP-157S...

  • Page 11: Led Display & Button

    LED Display & Button 12V DC Reset Machine default IP is http://192.168.0.1. Press RESET Note button on rear panel over 5 seconds will reset the VoIP Phone Adapter to factory default value. (Except speed dial and call forward settings) LED display of VIP-156 / VIP-156PE LED Indicators Power is supplied to the device.
  • Page 12 LED display of VIP-157 / VIP-157S LED Indicators STATUS The Status LED will be flashing when the machine is operational LNK/ACT OFF: the device is connected to LAN at 10Mb/s. ON: the device is connected to LAN at 100Mb/s. RING 1 OFF: the phone is idle.

  • Page 13: Chapter 2 Preparations & Installation

    Chapter 2 Preparations & Installation Physical Installation Requirement This chapter illustrates basic installation of ATA analog Phone Adapter ((“ATA” in the following term)) • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. • TCP/IP protocol must be installed on all PCs. For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface PLANET ATA provides GUI (Web based, Graphical User Interface) for machine management and...

  • Page 14: Lan Ip Address Configuration Via Web Configuration Interface

    Please locate your PC in the same network segment Note (192.168.0.x) of ATA. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations. LAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 192.168.0.1) of VIP in the adddress bar.
  • Page 15 The system will be reset to None factory default value and reboot automatically. None VIP-157 only Notes: IVR will announce the current IP address of the ATA. IVR will announce if DHCP in enabled or disabled. IVR will announce current enabled VoIP number.
  • Page 16 #123# Check Network Mask #124# Check Gateway IP Address #125# Check Primary DNS Server Setting #128# Check Firmware Version Please contact your Internet service provider to obtain the Internet access type, and select the proper network settings Hint fter confirming the modification you’ve done, Please click on the Submit button to apply settings and rowse to “Save &...

  • Page 18: Chapter 3 Network Service Configurations

    Chapter 3 Network Service Configurations Configuring and monitoring your Phone Adapter from web browser The ATA integrates a web-based graphical user interface that can cover most configurations and machine status monitoring. Via standard web browser, you can configure and check machine status from anywhere around the world.
  • Page 19 When users login the web page, users can see the Phone Adapter system information like firmware version, company…etc in this main page. VoIP Phone Adatper main page...

  • Page 20: Chapter 4 Voip Telephone Adapter Configurations

    Chapter 4 VoIP Telephone Adapter Configurations Speed Dial settings In Speed Dial setting function you can add/delete Speed Dial number. You can input maximum 10 entries speed dial list. If you need to add a phone number into the Speed Dial list, you need to input the position, the name, and the phone number (by URL type).

  • Page 21: Call Forward

    Call forward Call Forward function: you can setup the phone number you want to forward in this page. There are three type of Forward mode. You can choose All Forward, Busy Forward, and No Answer Forward by click the icon. All Forward: All incoming call will forward to the number you choosed.

  • Page 22: [Vip-156] Volume Setting

    PSTN-Out Volume is to set the PSTN volume for you can hear. [VIP-157 only] Handset Gain is to set the volume send out to the other side’s handset. PSTN-In Gain is to set the volume send out to the other side’s handset. [VIP-157 only]...

  • Page 23: Block Setting

    This page set the Auto Answer function to answer the incoming call by the phone. If the call is come from the IP, then the VIP-157 can let user to redial the call to PSTN phone number. If the call is coming...

  • Page 24: Caller Id Settings

    after the ring count meet the number you set then the auto answer will enable. Caller ID settings This page defines the device to show Caller ID in your PSTN Phone or IP Phone. There are four selection of Caller ID. You need to base on your environment to set the Caller ID function for FSK or DTMF.

  • Page 25: Flash Time Setting

    Flash Time Setting When you use the PSTN Phone and you need to press the Hook to do the Flash (Switch to the other phone line or HOLD), this function is for you to set the time you press the Hook to represent the Flash function.

  • Page 26: Port Settings

    Port Settings This page defines the SIP and RTP port number in this page. Each ISP provider will have different SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the setting, please click the Submit button.

  • Page 27: Service Domain Settings

    Service Domain Settings In Service Domain Function you need to input the account and the related informations in this page, please refer to your ISP provider. You can register three SIP account in the ATA. You can dial the VoIP phone to your friends via first enable SIP account and receive the phone from these three SIP accounts.

  • Page 28: Codec Settings

    Codec Settings This page defines the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button.

  • Page 29: Rtp Setting

    RTP Setting This page defines the Out-Band DTMF and Send DTMF SIP Info Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. DTMF Setting This page defines the RFC2833 Out-Band DTMF, Inband DTMF and Send DTMF SIP Info in this page. To change this setting, please following your ISP information.

  • Page 30: Rport Settings

    RPort Settings This page defines the RPort Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. Other Settings This page defines the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information.

  • Page 31: Auto Configuration

    your ISP information. When you finished the setting, please click the Submit button. Auto Configuration In Auto Configuration Setting you need to check with your service provider if they have provided this function. Usually this function will be boundle with an IP PBX to use in the office. Country Settings In Country Settings is for you to set the Country, different country will have different settings in FXS inter face.

  • Page 32: System Authority

    System Authority In System Authority you can change your login password. Save & Reboot In Save & Reboot you can save the changes you have done. If you want to use new setting in the Phone Adapter, You have to click the Save button. After you click the Save button, the Phone Adapter will automatically restart and the new setting will effect.

  • Page 33: Reset To Default

    Click the “Browse” button in the right side of the File Location or you can type the correct path and the filename in File Location blank. Select the correct file you want to download to the Phone Adapter then click the Update button. Reset to Default In Default Setting you can restore the Phone Adapter to factory default in this page.

  • Page 34: Appendix A Voice Communication Samples

    Operation steps: 1. Pick up the telephone set on ATA A. 2. [VIP-157 only, for VIP-156, please skip this step] Press the “ you should be able to hear the dial-tone Press the keypad: 192*168*0*2# shall be able to connect to the ATA B.

  • Page 35: (Peer-To-Peer Mode) Vip-157S Port 1 To Port 2 Communications

    Then the telephone set in VIP-157S port 2 should ring. Please repeat the same dialing steps on port 2 to establish the first voice communication from VIP-157S In default machine operation, the VIP-157 is at PSTN mode. If you want to make an IP call, press the “...

  • Page 36: Voice Communication Via Sip Proxy Server - Sip-50

    Voice communication via SIP proxy server – SIP-50 Registration / Authentication SIP-50 IP Address: 192.168.0.50 ATA A IP Address: 192.168.0.1 Line Number: 1001 Device configurations on the ATA: STEP 1: Log in SIP-50 and create two testing accounts/password: 1001 / 123 (for ATA A), and 1002 / 123 (for ATA B) for the voice calls.
  • Page 37 To verify the VoIP communication, please Pick up the telephone [VIP-157 only] Press the “*” key to switch to IP phone mode Dial the destination number to make call between SIP clients. For example, ATA A (with number 1001) with keypad number 1002 to ATA B, or reversely make calls from SIP client...

  • Page 38: Voice Communication Via Ip Pbx System - Ipx-2000 (Auto-Config)

    Voice communication via IP PBX system – IPX-2000 (Auto-config) In the following sample, we’ll introduce how to integrate the ATA with our IP PBX system IPX-2000 via Auto-config feature. Registration / Authentication ATA A IP Address: 192.168.0.1 Line Number: 1001 Device configurations on the IPX-2000: STEP 1: Log in IPX-2000 and browse to the DHCP menu and create new options list for the auto...
  • Page 39 STEP 3: Please press the Show extensions button to create the two extension accounts/password: 1001/123 (for ATA A), and 1002/123(for ATA B) for the voice calls. STEP 4: After setting up the parameters, please refer to the path to activate the settings: Service IP PBX service --->...
  • Page 40 To verify the VoIP communication, please: 1. Pick up the telephone 2. [VIP-157 only] Press the “*” key to switch to IP phone mode 3. Dial the destination number to make calls. For example, ATA A (with number 1001) dial the keypad...

  • Page 41: Appendix B Vip-156 / Vip-157 Specifications

    Appendix B VIP-156 / VIP-157 Specifications Product SIP Telephone Adapter Model VIP-156 Hardware 1 x 10/100Mbps RJ-45 port (802.3af PoE for VIP-156PE) 1 x 10/100Mbps RJ-45 port FXS (for telephone set connection) FXO (PSTN connection) Protocols and Standard Standard SIP 2.0 (RFC3261) Voice codec G.723.1 (6.3k/5.3k), G.729A, G.729B, G.711...
