Planet ATA-150 User Manual

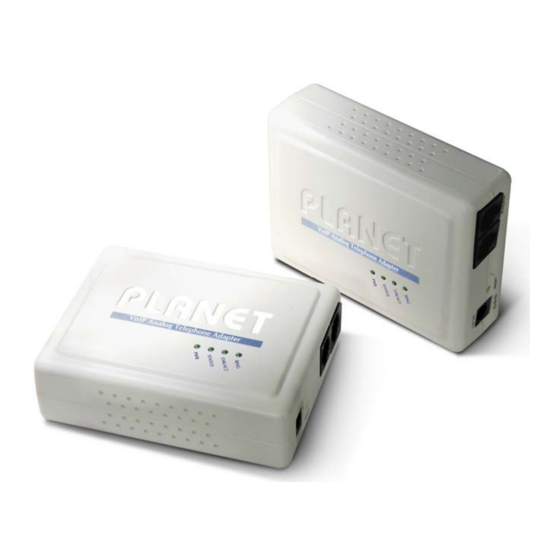

Voip analog telephone adapter
Hide thumbs Also See for ATA-150:
Table of Contents

Advertisement

Quick Links

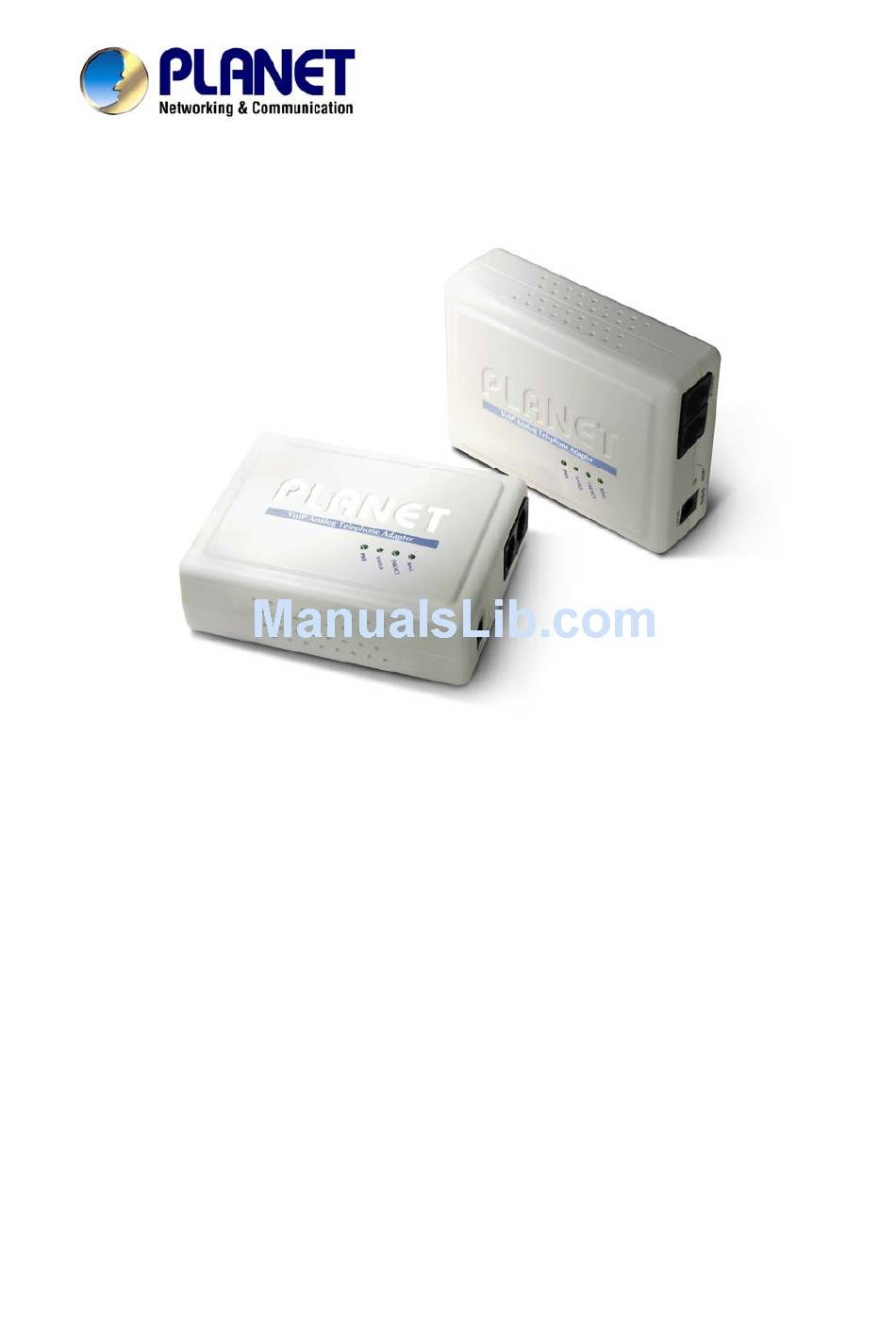

VoIP Analog Telephone Adapter
ATA-150/ATA-150S
User's manual
Version 1.0.2
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATA-150 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet ATA-150

Summary of Contents for Planet ATA-150

  • Page 1 VoIP Analog Telephone Adapter ATA-150/ATA-150S User’s manual Version 1.0.2 - 1 -...

  • Page 2: Ce Mark Warning

    Copyright Copyright (C) 2009 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
  • Page 3 Revision User’s Manual for PLANET VoIP Analog Telephone Adapter: Model: ATA Rev: 1.0.2 (2009, July) Part No. EM-ATA150 Series - 3 -...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter 1 ........................... 6 Introduction ..........................6 Overview............................... 6 Package Content ............................7 Physical Details ............................7 Physical Interface & Button ......................... 8 Chapter 2 Preparations & Installation................. 10 Physical Installation Requirement......................10 Keypad commands ..........................11 Chapter 3 TCP/IP Settings.....................
  • Page 5 Call Transfer............................47 3-Way Conference ..........................47 Call Waiting............................47 Switch the Default Proxy ........................48 Auto Update firmware by manual (Keypad) ..................48 Appendix C Frequently Asked Questions List ..................49 Appendix D ATA Specifications ........................ 50 - 5 -...

  • Page 6: Chapter 1

    Chapter 1 Introduction Overview Based on years of VoIP manufacturing experiences, PLANET Technology VoIP total solutions are known for advanced implementation of standards based telephony with mass deployment capability. Cost-effective, easy-to-install and simple-to-use, the PLANET ATA-150/ATA-150S VoIP Phone Adapter (“ATA” in the following term) converts standard telephones to IP-based networks. The service providers and enterprises can offer users traditional and enhanced the telephony communication services via the existing broadband connection to the Internet or corporation network.

  • Page 7: Package Content

    Physical Details The following figure illustrates the each panel of SIP ATA. ATA-150: SIP Analog Telephone Adapter (1 x RJ-45, 1 x RJ-11) ATA-150S: 2-Port FXS SIP Analog Telephone Adapter (1 x RJ-45, 2 x RJ-11) Front Panel of ATA-150...

  • Page 8: Physical Interface & Button

    Front Panel of ATA-150S Left / Right Panel of ATA-150S Physical Interface & Button Pressing 1 second to reboot machine. RESET Pressing 5 seconds to reset to the factory default setting 12V DC Power input outlet 12V DC RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable.
  • Page 9 LED Display of ATA-150 Power is supplied to the device. OFF: the device is disconnected to LAN. LNK/ACT ON: the device is connected to LAN. OFF: the phone is idle. Phone ON: the phone is in use (off-hook). Blinking: the phone is ringing.

  • Page 10: Chapter 2 Preparations & Installation

    Chapter 2 Preparations & Installation Physical Installation Requirement This chapter illustrates basic installation of ATA analog Phone Adapter (“ATA” in the following term) • Network cables. Use standard 10/100Base-TX network (UTP) cables with RJ-45 connectors. • TCP/IP protocol must be installed on all PCs. For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface PLANET ATA provides GUI (Web based, Graphical User Interface) and utility for machine management...

  • Page 11: Keypad Commands

    Web configuration access You will connect to SIP ATA via your web browser automatically. ATA will prompt for logon username / password, please enter: admin / 123 to continue machine administration. ATA will prompt for logon username/password, please enter: admin / 123 to continue machine administration.
  • Page 12 Use the * (star) key #113xxx*xxx*xxx* Set Network Mask when entering a decimal Must set Static IP first. xxx# point. Use the * (star) key #114xxx*xxx*xxx* Set Gateway IP Address when entering a decimal Must set Static IP first. xxx# point.
  • Page 13 Following keypad commands can be used to set up the main function . IVR Menu Choice Machine operation Parameter(s) Notes 01: G.711 u-Law, 02: G.711 a-Law, 03: G.729, You can set the codec you 04: G.723 6.3K, 05: want to the first priority. #130+first Set First Priority Codec G.723 5.3K, 06: G.726...

  • Page 14: Chapter 3 Tcp/Ip Settings

    Chapter 3 TCP/IP Settings Configuring and monitoring your ATA from web browser The ATA integrates a web-based graphical user interface that can cover most configurations and machine status monitoring. Via standard web browser, you can configure and check machine status from anywhere around the world.

  • Page 15: Lan Ip Address Configuration Via Web Configuration Interface

    When users login the web page, users can see the Phone Adapter system information like firmware version, company…etc in this main page. VoIP Phone Adatper main page LAN IP address configuration via web configuration interface This page is used to configure the parameters for Internet network which connects to the LAN port of your ATA.
  • Page 16 Connection Type Description – Static IP Static IP Set LAN interface as Static IP mode. IP Address LAN IP Address of the ATA Default : 192.168.0.1 Subnet Mask LAN mask of the ATA Default : 255.255.255.0 Default Gateway Gateway of the ATA Default : 192.168.0.254 MTU Size Set MTU (maximum transmission unit) size...
  • Page 17 Connection Type Description – DHCP Client DHCP Client Set LAN interface as DHCP mode. Select to attain DNS automatically from server or user wants to Attain DNS Automatically / Set DNS Manually set DNS manually. Default : Set DNS Manually - 17 -...
  • Page 18 Connection Type Description – PPPoE PPPoE Set LAN interface as PPPoE mode. User Name Set user name of PPPoE connection Default : Null Password Set password of PPPoE connection Default : Null Service Name Set Service Name of PPPoE for description Default : Null Connection Type Set PPPoE connection type to be Continuous/ Connect on...
  • Page 19 Idle Time Set PPPoE connection idle time for Connect on Demand. Default : 5 LAN Physical Set IP type if Dynamic IP or Static IP at PPPoE connection. Default : Dynamic IP IP Address LAN IP Address of the ATA at Static IP type. Default : 0.0.0.0 Subnet Mask LAN Mask of the ATA at Static IP type.
  • Page 20 PPTP Set LAN interface as PPTP mode. Mode Set IP type if Dynamic IP or Static IP at PPTP connection. Default : Dynamic IP IP Address LAN IP Address of the ATA at Static IP type. Default : 0.0.0.0 Subnet Mask LAN Mask of the ATA at Static IP type.

  • Page 21: Chapter 4 Voip Settings

    Chapter 4 VoIP Settings Phone 1 / Phone 2 (ATA-150S) Here is to set VoIP Phone 1 and Phone 2 (ATA-150S) related configurations. - Default Proxy Each Phone port has support register two different Proxy Select Default Proxy Servers. When select one of Proxy as default, ATA will use this account for making outgoing call.
  • Page 22 Display Name Set ATA Phone display name for caller ID information. Default : Null Number Set registering Phone number. Default : Null If Proxy server needs registration authentication please input Login ID Login ID here. Default : Null If Proxy server needs registration authentication please input Password password here.
  • Page 23 - NAT Traversal Stun Check to enable STUN function. Default : Disable If user enables STUN function, please input STUN Server Stun Server Addr address. Default : Null Stun Server Port If user enables STUN function, please input STUN Server port. Default : 3478 - SIP Advanced SIP Port...
  • Page 24 SIP INFO Duration (ms) If user select DTMF as SIP INFO type, here can modify SIP INFO duration. ATA will send out DTMF as this duration. Default : 250 Call Waiting Check to enable Call Waiting function. Default : Enable Check to enable call waiting caller ID function.
  • Page 25 No Answer Forward to Check to enable no answer forward function. When phone is not answered for a period of time, incoming call will be forwarded to assigned number. Default : Off No Answer Number Enter assigned number for no answer forward. Default : Null Set no answer time.
  • Page 26 - Abbreviated Dial (Phonebook) Abbreviated Name Abbreviated Dial (Phonebook) access code. Input this number and followed by # can dial out assigned phone number. Phone Number Set phone number for ATA to make speed dial. - Dial Plan Replace prefix code Select to enable (On) or disable (Off) prefix replace function.
  • Page 27 Auto Prefix If user set Auto Prefix number, all number dialed out will be added with this prefix number. Available parameters are “0~9”, “#”, “*”.For example, user set Auto Prefix as 02, number 87654321 will be dial out as 02 87654321. Default : Null User can set special access code to disable Auto Prefix function in Prefix Unset Plan...
  • Page 28 T.38 Check to enable T.38 function. Default : Disable T.38 Port Set T.38 port for FAX. Default : 9008 - Hot Line Use Hot Line Hot Line Number Default : Disable Hot Line Number Set the destination number for Hot Line function. Default : Null - DND (Don’t Disturb) DND Mode...
  • Page 29 - Alarm Enable If set up as Enable, the telephone will ringed up at the specific time. Default : Disable Time It can set up the system prompt time with 24 hours. Default : 0:0 - DSP Check to enable VAD (Voice Activity Function) function. Default : Disable Caller ID Mode Select caller ID mode as FSK(Bellcore), FSK(ETSI), FSK(BT),...

  • Page 30: Tone

    Reverse Polarity before Caller Check to send reverse polarity before caller ID. Default : Disable Short Ring before Caller ID Check to send short ring before caller ID. Default : Disable Dual Tone before Caller ID Check to send dual tone before caller ID. Default : Disable Caller ID Prior First Ring Check to send caller ID before first ring.
  • Page 31 - Select Country Custom Tone Select Custom tone number to set Tone Parameters. Default : Custom1 - Tone Parameters Freq1 Set first set of tone frequency in Hz. Default : 0 Set second set of tone frequency in Hz. This frequency is Freq2 optional.

  • Page 32: Other

    Other - Function Key Call Transfer Set call transfer function key. Default : *1 - Dial Option Auto Dial Time Set Auto dial time. When user finish input number after this time, ATA will dial out immediately. If the call is ended by “#”, the call will be send immediately and you do not need to wait for the Auto Dial time.

  • Page 33: Auto Config

    Auto Config - Auto Config ATA supports HTTP, TFTP and FTP auto configuration function in total. - Auto Firmware Update The ATA can update new firmware file automatically by the Auto Firmware Update function. - 33 -...
  • Page 34 There are TFTP / FTP and HTTP three ways to provide the auto Mode upgrade function. TFTP Server Address Input the TFTP Server address, and it could input the IP or Domain Name form. HTTP Server Address Input the HTTP Server address, and it could input the IP or Domain Name form.

  • Page 35: Chapter 5 Management

    Chapter 5 Management Status In this page can show the current status and some basic settings of the ATA. Statistics This page shows the packet counters for transmission and reception regarding to Ethernet networks. - 35 -...

  • Page 36: Ddns

    DDNS Dynamic DNS is a service, which provides you with a valid, unchanging, internet domain name (an URL) to go with that (possibly ever-changing) IP-address. Before setting this page, you should click below link to DynDNS or TZO to apply an account for DDNS. Check to enable DDNS function.

  • Page 37: Time Zone Setting

    Time Zone Setting You can maintain the system time by synchronizing with a public time server over the Internet. Current Time Input current time manually. Time Zone Select Select local time zone according to location. Enable client Check to enable NTP update. Once this function is enabled, ATA update will automatically update current time from NTP server.

  • Page 38: Denial-Of-Service

    Denial-of-Service A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service. Enable DoS Prevention Check to enable DoS function. User may set other related configurations about DoS below. - 38 -...

  • Page 39: Log

    This page can be used to set remote log server and show the system log. Enable Log Check to enable log function. System all/Dos Select which log you want to check. Related information will be shown at below. Upgrade Firmware This page allows you upgrade the ATA firmware to new version.

  • Page 40: Save / Reload Settings

    Save / Reload Settings This page allows you save current settings to a file or reload the settings from the file which was saved previously. Besides, you could reset the current configuration to factory default. Save Settings to File Save current settings to a file. Load Settings from File Browse a file and upload to reload settings.

  • Page 41: Reboot

    Reboot Press Reboot to reboot system. Please wait for a few minutes and reload web page again. Logout This page is used to logout. - 41 -...

  • Page 42: Appendix A Voice Communication Samples

    Appendix A Voice communication samples There are several ways to make calls to desired destination in ATA. In this section, we’ll lead you step by step to establish your first voice communication via keypad and web browsers operations. Peer to peer (P2P) mode Assuming there are two ATA in the network the IP address are 192.168.0.1 and 192.168.0.2 ATA-A ATA-B...

  • Page 43: Case 3: Sip Proxy Mode

    Test the scenario: 1. Pick up the telephone set on ATA-150S port 1, and you should be able to hear the dial-tone 2. Press the keypad: 192*168*0*1**5061# shall be able to connect to the ATA-150S port 2 3. Then the telephone set in ATA-150S port 2 should ring. Please repeat the same dialing steps on port 2 to establish the first voice communication from ATA-150S If the IP address of the remote calling party is known, you may directly make calls via its IP address and end...

  • Page 44: Case 4: Call Forward Feature_Example 1

    STEP 3: Repeat the same configuration steps on ATA-B, and check the machine registration status, make sure the registrations are completed. STEP 4: To verify the VoIP communication, please pick up the telephone. Dial the destination number to make call between SIP clients. For example, ATA-A (with number 100) with keypad number 200 to ATA-B, or reversely makes calls from SIP client (ATA-B) to the number 100 (ATA-A).
  • Page 45 Machine configuration on the ATA: Please log in ATA_A via web browser, browse to the Phone 1/2 menu and select the Call Forward config menu. In the setting page, please enable the All Forward function and fill in the number of ATA_B in All Fwd No. field, then the sample configuration screen is shown below: Test the scenario: 1.

  • Page 46: Case 5: Call Forward Feature_Example 2

    Case 5: Call Forward Feature_Example 2 In this example, there are three ATA and connect with Peer to Peer mode. ATA _A had set Call Forward function to ATA _B. Machine configuration on the ATA: Please log in ATA_A via web browser, browse to the Phone 1/2 menu and select the Call Forward config menu.

  • Page 47: Appendix B The Method Of Operation Guide

    Appendix B The method of operation guide In this section, we’ll introduce the features method of operation, and lead you step by step to establish these features. Call Transfer A. Blind Transfer 1. B call to A and they are in the process of conversation. 2.

  • Page 48: Switch The Default Proxy

    Switch the Default Proxy ATA can register to two different SIP Proxies at the same time. It can receive any one of different SIP accounts incoming call, and it can switch to any one SIP accounts for making calls through input the switch code.

  • Page 49: Appendix C Frequently Asked Questions List

    Frequently Asked Questions List Appendix C If your SIP ATA is not functioning properly, you can refer to this chapter first for sample troubleshooting before contacting your dealer. This can save your time and effort but if the symptoms persist, please consult your dealer.

  • Page 50: Appendix D Ata Specifications

    Appendix D ATA Specifications Product SIP Analog Telephone Adapter Model ATA-150 ATA-150S Hardware 1 x 10/100Mbps RJ-45 port 1x RJ-11 connection 2x RJ-11 connection Protocols and Standard Standard SIP 2.0 (RFC3261), STUN (RFC 3489), UPnP, MD5 for SIP authentication (RFC 2069 / RFC 2617) Voice codec G.711, G.723, G.729...

  • Page 51: Ec Declaration Of Conformity

    *Model Number : ATA-150S * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (89/336/EEC,92/31/EEC,93/68/EEC).
